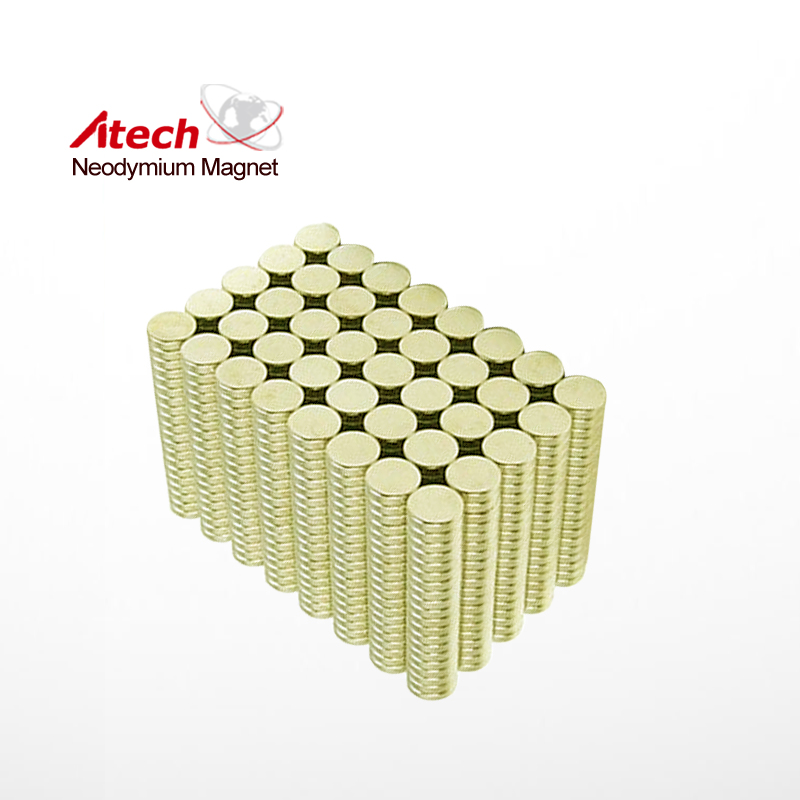

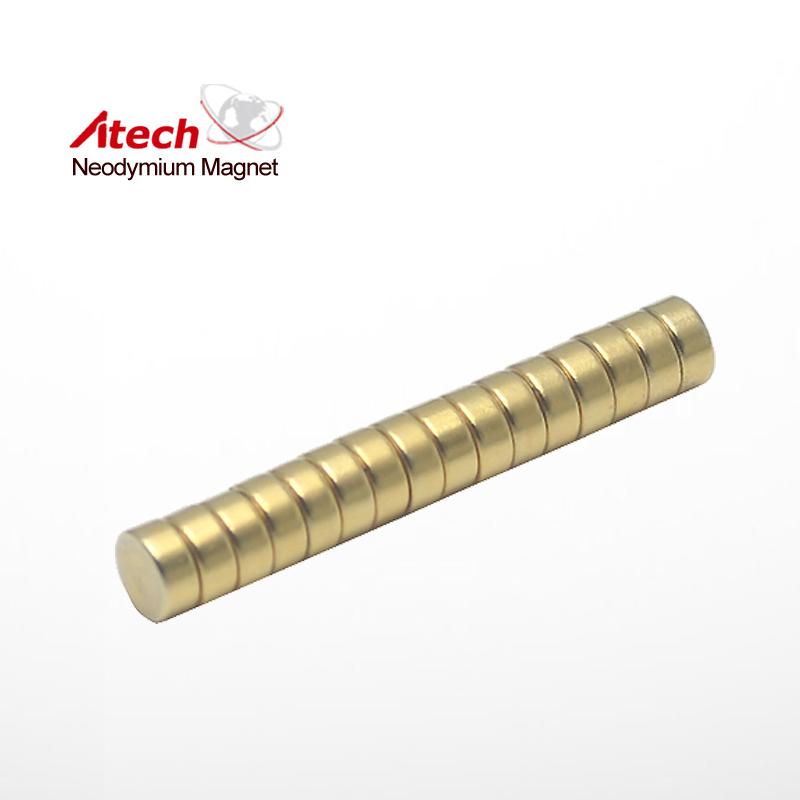

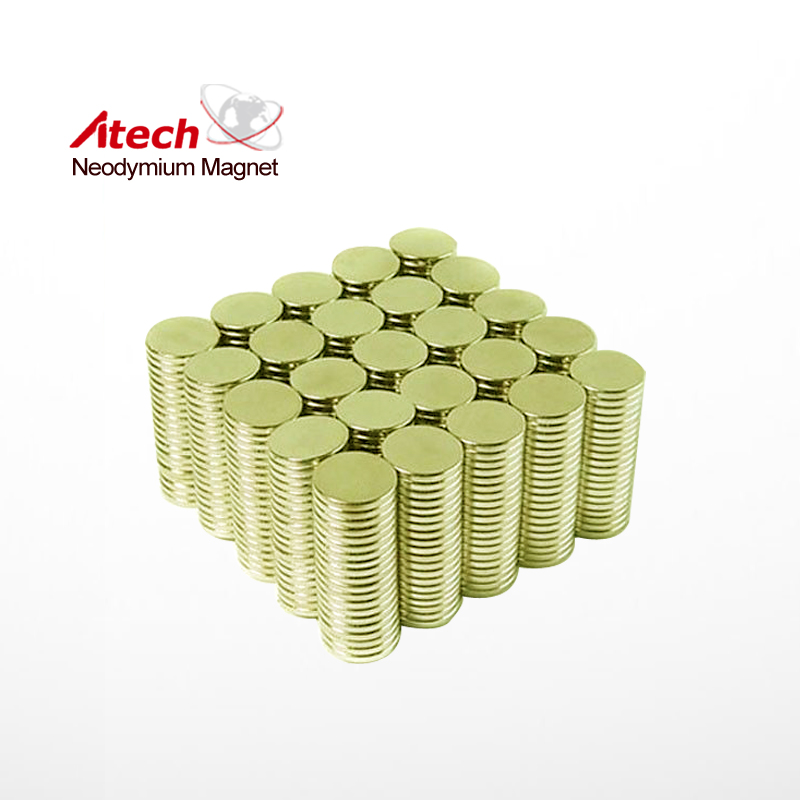

Gold Coated N48H Neodymium Magnet Disc

Similar Products

Strong Round Magnet N42 3/8” "SKU Code: ATECHDI003 Dimensions: D3/8""x1/16"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 1.2 gBr Max/Gauss rating: 13200 GSMa...
Powerful Disc Magnet N42 5/16” "SKU Code: ATECHDI002 Dimensions: 5/16""x1/16 Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.480 gBr Max/Gauss rating: 13200 GSMa...
Grade N42 Neodymium Disc Magnets D10*3mm SKU Code: ATECHDI001 Dimensions: D10 * 3mm Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.480 gBr Max/Gauss rating: 13200 GSMax O...

Gold Coated N48H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Gold + Copper + Gold (Zn-Cu-Zn). The maximum operating temperature of Gold Coated N48H Neodymium Magnet Disc is up to 120 degrees C.

Material	NdFeB
Grade	N48H
Remanence Br（kGs）	Max:14.3 Min:13.6
Plating	Au-Cu-Au (gold)
Shape	Disc
Coercive force(kOe) Min.	12.5
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:49 Min:46
Max Temp (℃)	120
