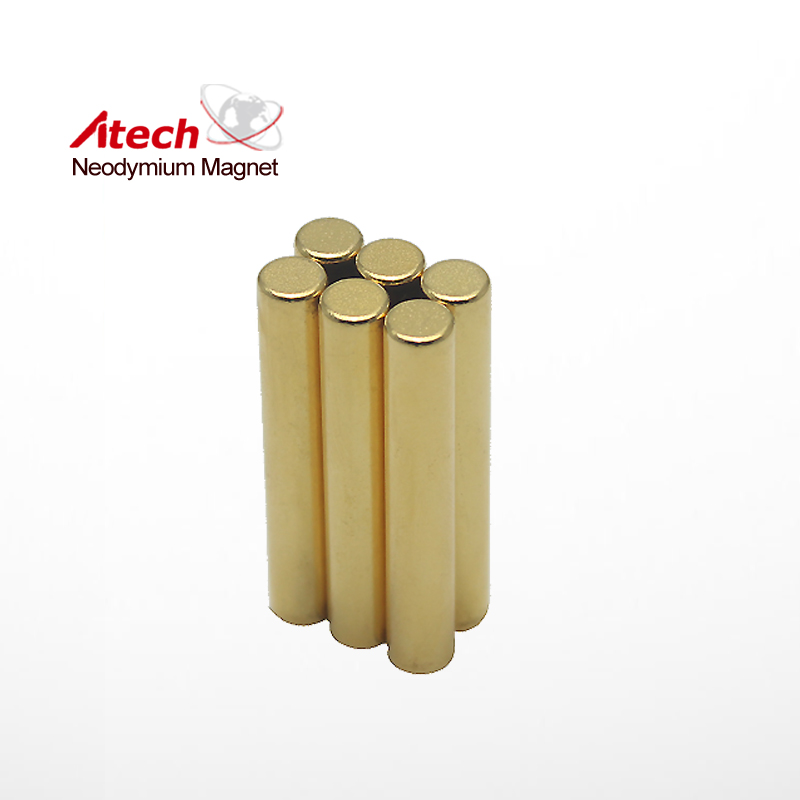

Gold Coated N42H Neodymium Magnet Cylinder

Similar Products

1/2 Inch x5/8 Inch Round Car Magents Custom Round Magnet N42 For Sale SKU Code: ATECHDI015 Dimensions: D1/2""x 5/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 20 gBr Max/Gauss rating: 13200 GSMax O...
Round Magnet N52 1/2 inch x1/8 inch Small Flat Magnet Disc SKU Code: ATECHDI011 Dimensions: D1/2""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 14800 GSMax Ope...
Neodymium Disk Magnets N42 Super Strong Magnet 1/2 inch x1/2 inch Cyliner Magnets For Sale SKU Code: ATECHDI013 Dimensions: D1/2""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 12 gBr Max/Gauss rating: 13200 GSMax Op...

Material	NdFeB
Grade	N42H
Remanence Br（kGs）	Max:13.2 Min:12.8
Plating	Au-Cu-Au (Gold)
Shape	Cylinder
Coercive force(kOe) Min.	12
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:43 Min:40
Max Temp (℃)	120

Application Area
