Nickel Coated N33H Neodymium Magnet Disc

Nickel Coated N33H Neodymium Magnet Disc
Similar Products
  • Round Car Magnets N52 1/2 inch x1/10 inch Circle Magnet Disc
    Round Car Magnets N52 1/2 inch x1/10 inch Circle Magnet Disc SKU Code: ATECHDI009 Dimensions: D1/2""x1/10"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 14800 GSMax Op...
  • Nickel Coated N48 Neodymium Magnet Cylinder
    Nickel Coated N48 Neodymium Magnet Cylinder MaterialNdFeBGradeN48Remanence Br(kGs)Max:14.2Min:13.8PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.6Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:49Min:46Max Temp (℃)8...
  • Industrial Magnet N52 3/8”
    Industrial Magnet N52 3/8” SKU Code: ATECHDI004 Dimensions: D3/8""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.6 gBr Max/Gauss rating: 14800 GSMax ...

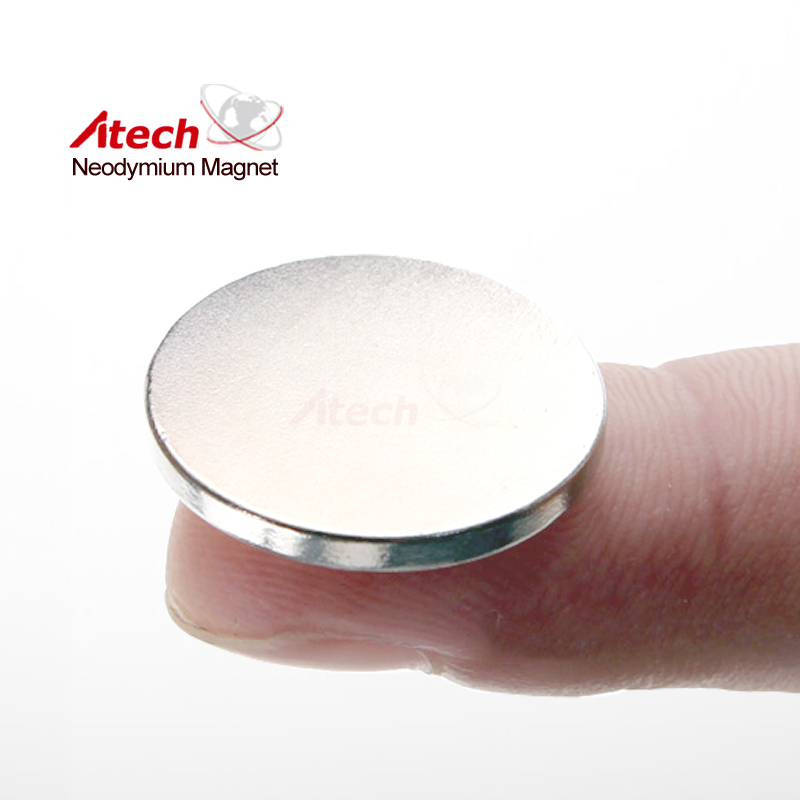

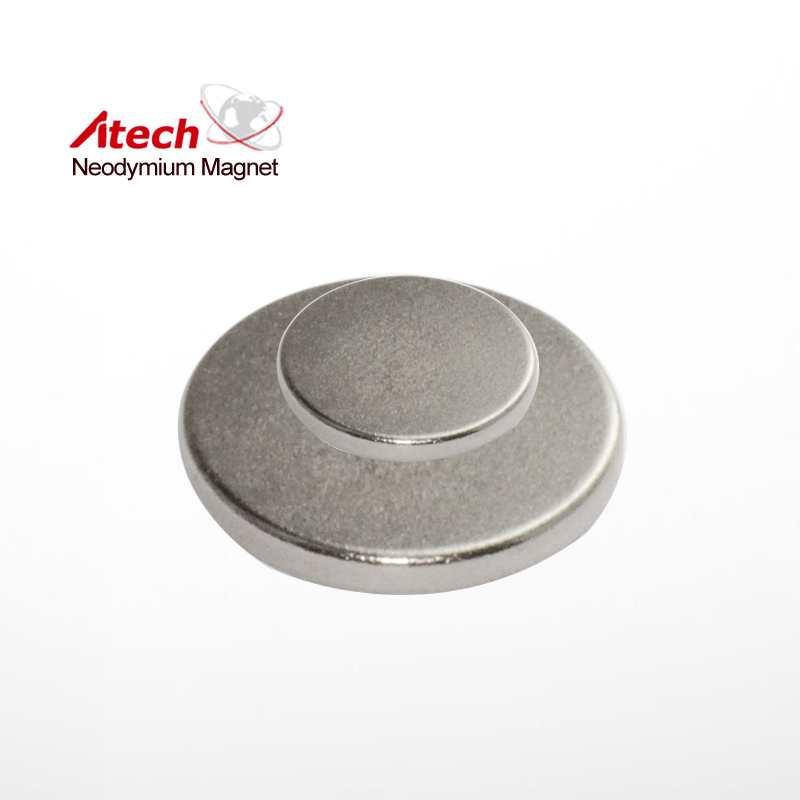

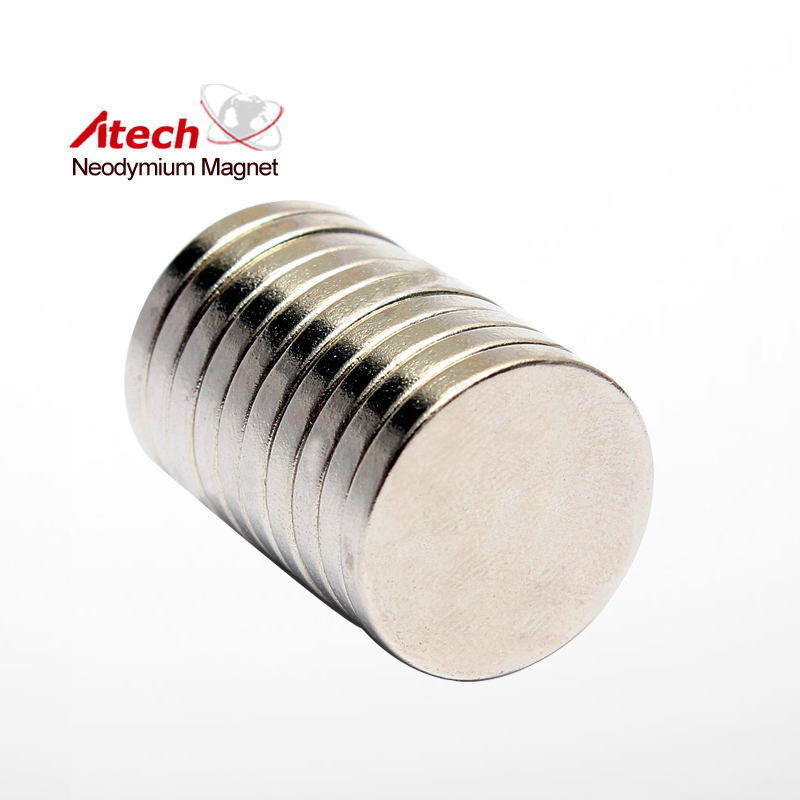

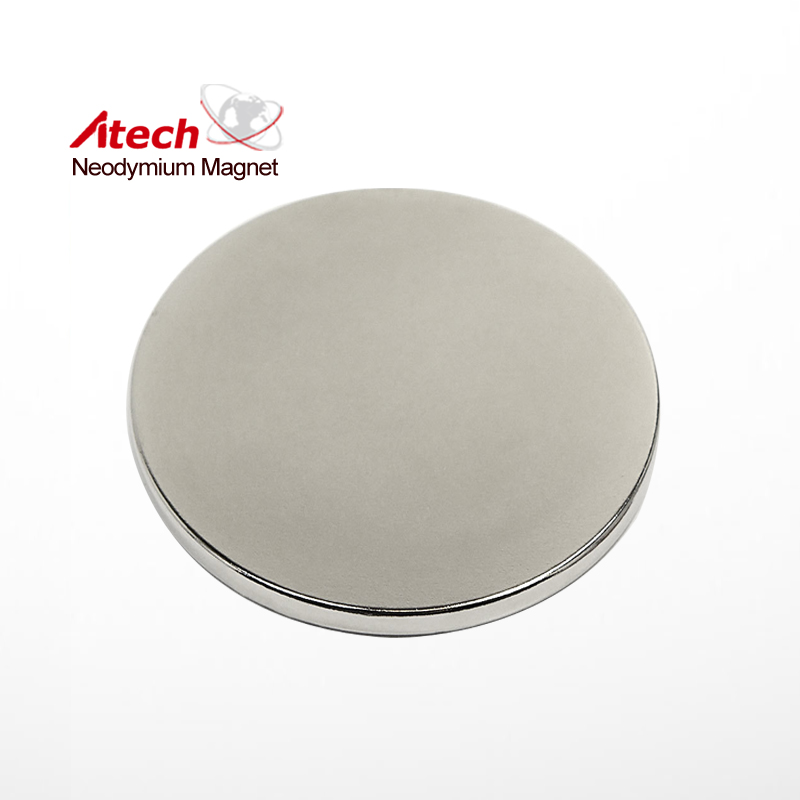

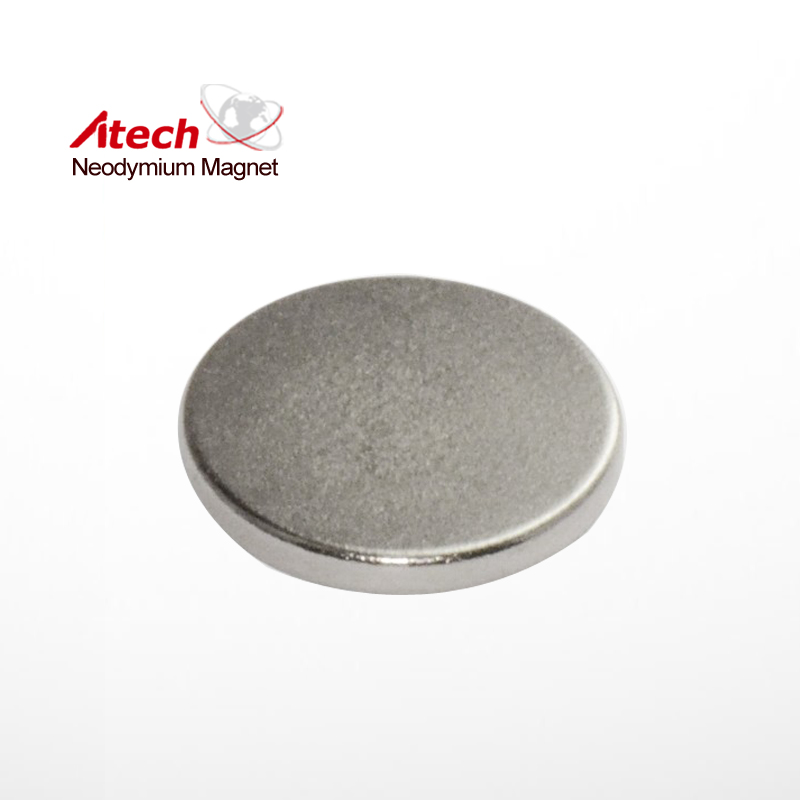

Nickel Coated N33H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N33H Neodymium Magnet Disc is up to 120 degrees C.

Material NdFeB
Grade N33H
Remanence Br(kGs) Max:11.7
Min:11.3
Plating Ni-Cu-Ni (Nickel)
Shape Disc
Coercive force(kOe) Min. 10.5
Intrinsic Coercive force (kOe) Min. 17
Max energy product (MGOe) Max:34
Min:31
Max Temp  (℃) 120
