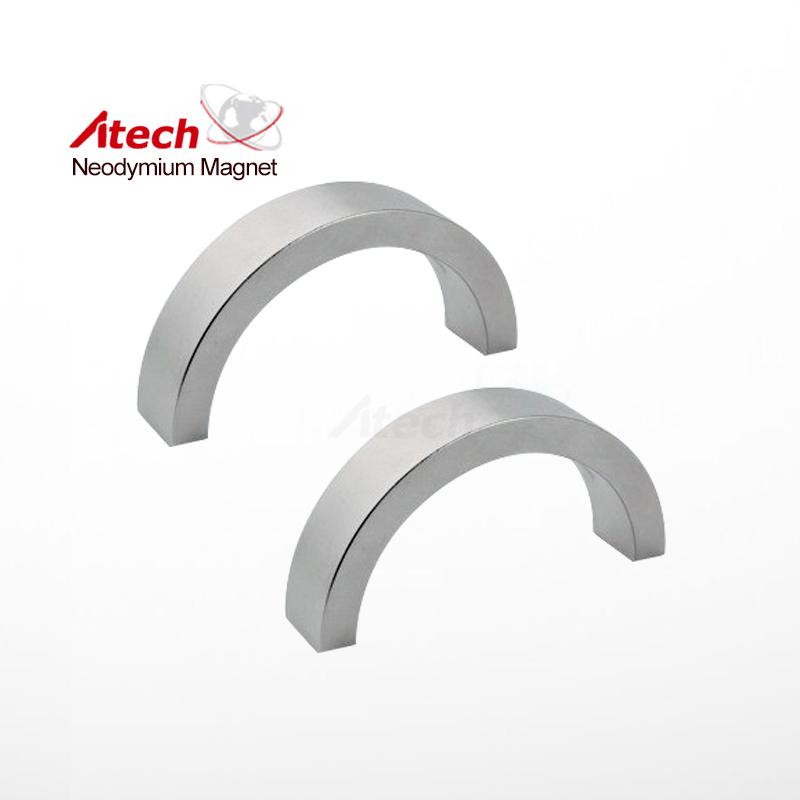

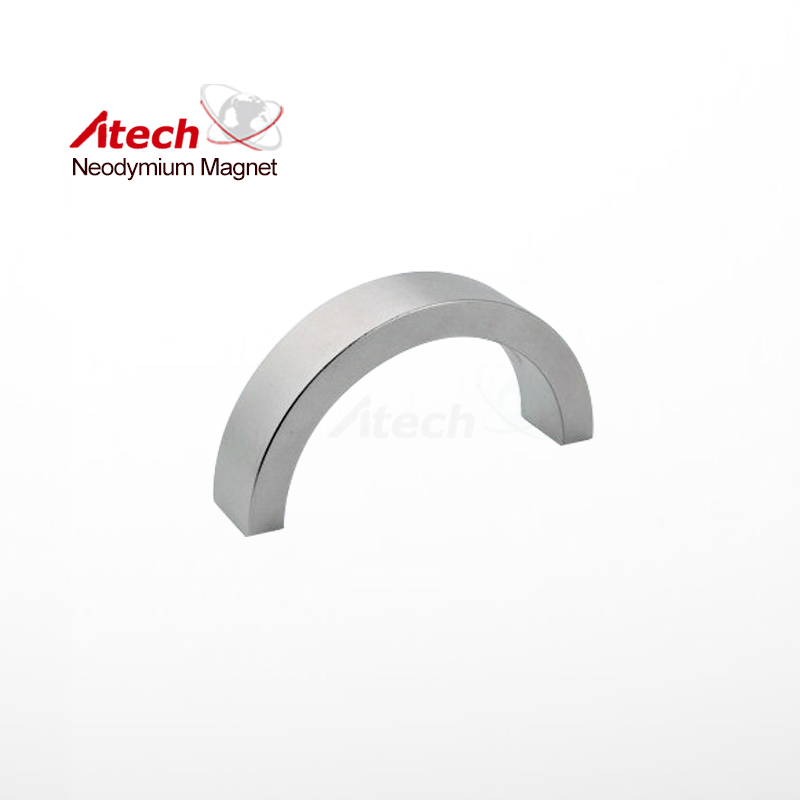

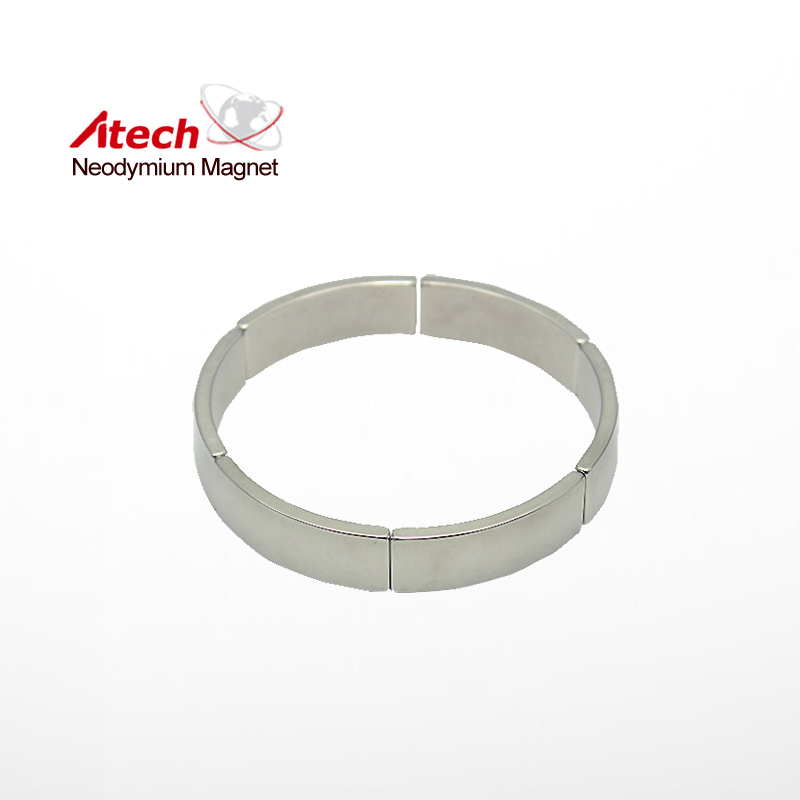

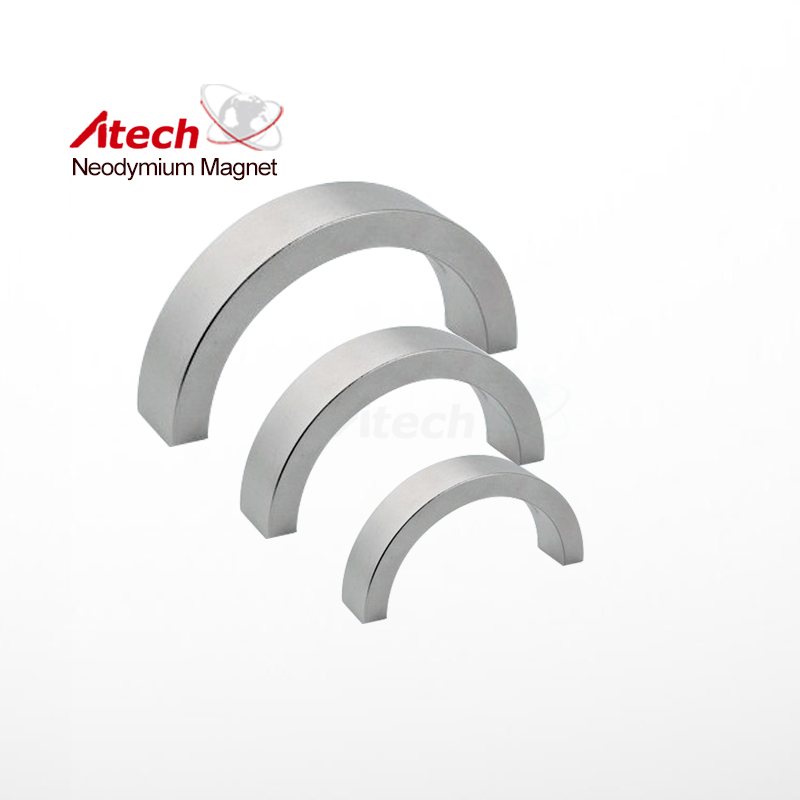

Nickel Coated N38 Neodymium Magnet Arc

Nickel Coated N38 Neodymium Magnet Arc
Similar Products
  • Nickel Coated N35M Neodymium Magnet Disc
    Nickel Coated N35M Neodymium Magnet Disc Nickel Coated N35M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
  • Nickel Coated N52 Neodymium Magnet Arc
    Nickel Coated N52 Neodymium Magnet Arc MaterialNdFeBGradeN52Remanence Br(kGs)Max:14.8Min:14.3PlatingNi-Cu-Ni (Nickel)ShapeArcCoercive force(kOe) Min.10Intrinsic Coercive force (kOe) Min.11Max energy product (MGOe)Max:51Min:48Max Temp (℃)80
  • Nickel Coated N45H Neodymium Magnet Arc
    Nickel Coated N45H Neodymium Magnet Arc MaterialNdFeBGradeN45HRemanence Br(kGs)Max:13.7Min:13.2PlatingNi-Cu-Ni (Cu)ShapeArcCoercive force(kOe) Min.12.1Intrinsic Coercive force (kOe) Min.17Max energy product (MGOe)Max:46Min:43Max Temp (℃)120
Material NdFeB
Grade N38
Remanence Br(kGs) Max:12.5
Min:12.2
Plating Ni-Cu-Ni (Nickel)
Shape Arc
Coercive force(kOe) Min. 11.3
Intrinsic Coercive force (kOe) Min. 12
Max energy product (MGOe) Max:39
Min:36
Max Temp  (℃) 80
