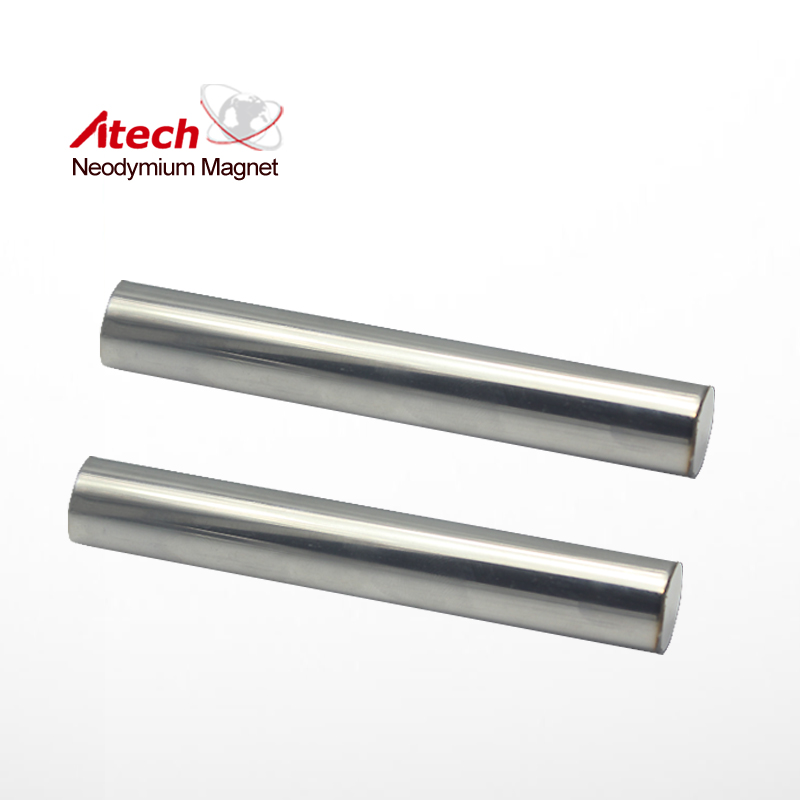

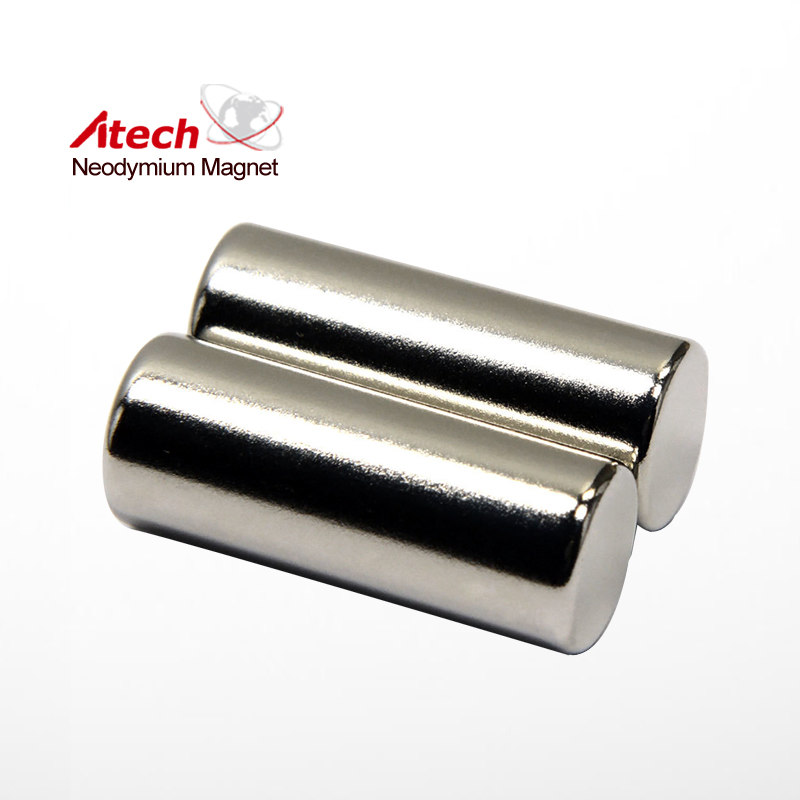

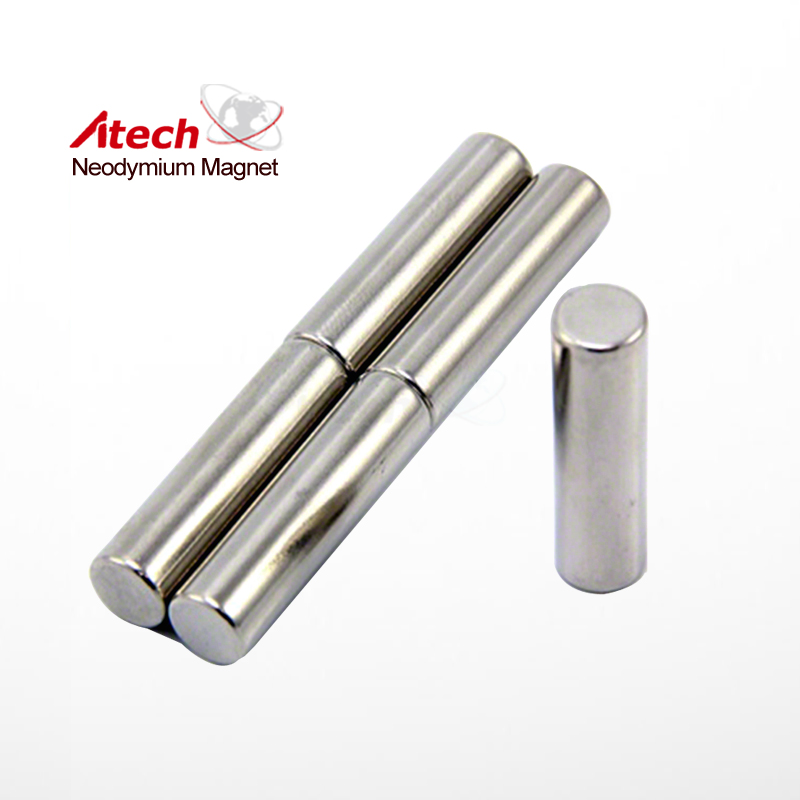

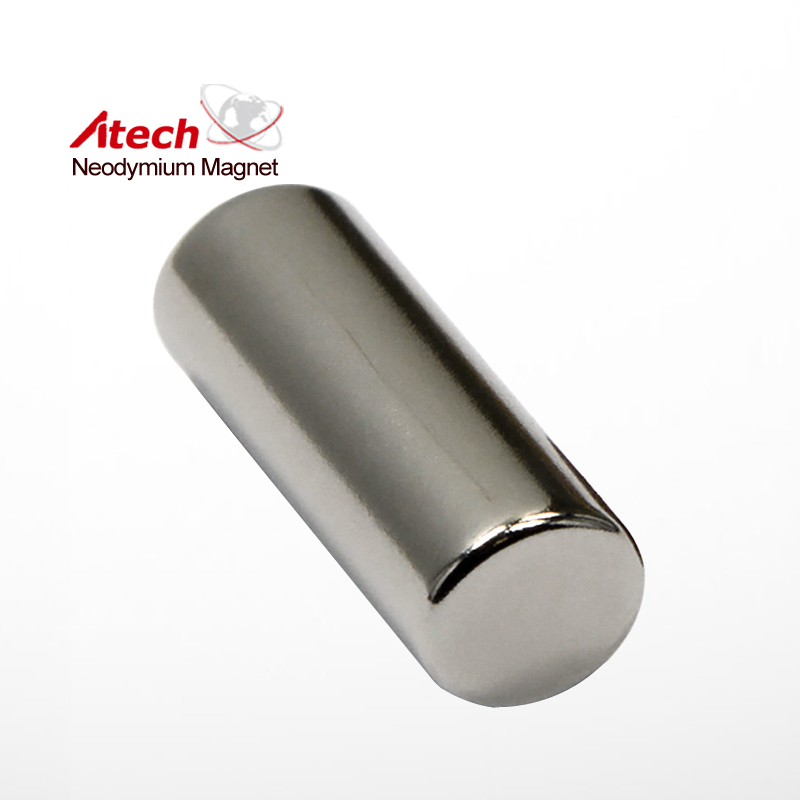

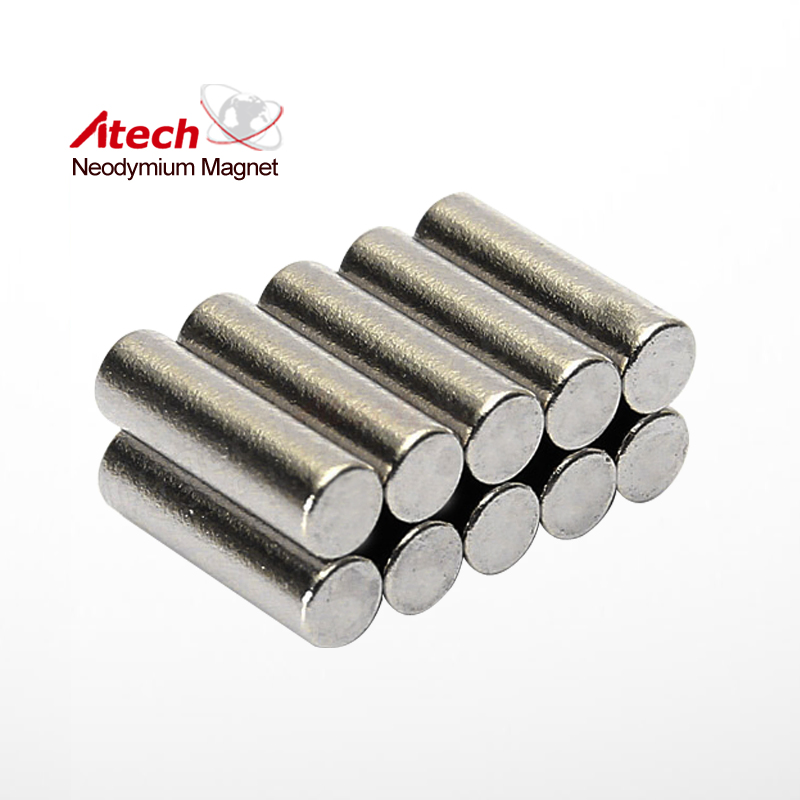

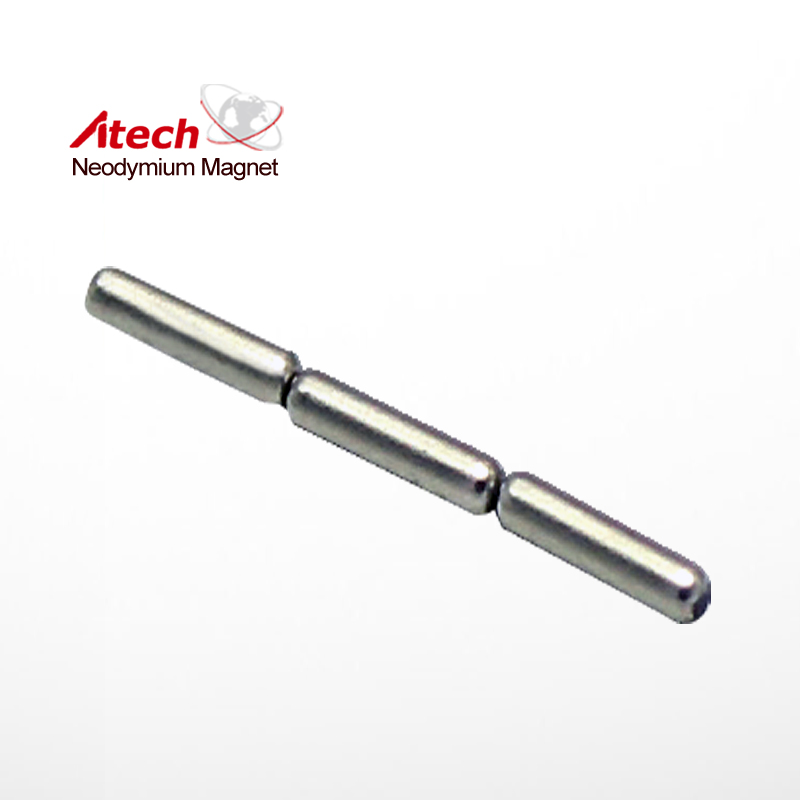

Nickel Coated N38M Neodymium Magnet Cylinder

Similar Products

Nickel Coated N50 Neodymium Magnet Disc Nickel Coated N50 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated ...
Circle Magnet N52 Magnet 1/2 inch x1/16 inch Round Magnets For Sale SKU Code: ATECHDI008 Dimensions: D1/2""x1/16"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 1.7 gBr Max/Gauss rating: 14800 GSMax...
3/4 inch x 1/8 inch Circle Magents Industrial Magnets N42 Custom Round Magnet SKU Code: ATECHDI016 Dimensions: D3/4""x 1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Op...

Material	NdFeB
Grade	N38M
Remanence Br（kGs）	Max:12.5 Min:12.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Cylinder
Coercive force(kOe) Min.	11.3
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:39 Min:36
Max Temp (℃)	100

Application Area
