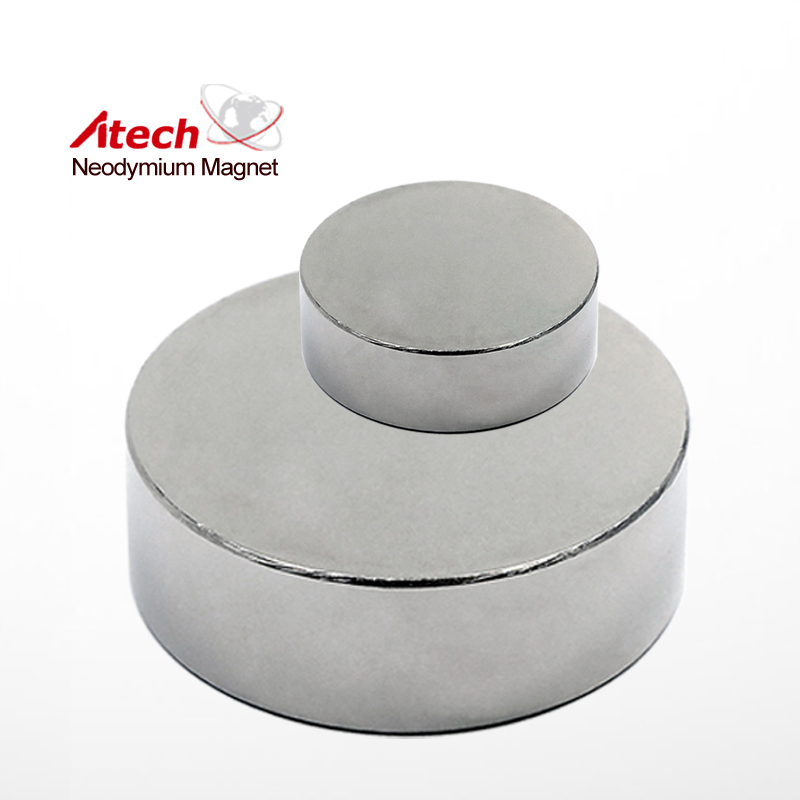

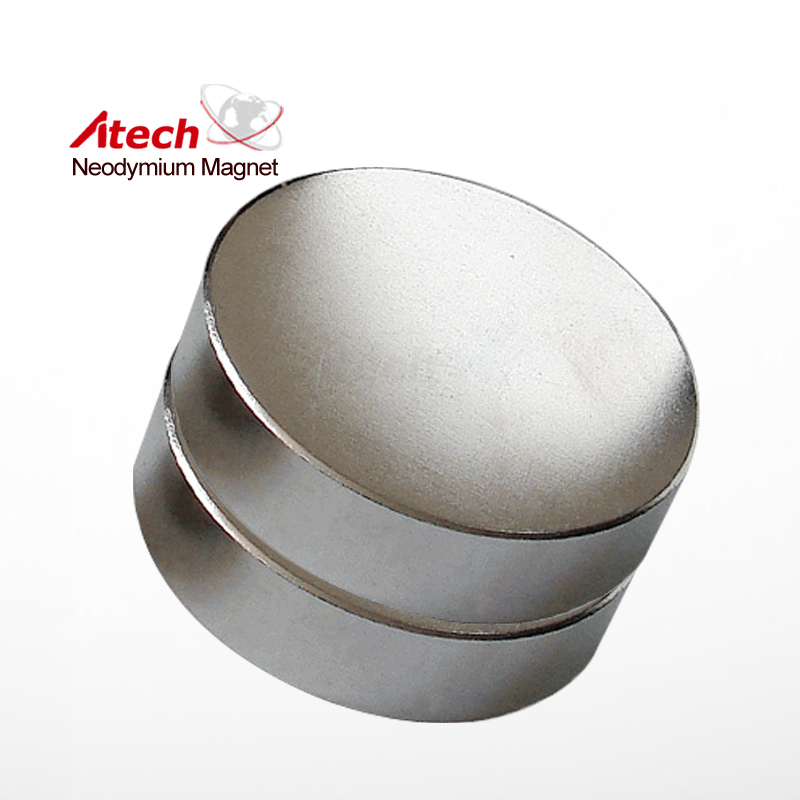

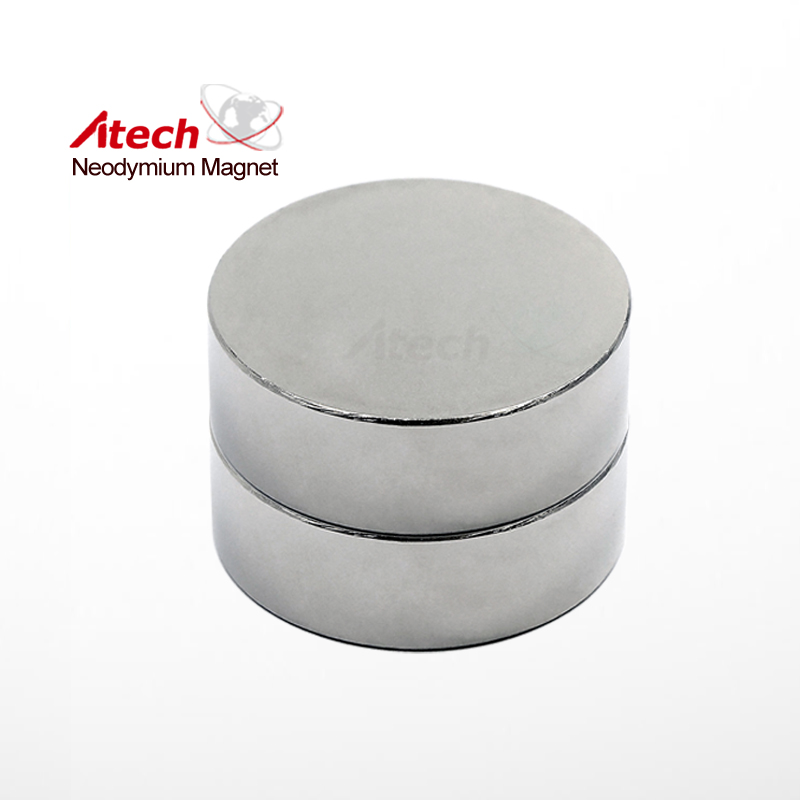

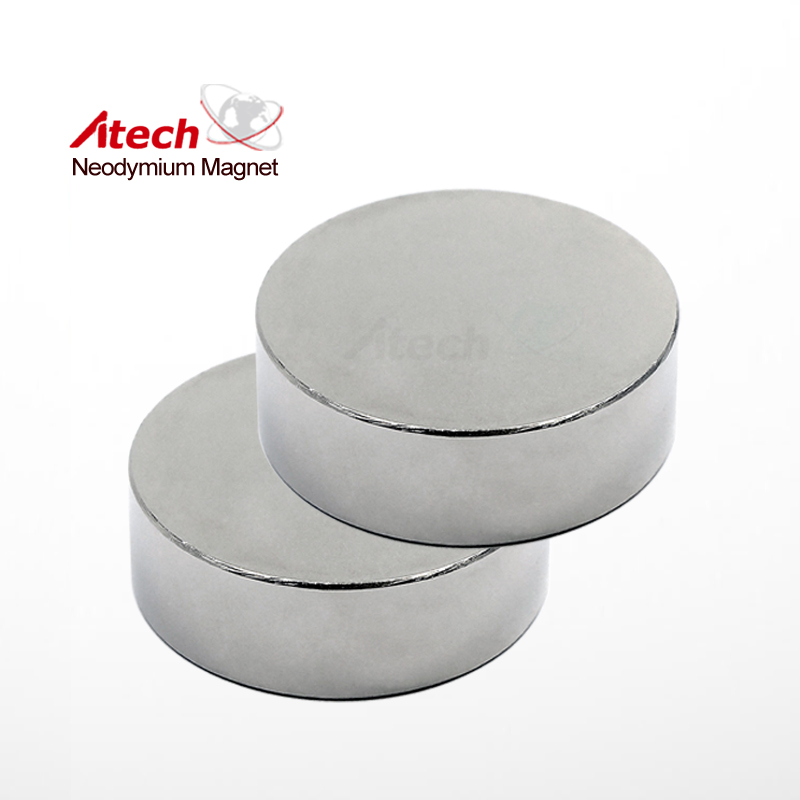

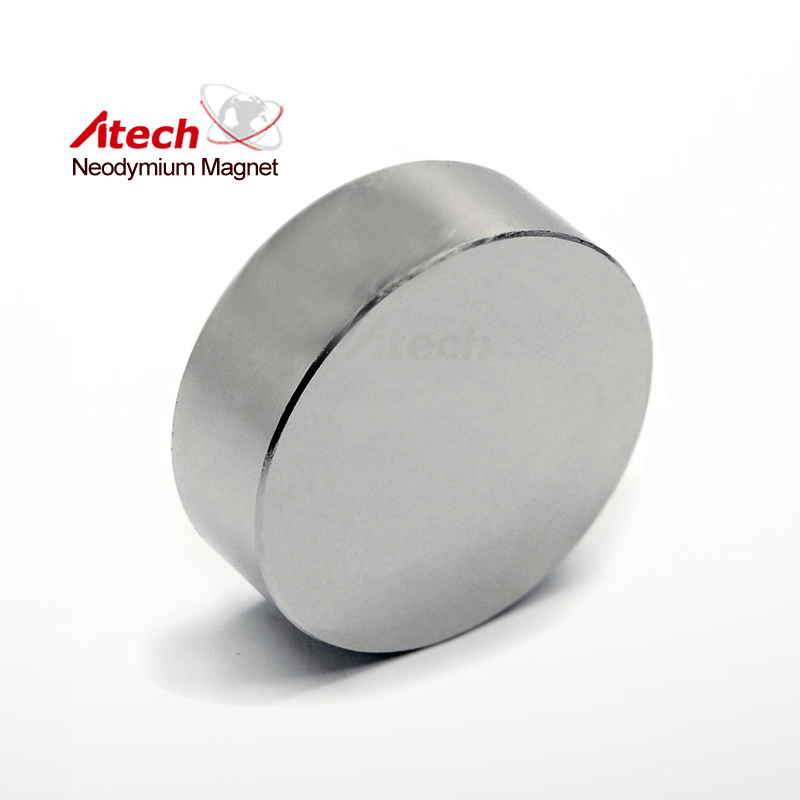

Nickel Coated N38M Neodymium Magnet Disc

Similar Products

Round Car Magnets N52 1/2 inch x1/10 inch Circle Magnet Disc SKU Code: ATECHDI009 Dimensions: D1/2""x1/10"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 14800 GSMax Op...
Nickel Coated N45M Neodymium Magnet Cylinder MaterialNdFeBGradeN45MRemanence Br（kGs）Max:13.8Min:13.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.12.5Intrinsic Coercive force (kOe) Min.14Max energy product (MGOe)Max:46Min:43Max Temp (℃)...
Nickel Coated N40 Neodymium Magnet Cylinder MaterialNdFeBGradeN40Remanence Br（kGs）Max:12.8Min:12.5PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.4Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:41Min:38Max Temp (℃)8...

Nickel Coated N38M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N38M Neodymium Magnet Disc is up to 100 degrees C.

Material	NdFeB
Grade	N38M
Remanence Br（kGs）	Max:12.5 Min:12.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	11.3
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:39 Min:36
Max Temp (℃)	100

Application Area
