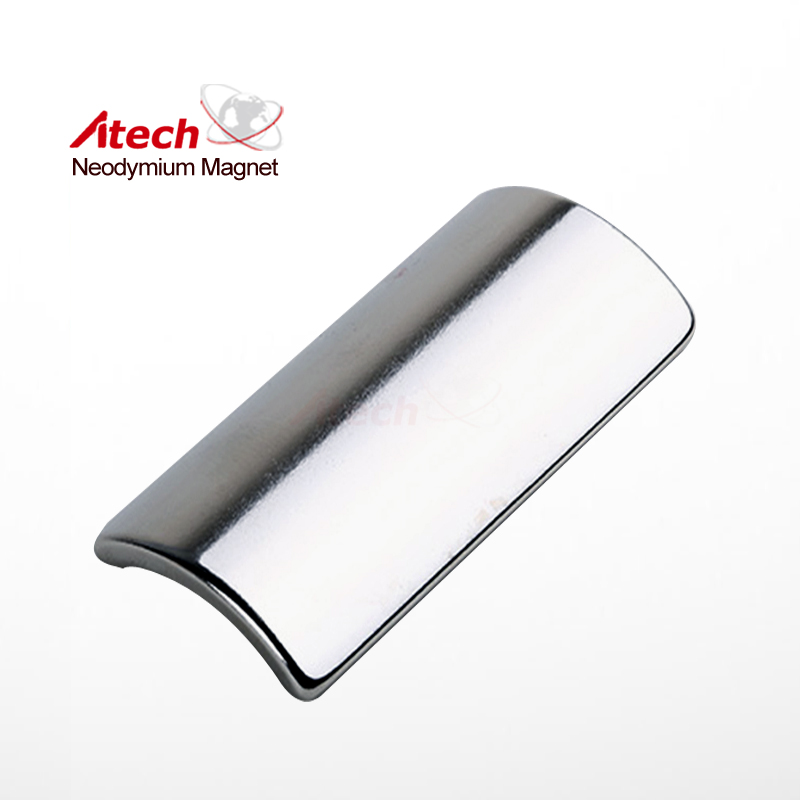

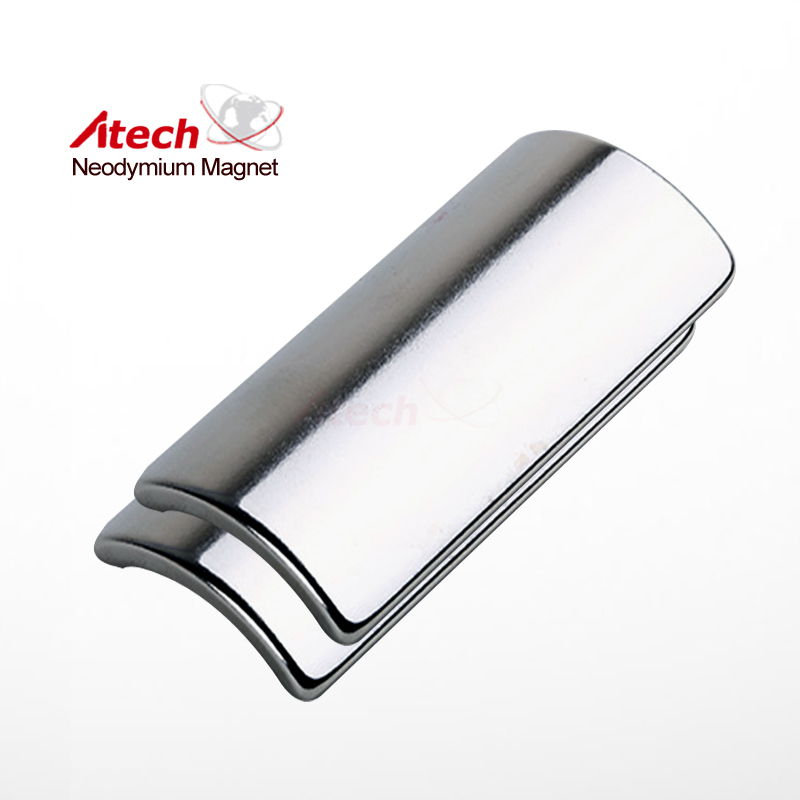

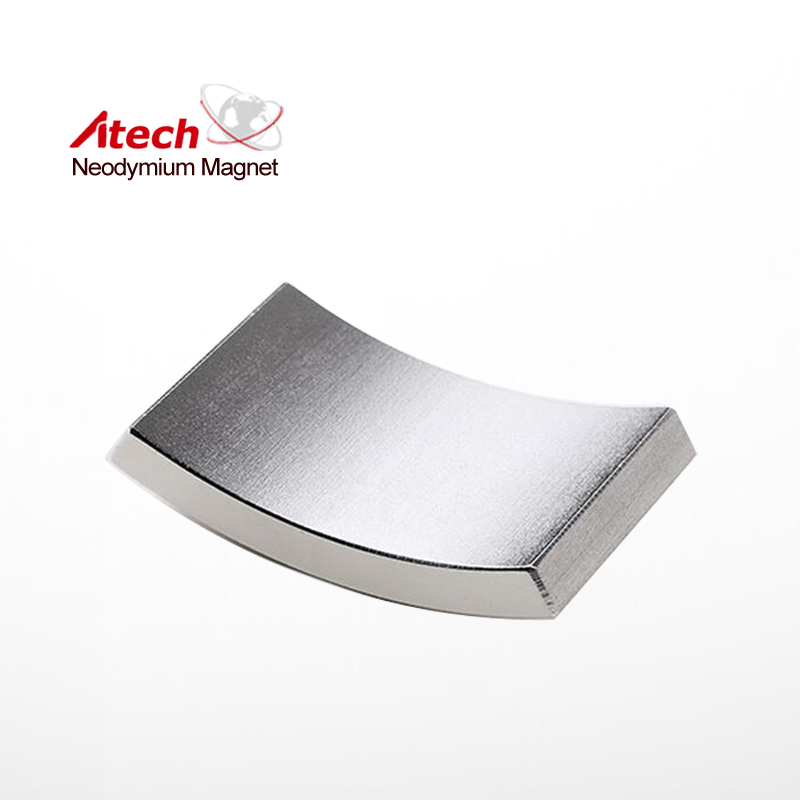

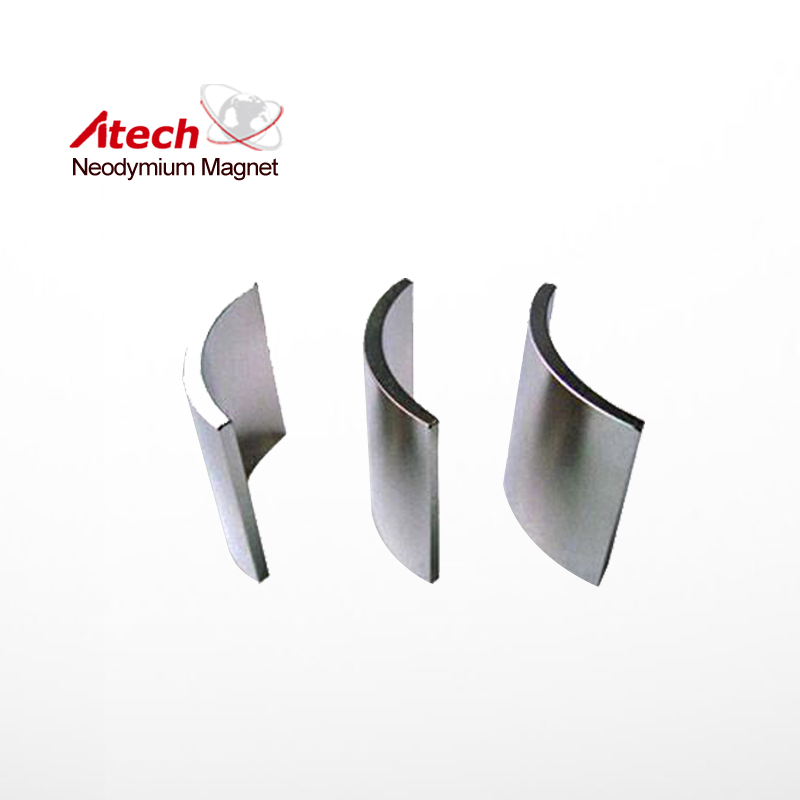

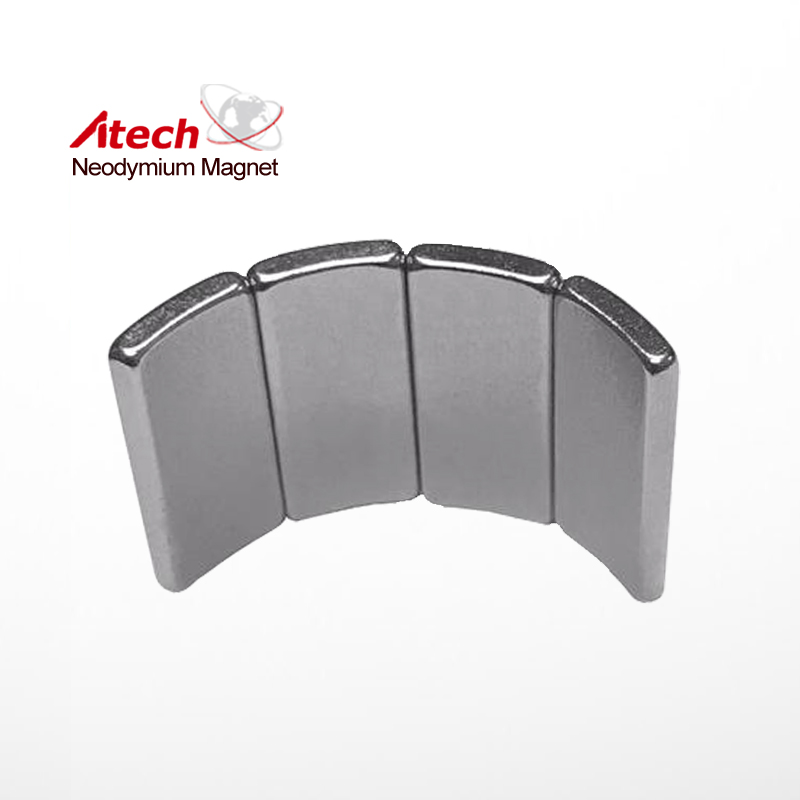

Nickel Coated N52 Neodymium Magnet Arc

Similar Products

Circle Magnet 1/2 SKU Code: ATECHDI010 Dimensions: D1/2""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Ope...
Industrial Magnet N52 3/8” SKU Code: ATECHDI004 Dimensions: D3/8""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.6 gBr Max/Gauss rating: 14800 GSMax ...
3/4 inch x 1/8 inch N52 Strong Round Magnets Cylinder Magent Small Circle Magnet SKU Code: ATECHDI018 Dimensions: D3/4""x 1/8""Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 14800 GSMax Op...

Material	NdFeB
Grade	N52
Remanence Br（kGs）	Max:14.8 Min:14.3
Plating	Ni-Cu-Ni (Nickel)
Shape	Arc
Coercive force(kOe) Min.	10
Intrinsic Coercive force (kOe) Min.	11
Max energy product (MGOe)	Max:51 Min:48
Max Temp (℃)	80

Application Area
