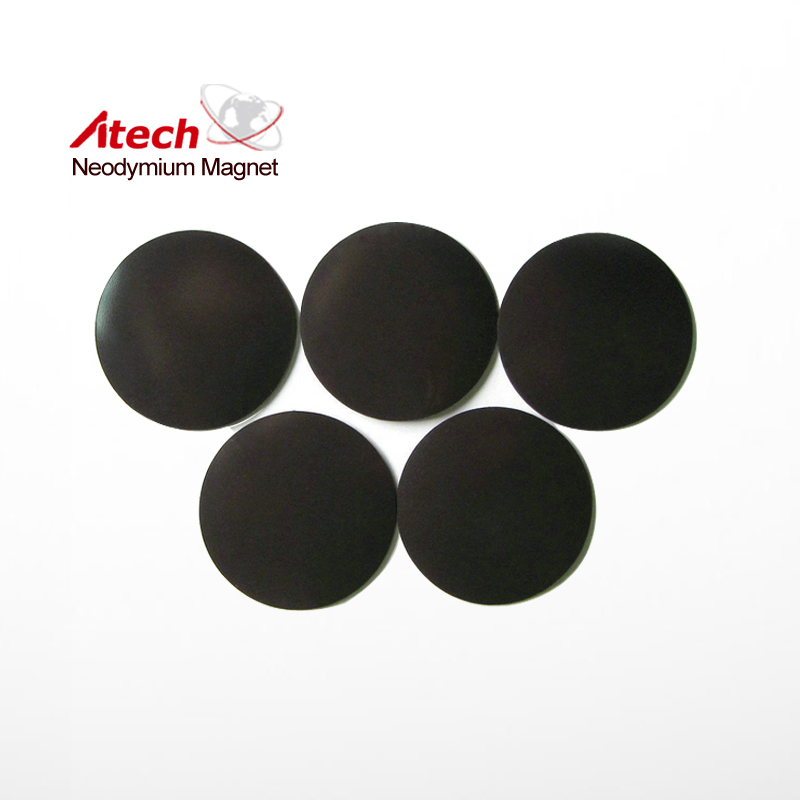

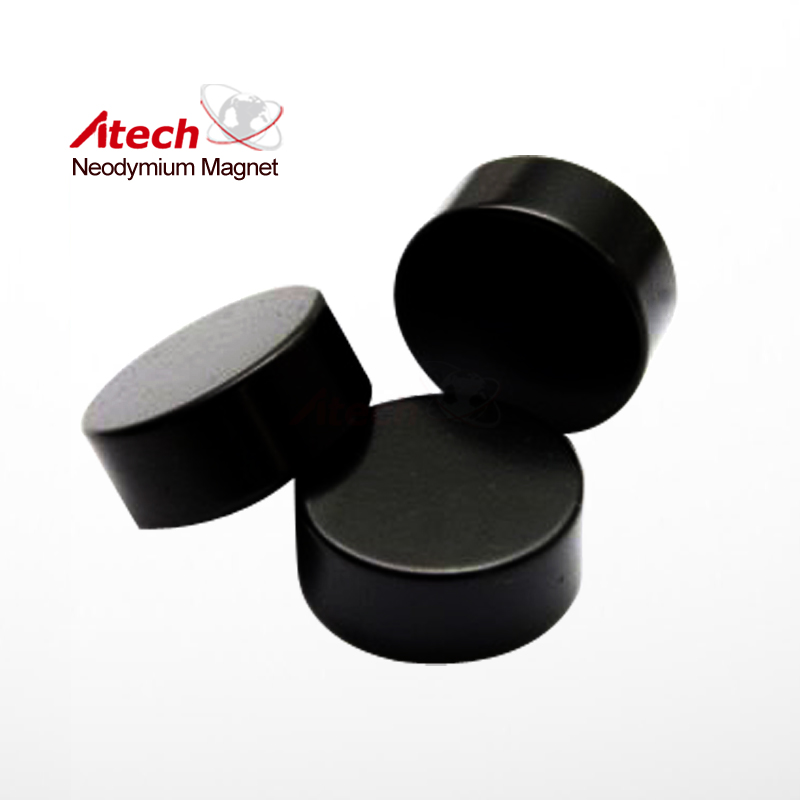

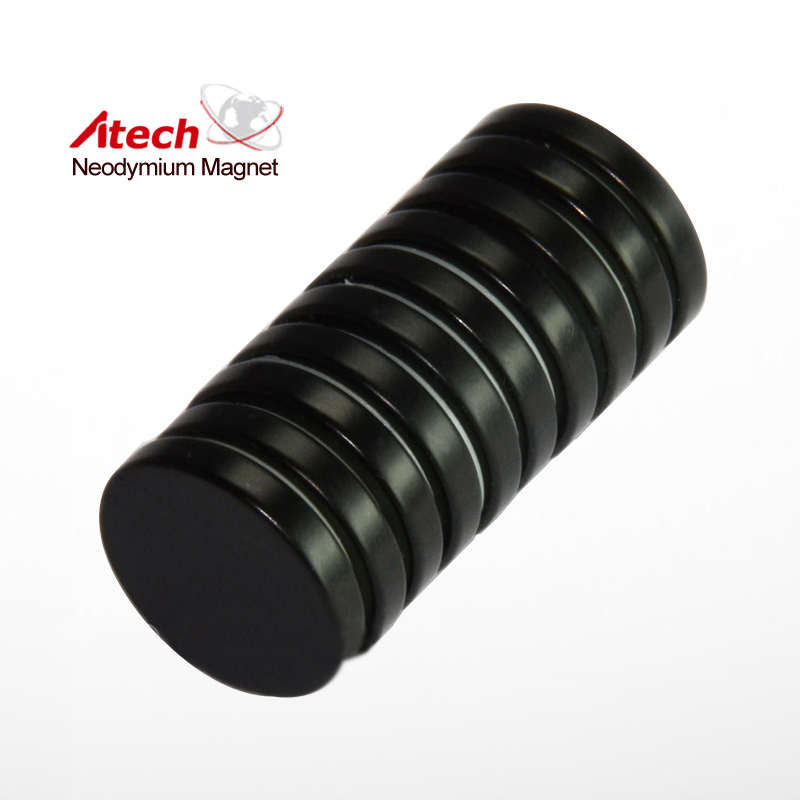

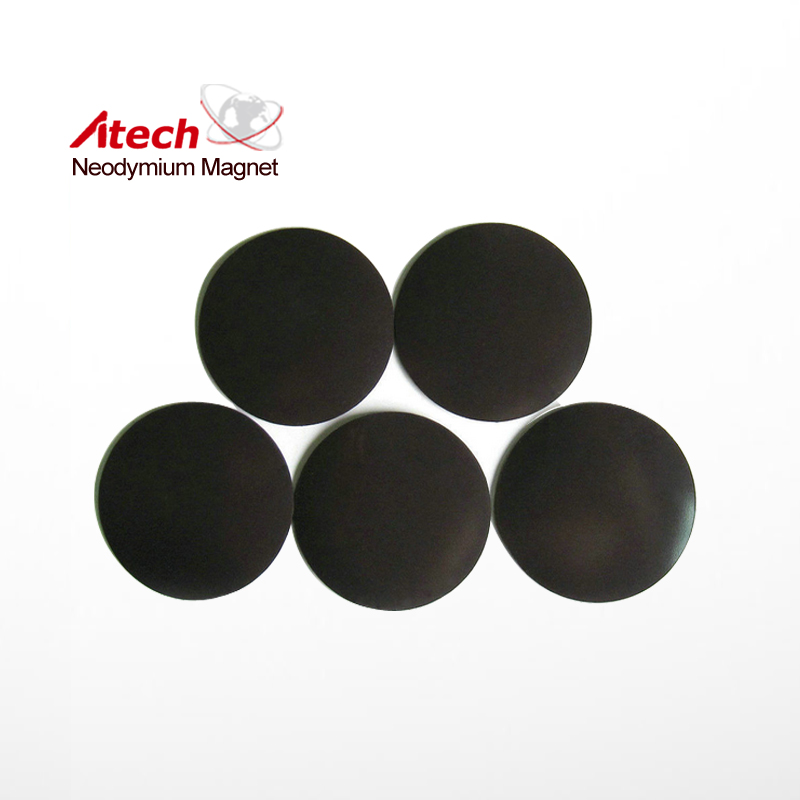

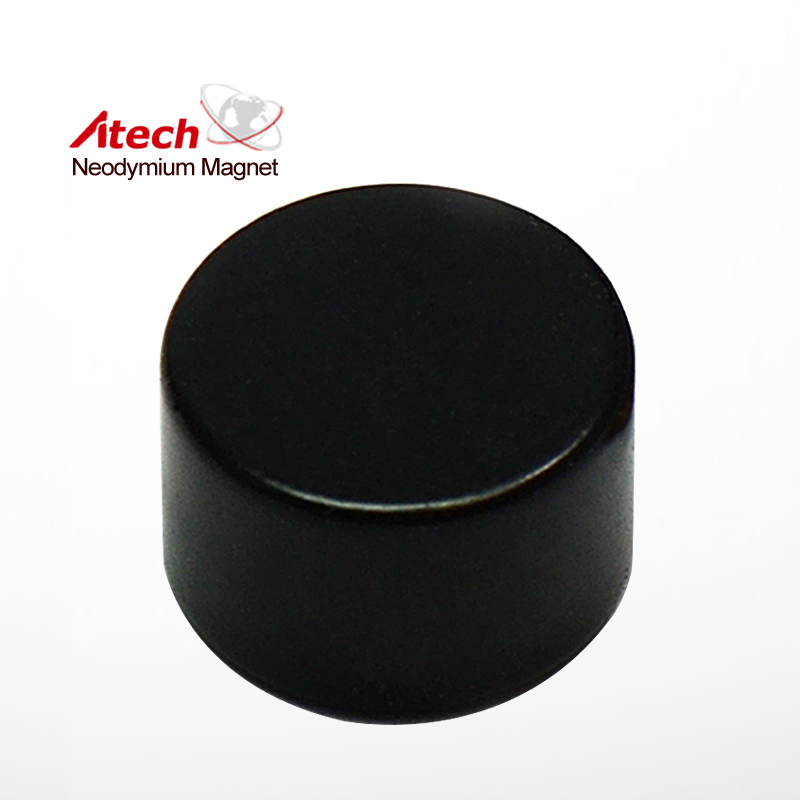

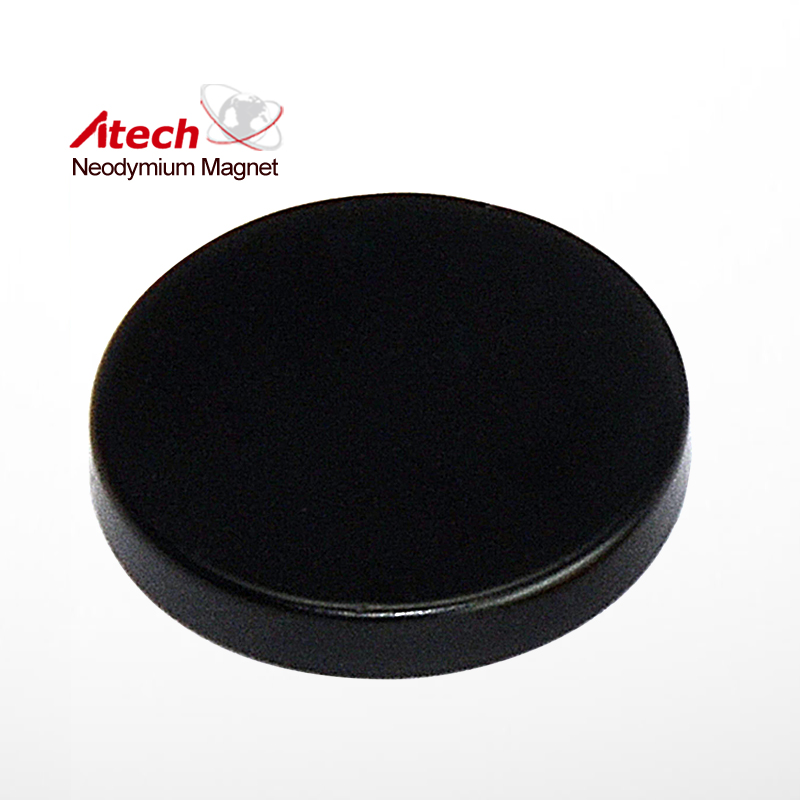

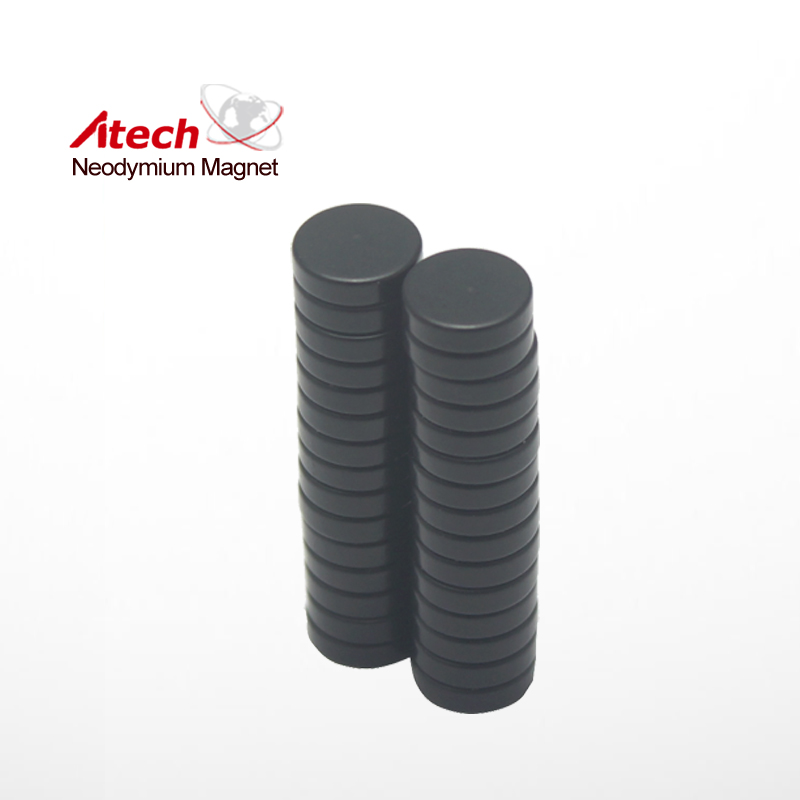

Epoxy Coated N45SH Neodymium Magnet Disc

Similar Products

Grade N42 Neodymium Disc Magnets D10*3mm SKU Code: ATECHDI001 Dimensions: D10 * 3mm Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.480 gBr Max/Gauss rating: 13200 GSMax O...
Strong Round Magnet N42 3/8” "SKU Code: ATECHDI003 Dimensions: D3/8""x1/16"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 1.2 gBr Max/Gauss rating: 13200 GSMa...
5/8 inch x 1/4 inch N42 Industrial Magent Custom Round Car Magnet Disc SKU Code: ATECHDI017 Dimensions: D5/8""x 1/4"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 13200 GSMax O...

Epoxy Coated N45SH Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. The maximum operating temperature of Epoxy Coated N45SH Neodymium Magnet Disc is up to 150 degrees C.

Material	NdFeB
Grade	N45SH
Remanence Br（kGs）	Max:13.8 Min:13.2
Plating	Epoxy
Shape	Disc
Coercive force(kOe) Min.	12.6
Intrinsic Coercive force (kOe) Min.	20
Max energy product (MGOe)	Max:46 Min:43
Max Temp (℃)	150
