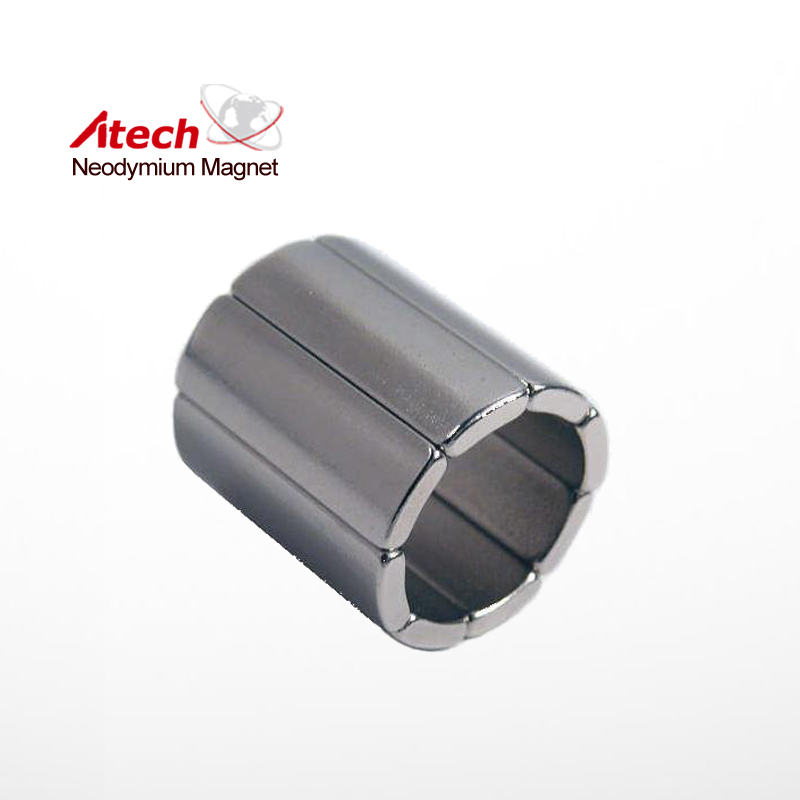

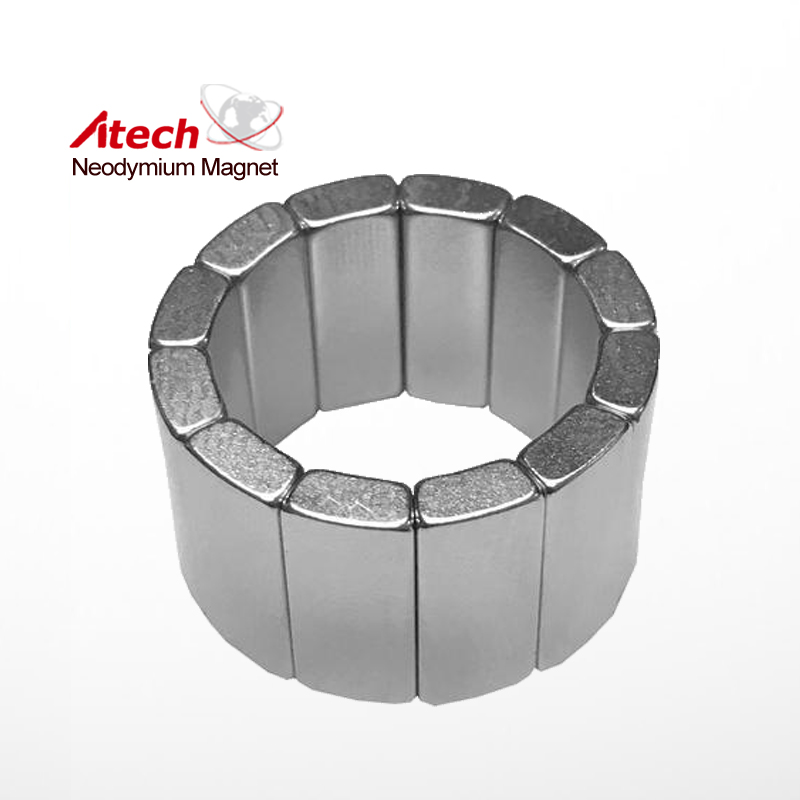

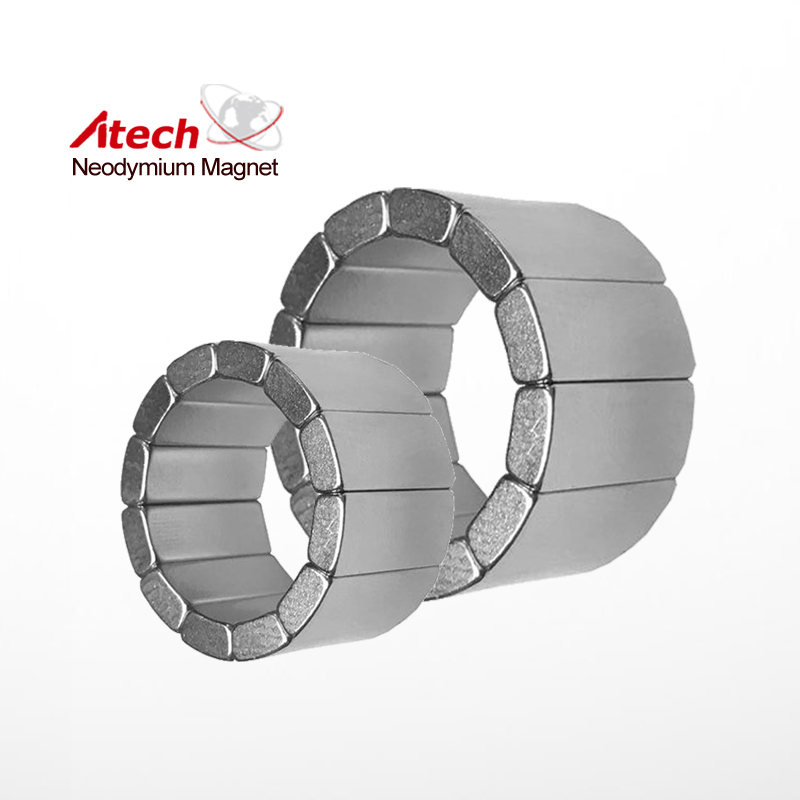

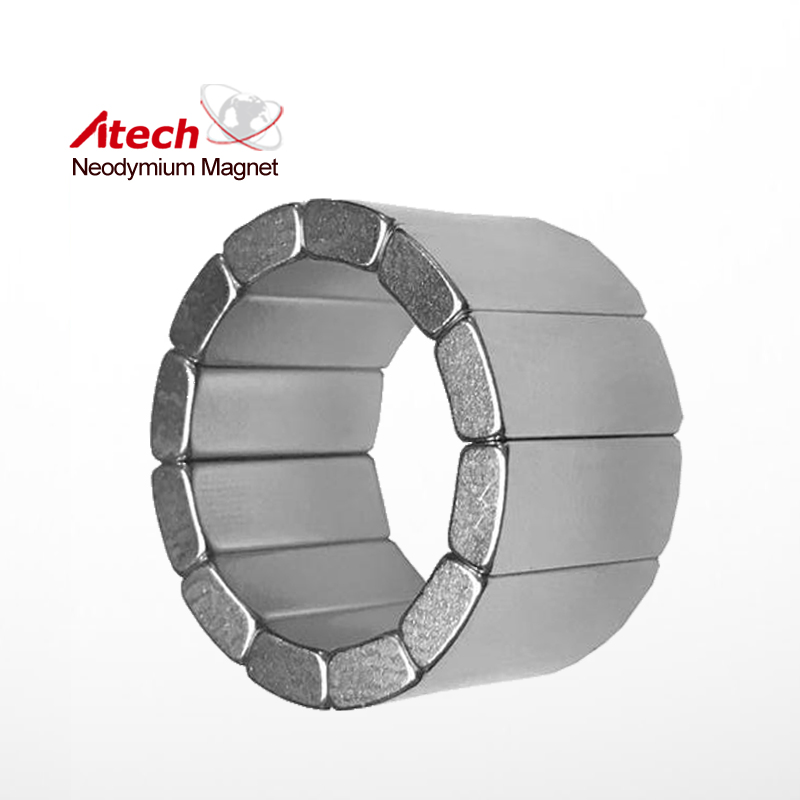

Nickel Coated N40 Neodymium Magnet Arc

Similar Products

1 SKU Code:ATECHBL018 Dimensions: 1"x1/2"x1/4" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight:125 gBr Max/Gauss rating：13200 GSM...
Circle Magnet 1/2 SKU Code: ATECHDI010 Dimensions: D1/2""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Ope...
Cylinder Magnets N52 Super Strong Magnet 1/2 inch x1/2 inch Round Magnets For Sale SKU Code:ATECHDI014 Dimensions: D1/2""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 12 gBr Max/Gauss rating: 14800 GSMax Ope...

Material	NdFeB
Grade	N40
Remanence Br（kGs）	Max:12.8 Min:12.5
Plating	Ni-Cu-Ni (Nickel)
Shape	Arc
Coercive force(kOe) Min.	10.9
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:41 Min:38
Max Temp (℃)	80

Application Area
