Nickel Coated N40 Neodymium Magnet Disc

Similar Products

Cylinder Magnet N52 3/8” SKU Code: ATECHDI005 Dimensions: D3/8""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 7.7 gBr Max/Gauss rating: 14800 GSMax ...
Nickel Coated N38M Neodymium Magnet Cylinder MaterialNdFeBGradeN38MRemanence Br（kGs）Max:12.5Min:12.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.3Intrinsic Coercive force (kOe) Min.14Max energy product (MGOe)Max:39Min:36Max Temp (℃)...
Industrial Magnet N52 3/8” SKU Code: ATECHDI004 Dimensions: D3/8""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.6 gBr Max/Gauss rating: 14800 GSMax ...

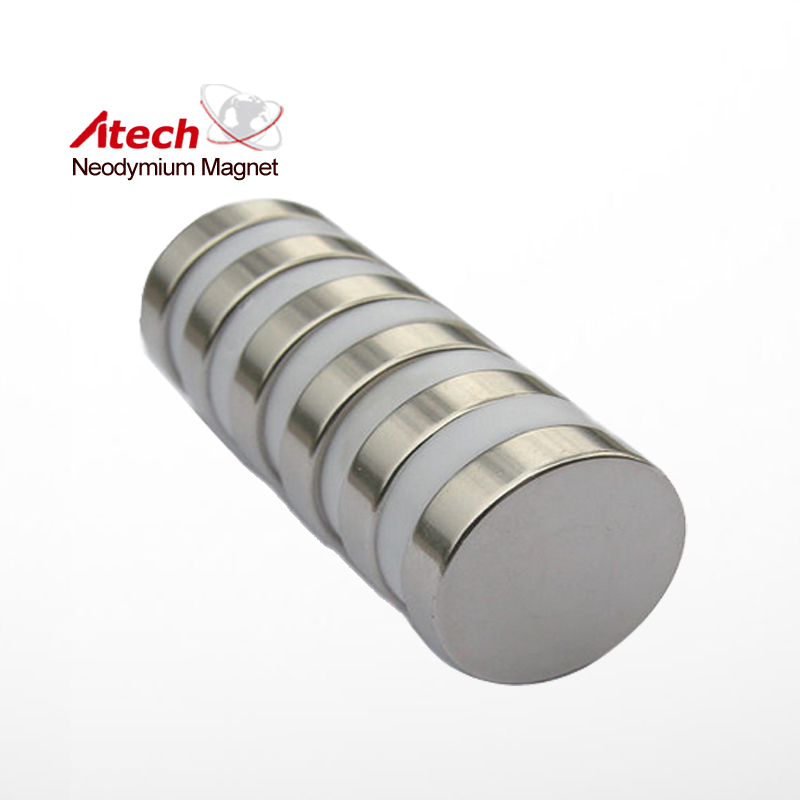

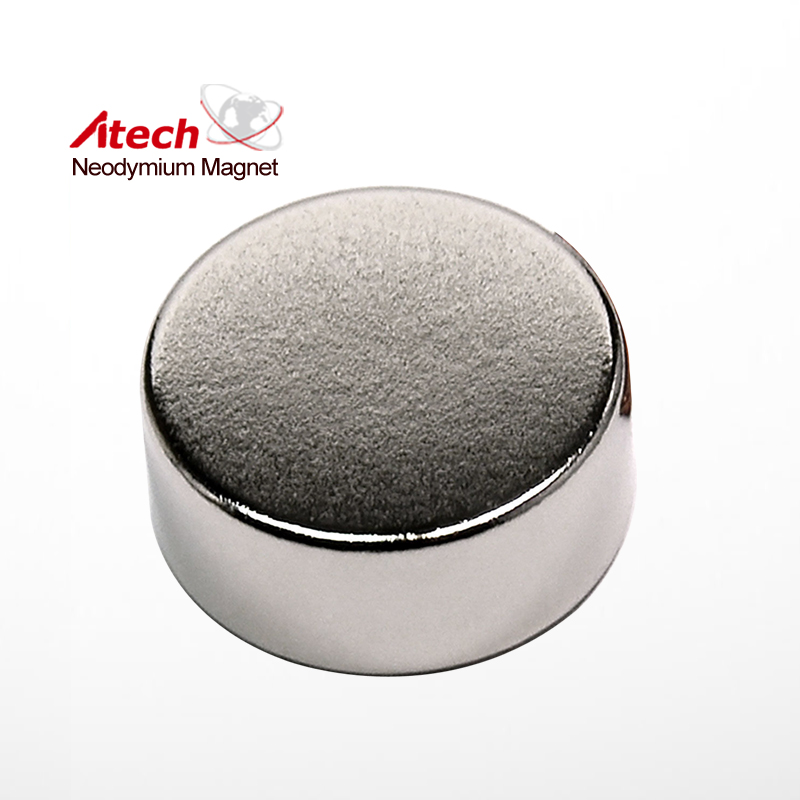

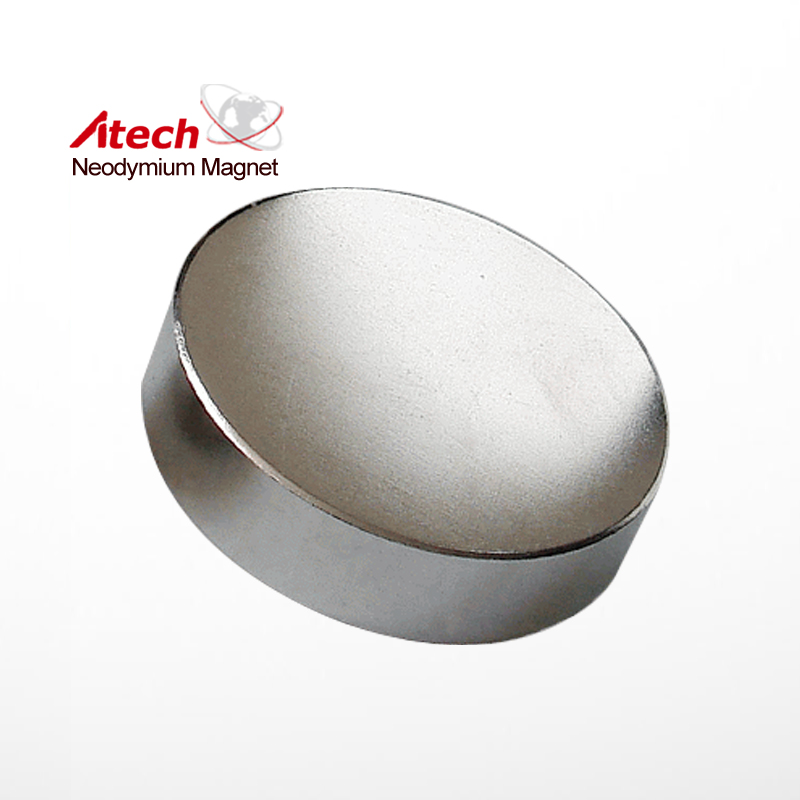

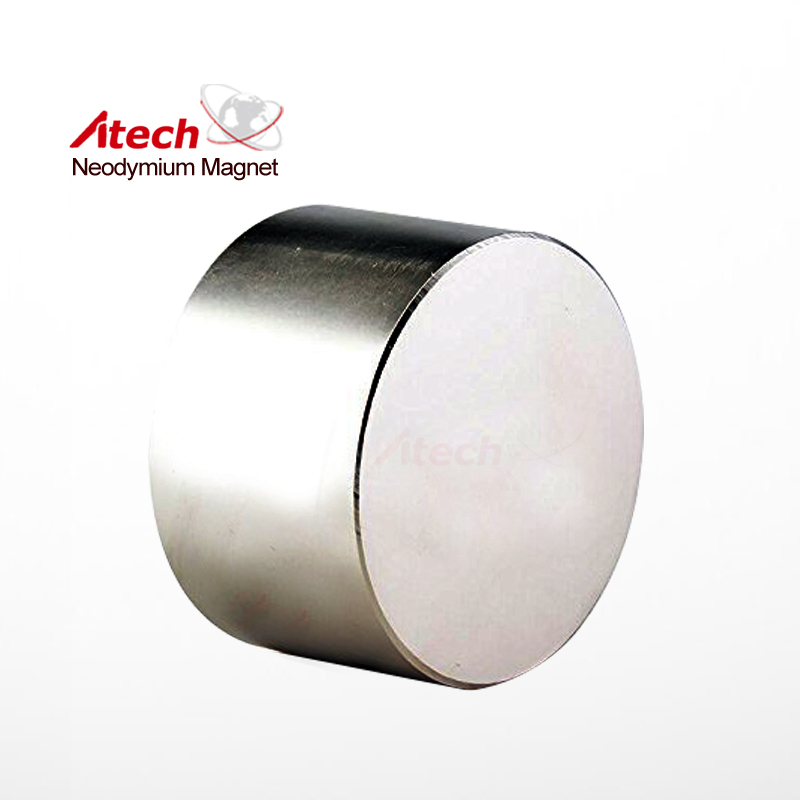

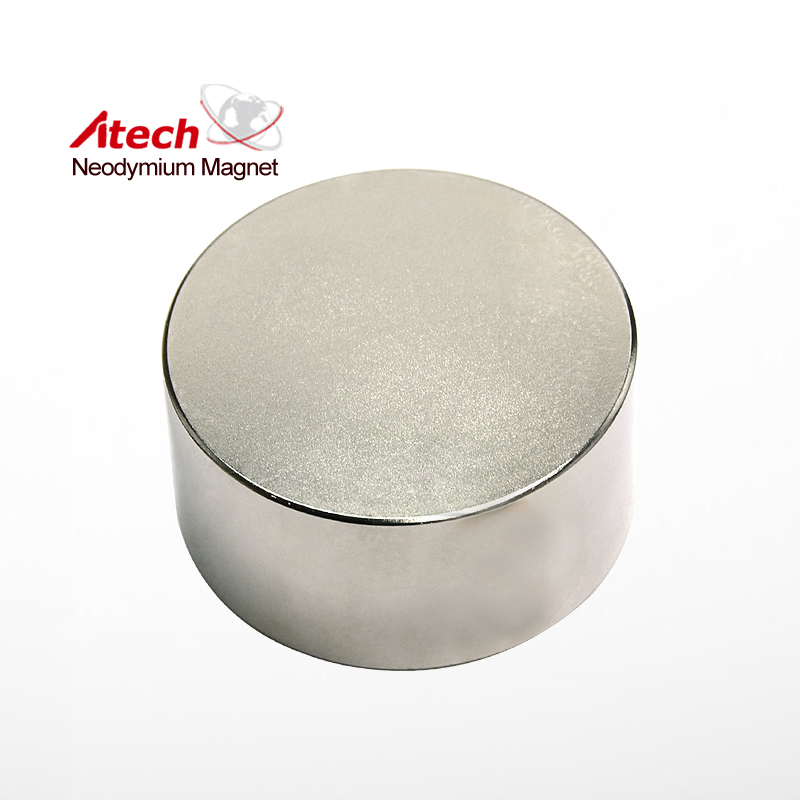

Nickel Coated N40 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N40 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N40
Remanence Br（kGs）	Max:12.8 Min:12.5
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	11.4
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:41 Min:38
Max Temp (℃)	80
