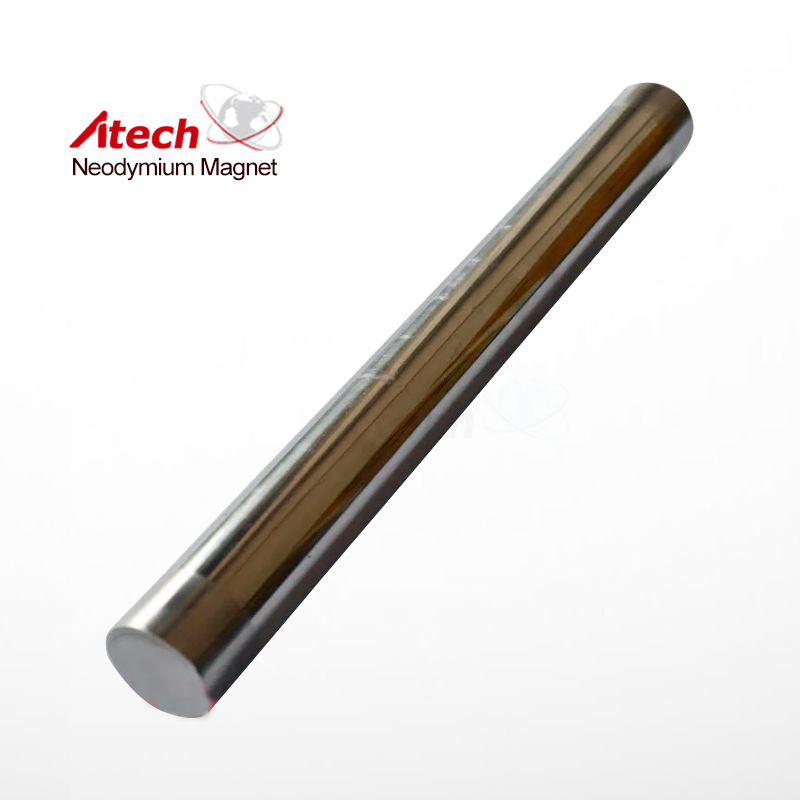

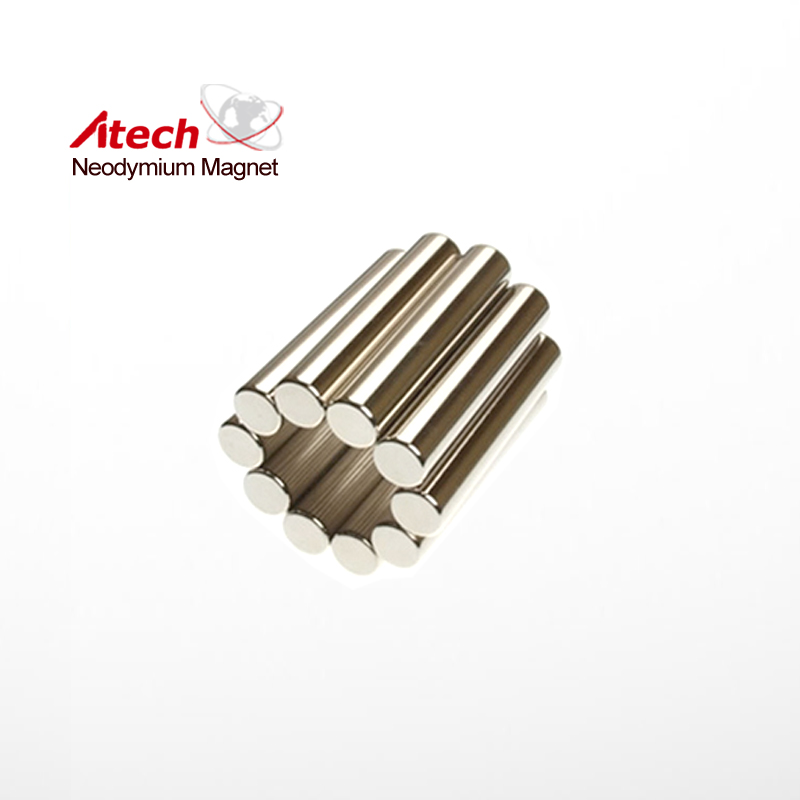

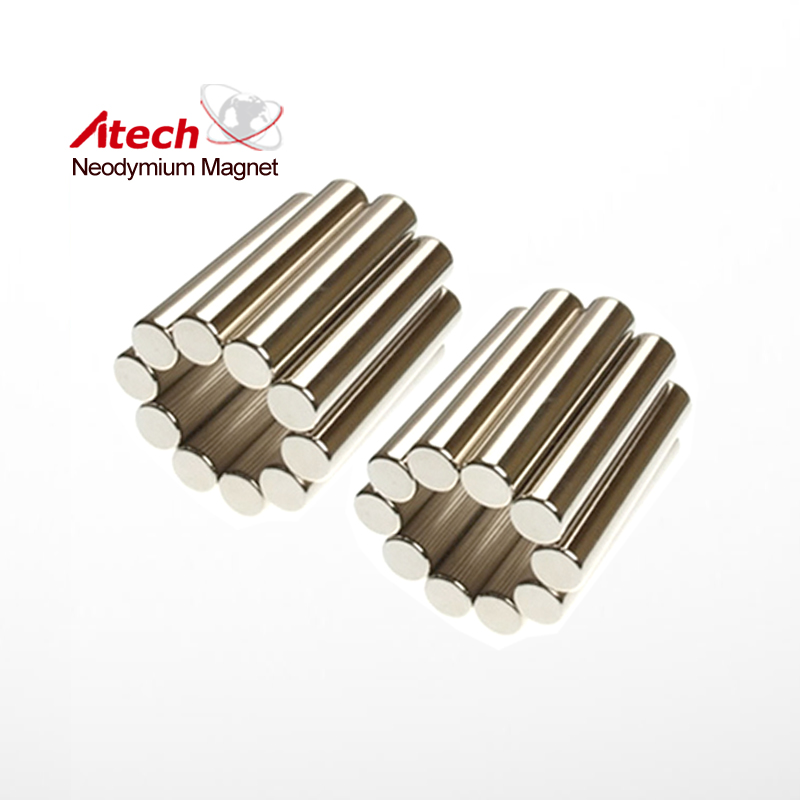

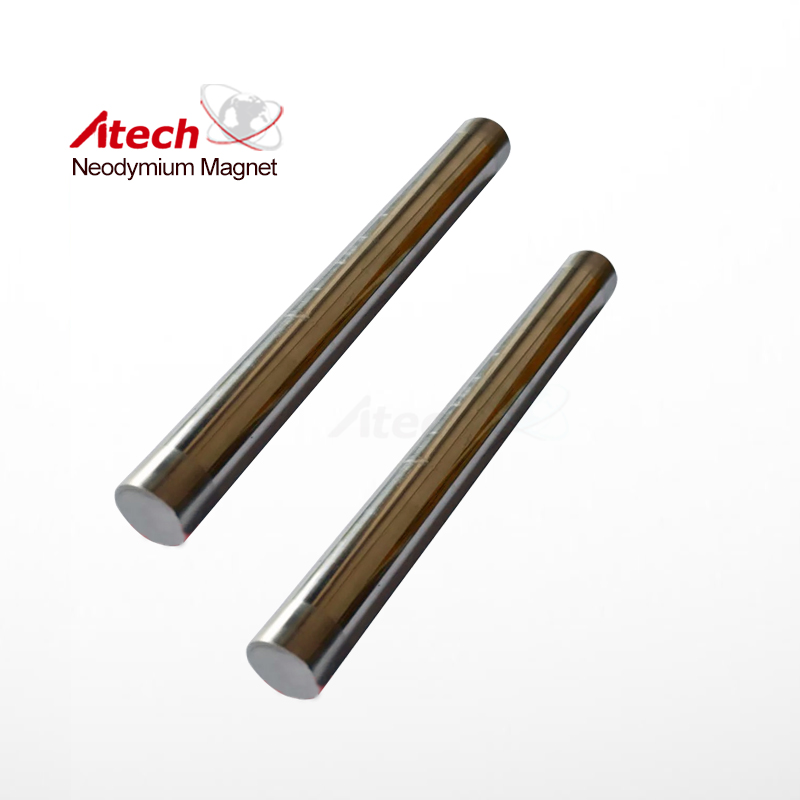

Nickel Coated N42M Neodymium Magnet Cylinder

Similar Products

5/8 inch x 1/4 inch N42 Industrial Magent Custom Round Car Magnet Disc SKU Code: ATECHDI017 Dimensions: D5/8""x 1/4"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 13200 GSMax O...
Nickel Coated N35M Neodymium Magnet Disc Nickel Coated N35M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
Nickel Coated N35 Neodymium Magnet Cylinder MaterialNdFeBGradeN35Remanence Br（kGs）Max:12.2Min:11.7PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.10.9Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:36Min:33Max Temp (℃)8...

Material	NdFeB
Grade	N42M
Remanence Br（kGs）	Max:13.2 Min:12.8
Plating	Ni-Cu-Ni (Nickel)
Shape	Cylinder
Coercive force(kOe) Min.	12.0
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:43 Min:40
Max Temp (℃)	100

Application Area
