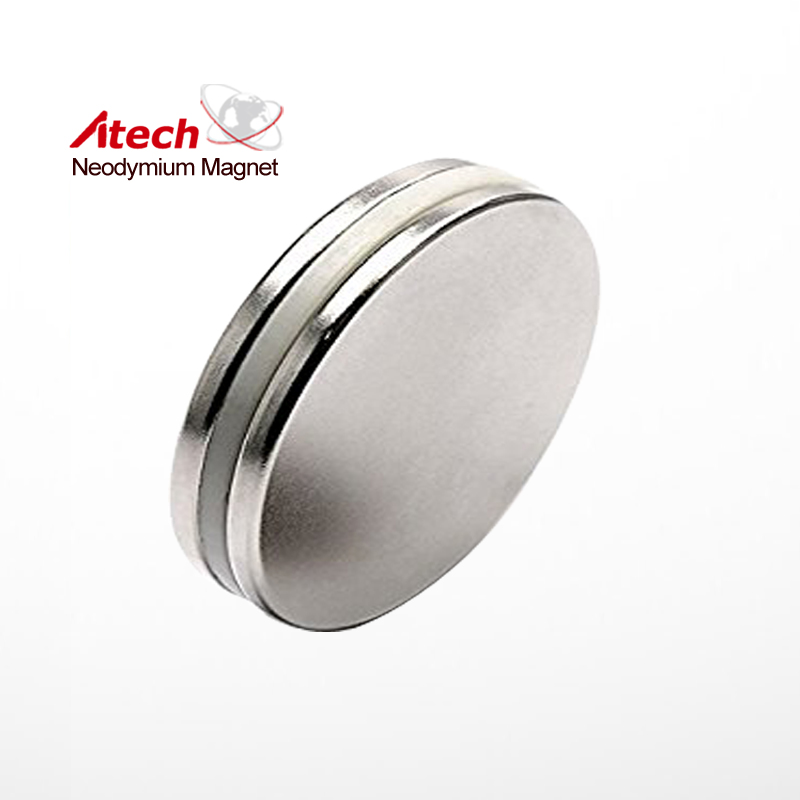

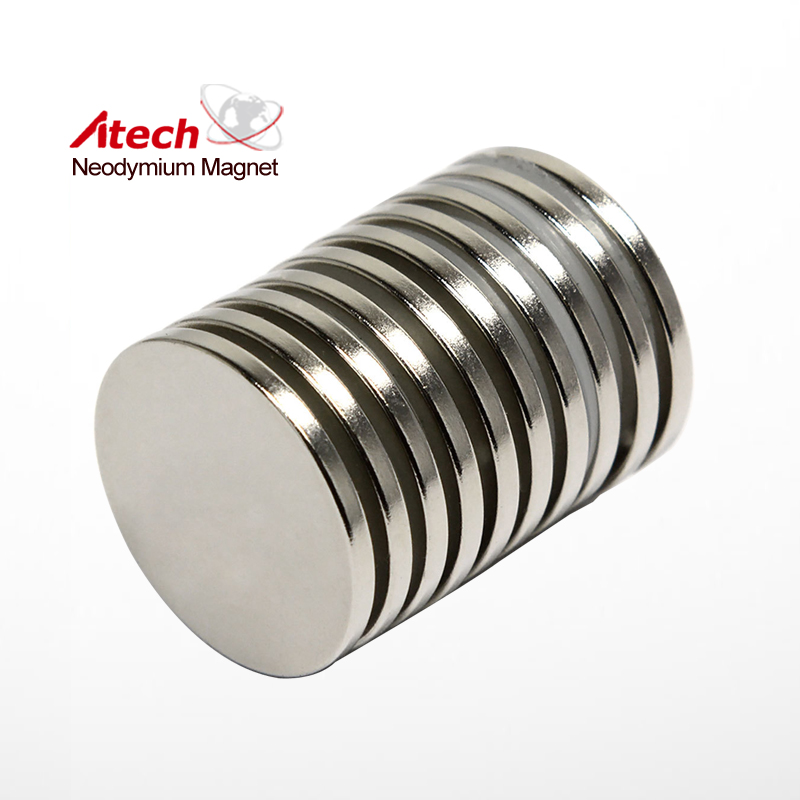

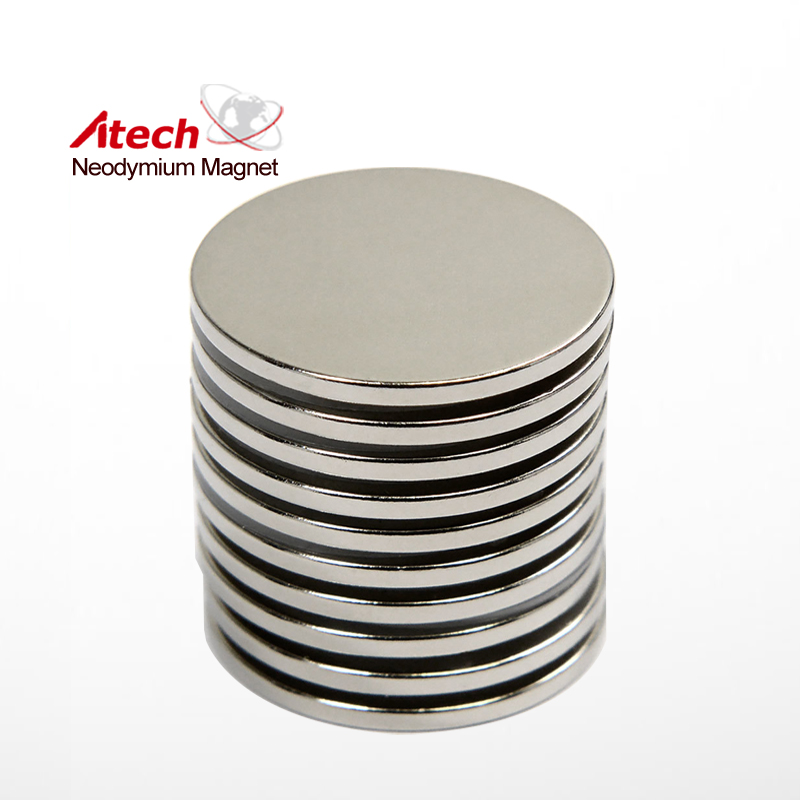

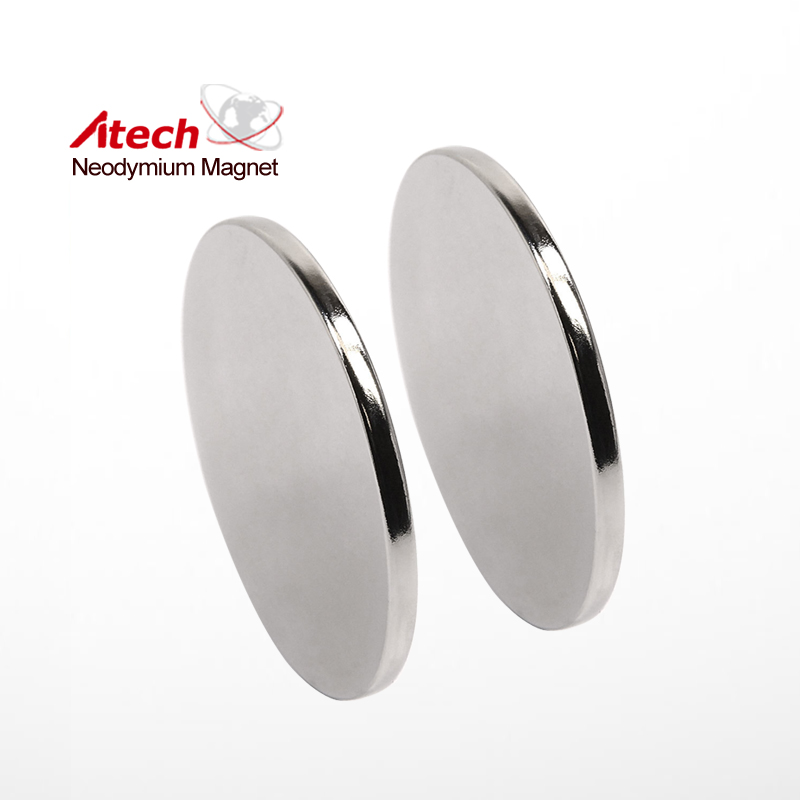

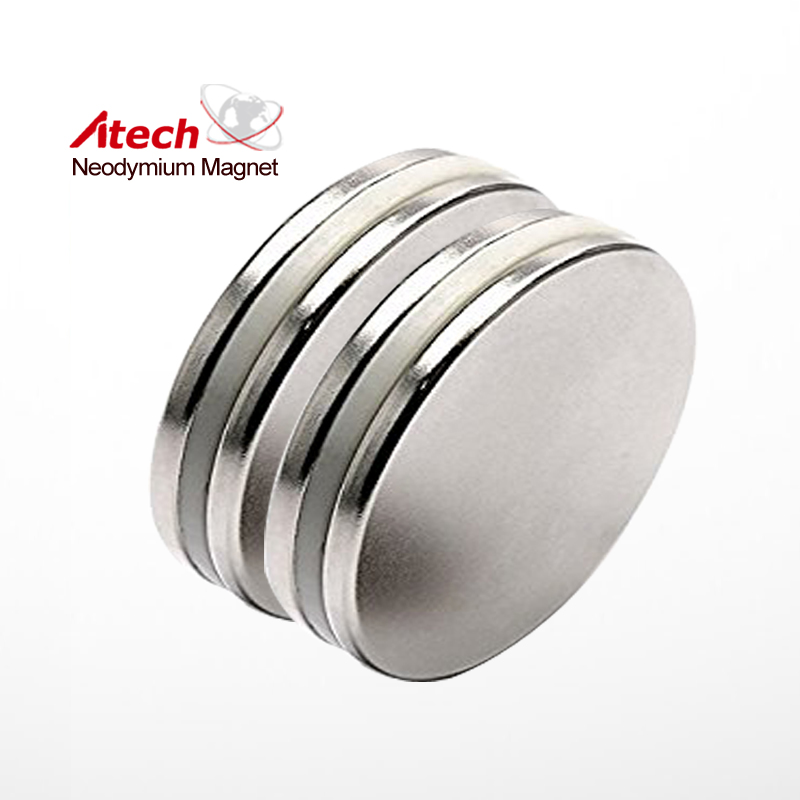

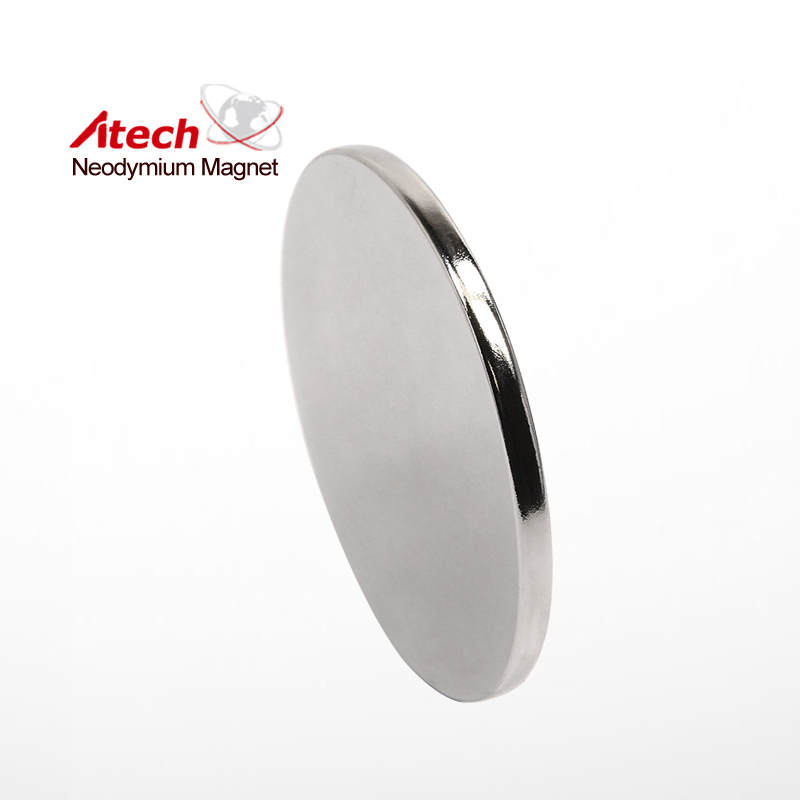

Nickel Coated N45 Neodymium Magnet Disc

Similar Products

5/8 inch x 1/4 inch N42 Industrial Magent Custom Round Car Magnet Disc SKU Code: ATECHDI017 Dimensions: D5/8""x 1/4"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 13200 GSMax O...
Industrial Magnet N52 3/8” SKU Code: ATECHDI004 Dimensions: D3/8""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.6 gBr Max/Gauss rating: 14800 GSMax ...
Nickel Coated N50 Neodymium Magnet Disc Nickel Coated N50 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated ...

Nickel Coated N45 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N45 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N45
Remanence Br（kGs）	Max:13.8 Min:13.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	11.6
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:46 Min:43
Max Temp (℃)	80

Application Area
