Nickel Coated N42SH Neodymium Magnet Disc

Nickel Coated N42SH Neodymium Magnet Disc
Similar Products
  • Industrial Magnet N42 1/2
    Industrial Magnet N42 1/2 SKU Code:ATECHDI012 Dimensions: D1/2"x1/4" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 16 gBr Max/Gauss rating:13200 GSMax Operating ...
  • Nickel Coated N33M Neodymium Magnet Disc
    Nickel Coated N33M Neodymium Magnet Disc Nickel Coated N33M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
  • Cylinder Magnet N52 3/8”
    Cylinder Magnet N52 3/8” SKU Code: ATECHDI005 Dimensions: D3/8""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 7.7 gBr Max/Gauss rating: 14800 GSMax ...

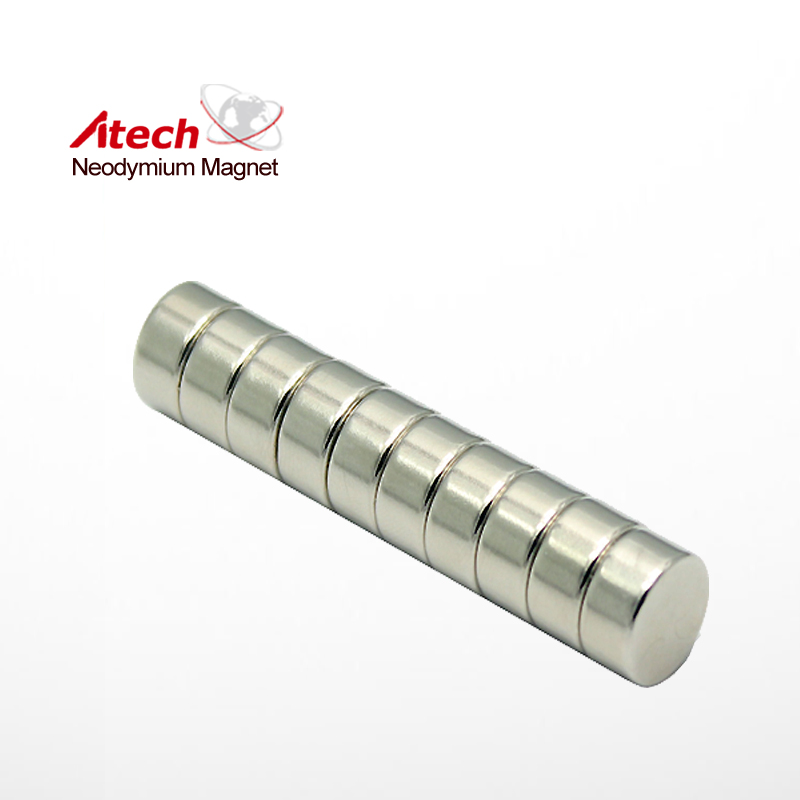

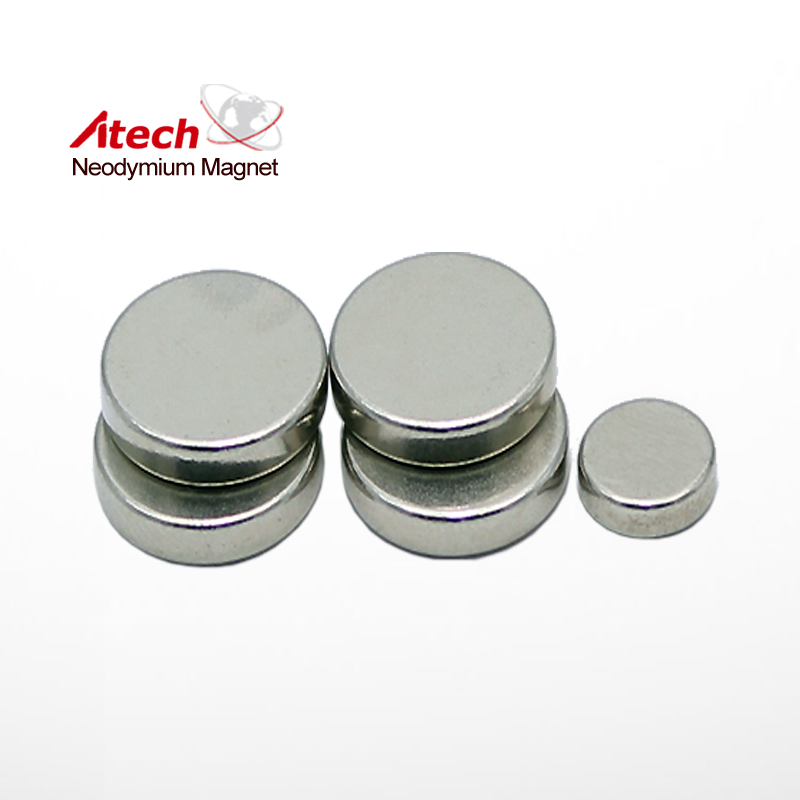

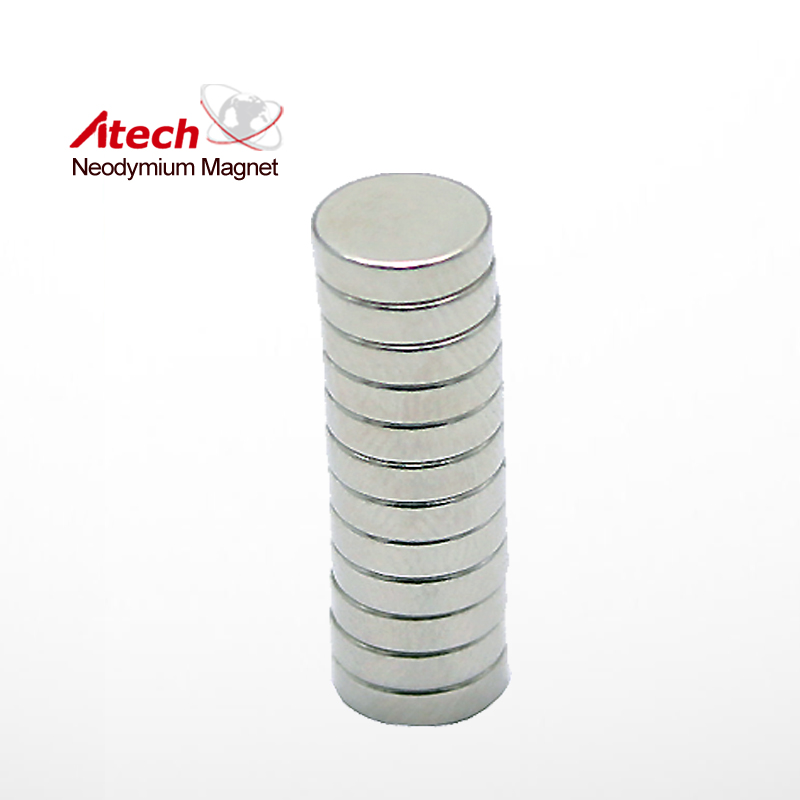

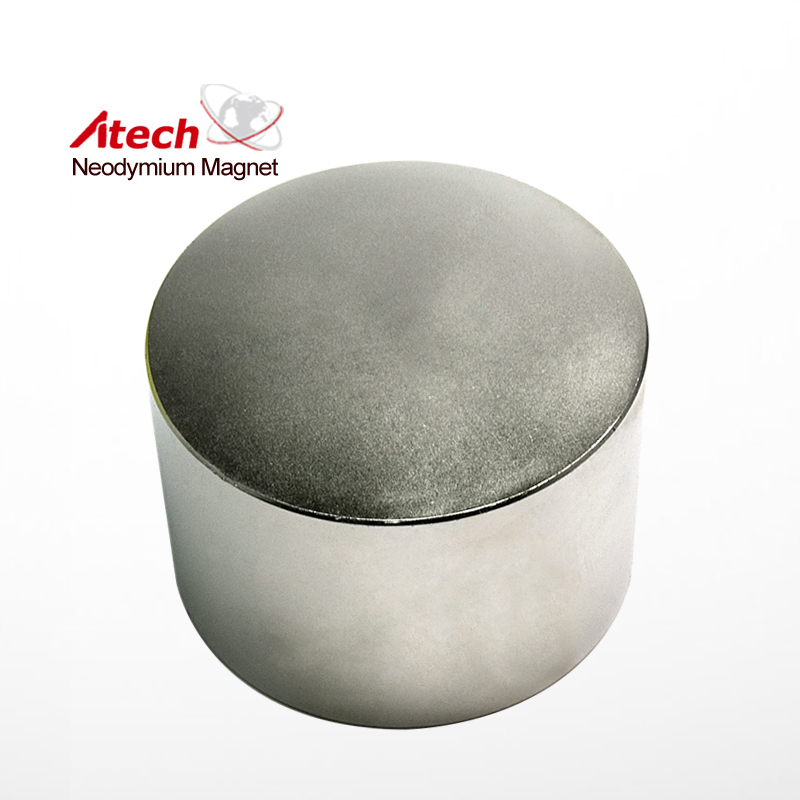

Nickel Coated N42SH Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N42SH Neodymium Magnet Disc is up to 150 degrees C.

Material NdFeB
Grade N42SH
Remanence Br(kGs) Max:13.2
Min:12.8
Plating nickel
Shape Disc
Coercive force(kOe) Min. 12.4
Intrinsic Coercive force (kOe) Min. 20
Max energy product (MGOe) Max:43
Min:40
Max Temp  (℃) 150
