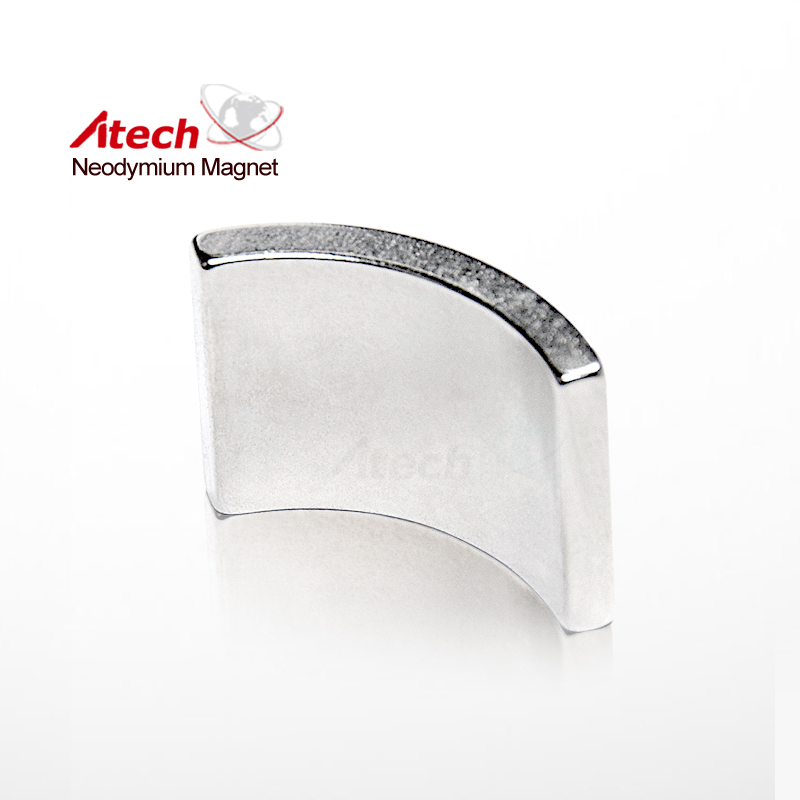

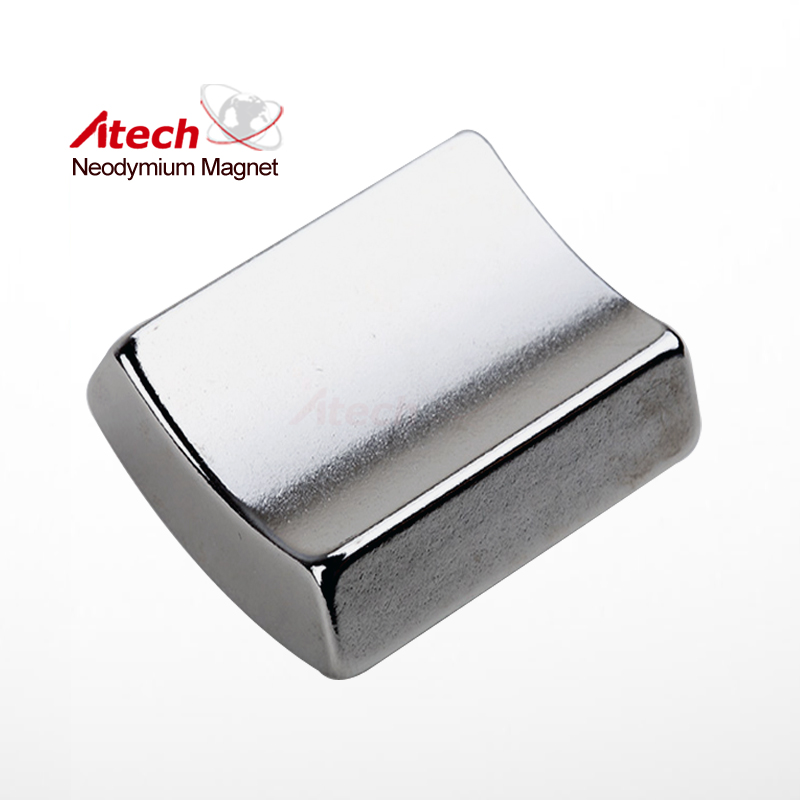

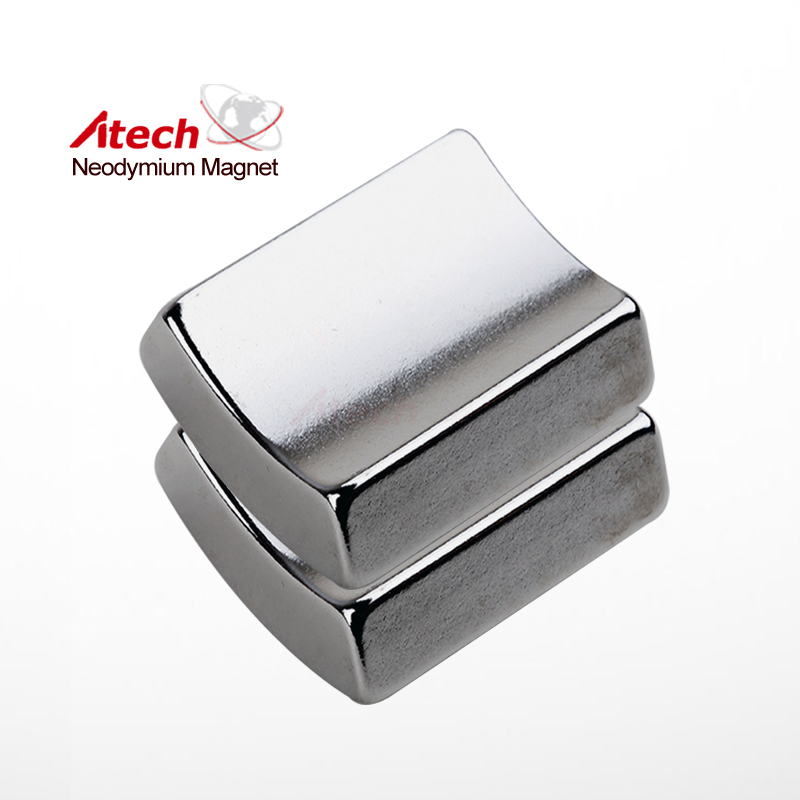

Nickel Coated N45M Neodymium Magnet Arc

Similar Products

N42 1/8 inch x1/8 inch x1/16 inch Neodymium Rare Earth Block Magnet SKU Code: ATECHBL001 Dimensions: 1/8""x1/8""x1/16"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 0.480 gBr Max/Gauss ra...
Powerful Disc Magnet N42 5/16” "SKU Code: ATECHDI002 Dimensions: 5/16""x1/16 Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.480 gBr Max/Gauss rating: 13200 GSMa...
Strong Round Magnet N42 3/8” "SKU Code: ATECHDI003 Dimensions: D3/8""x1/16"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 1.2 gBr Max/Gauss rating: 13200 GSMa...

Material	NdFeB
Grade	N45M
Remanence Br（kGs）	Max:13.8 Min:13.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Arc
Coercive force(kOe) Min.	12.5
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:46 Min:43
Max Temp (℃)	100
