Nickel Coated N50 Neodymium Magnet Disc

Nickel Coated N50 Neodymium Magnet Disc
Similar Products
  • Nickel Coated N40 Neodymium Magnet Disc
    Nickel Coated N40 Neodymium Magnet Disc Nickel Coated N40 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated ...
  • Nickel Coated N35M Neodymium Magnet Disc
    Nickel Coated N35M Neodymium Magnet Disc Nickel Coated N35M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
  • Nickel Coated N40 Neodymium Magnet Cylinder
    Nickel Coated N40 Neodymium Magnet Cylinder MaterialNdFeBGradeN40Remanence Br(kGs)Max:12.8Min:12.5PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.4Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:41Min:38Max Temp (℃)8...

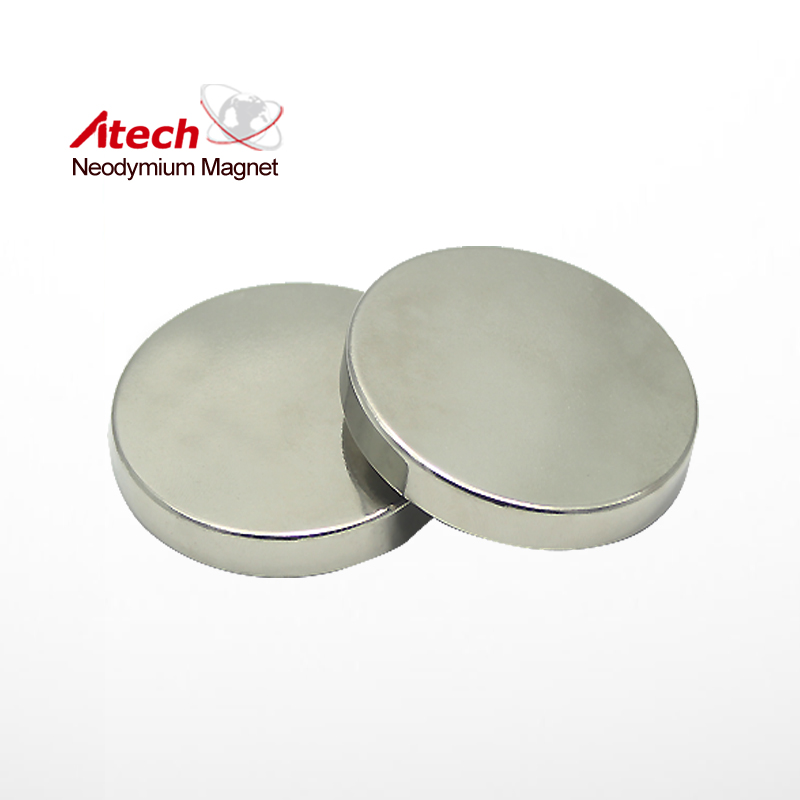

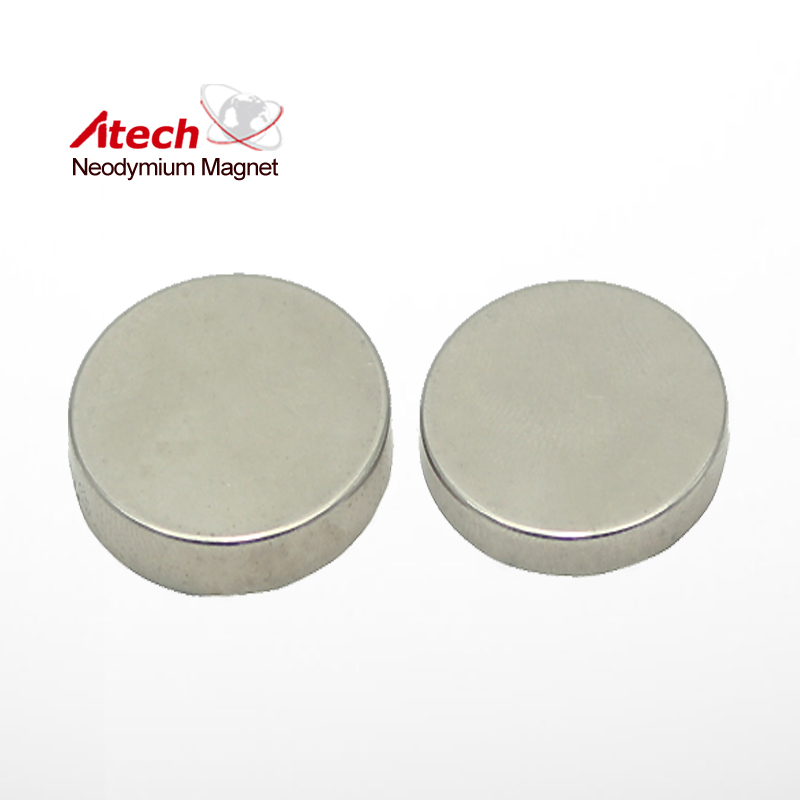

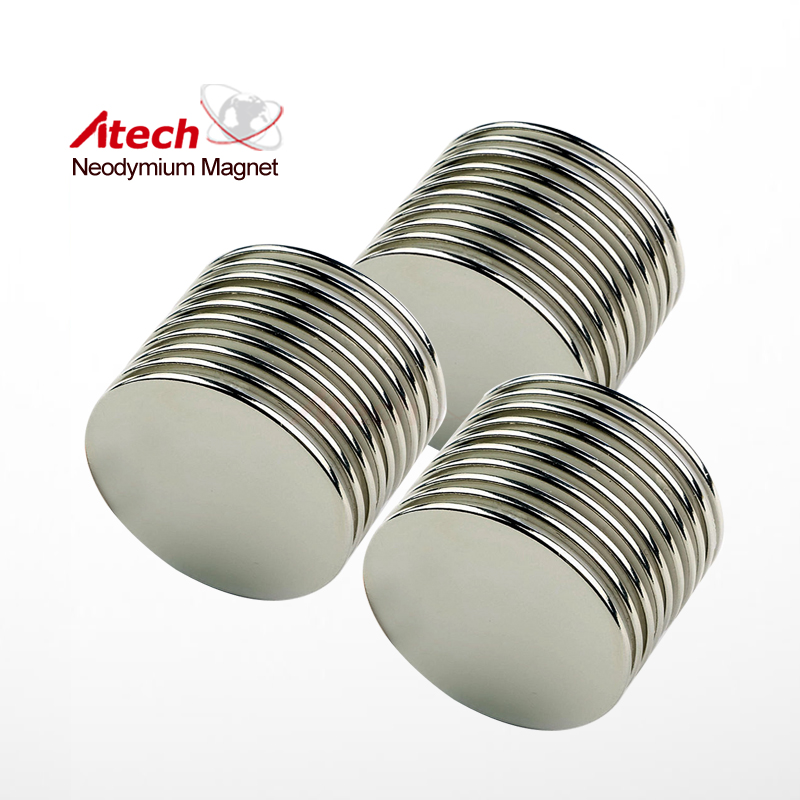

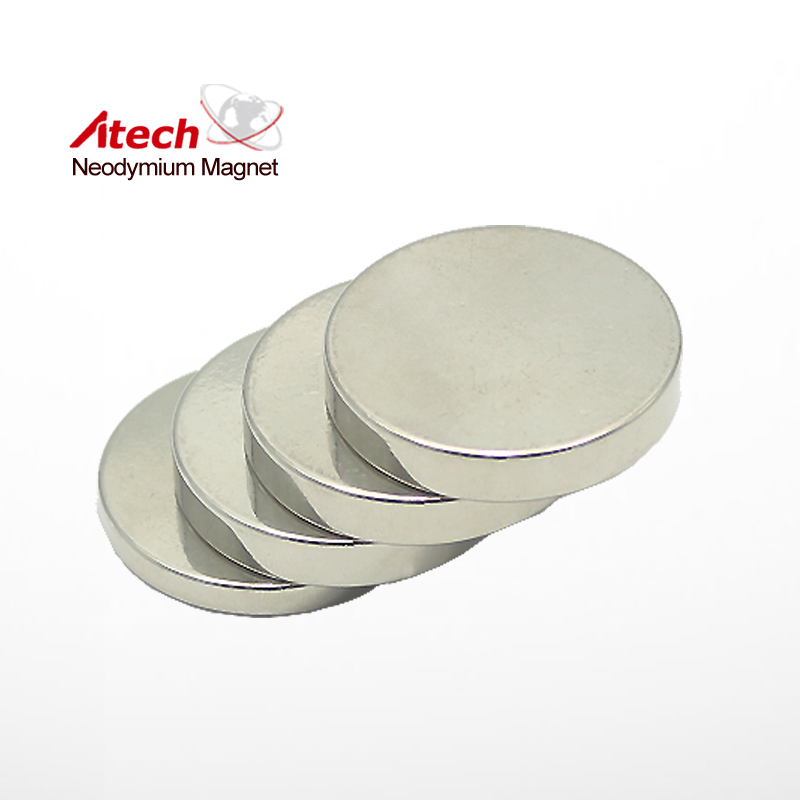

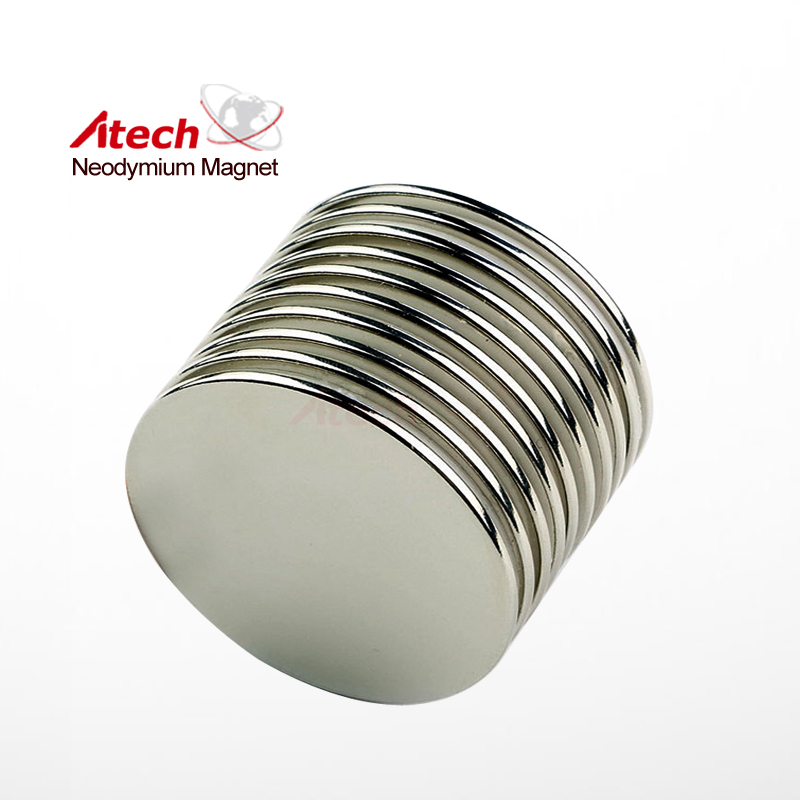

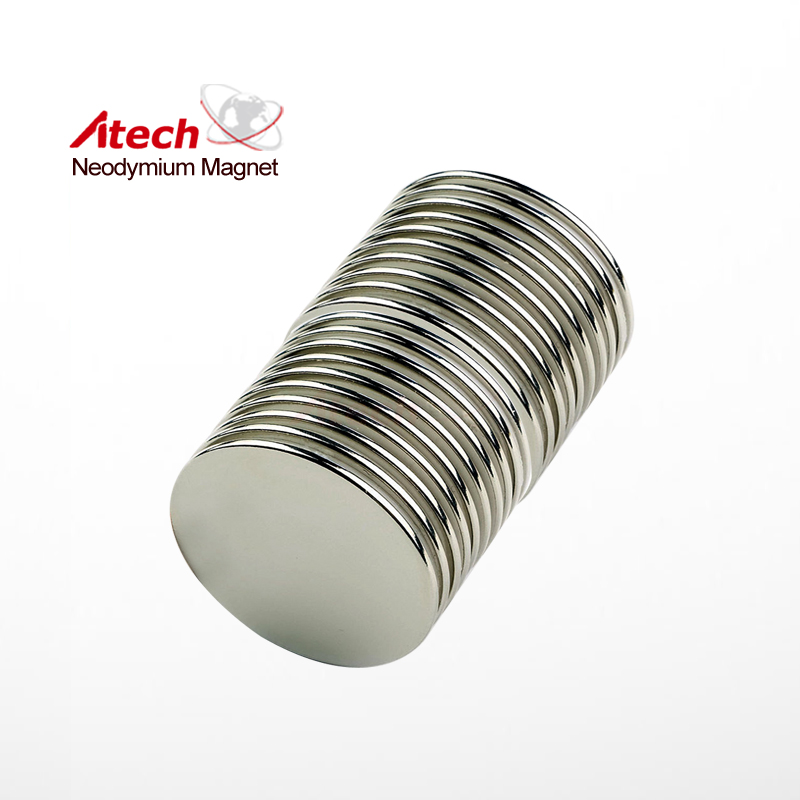

Nickel Coated N50 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N50 Neodymium Magnet Disc is up to 80 degrees C.

Material NdFeB
Grade N50
Remanence Br(kGs) Max:14.5
Min:14.0
Plating Ni-Cu-Ni (Nickel)
Shape Disc
Coercive force(kOe) Min. 10
Intrinsic Coercive force (kOe) Min. 11
Max energy product (MGOe) Max:51
Min:48
Max Temp  (℃) 80
