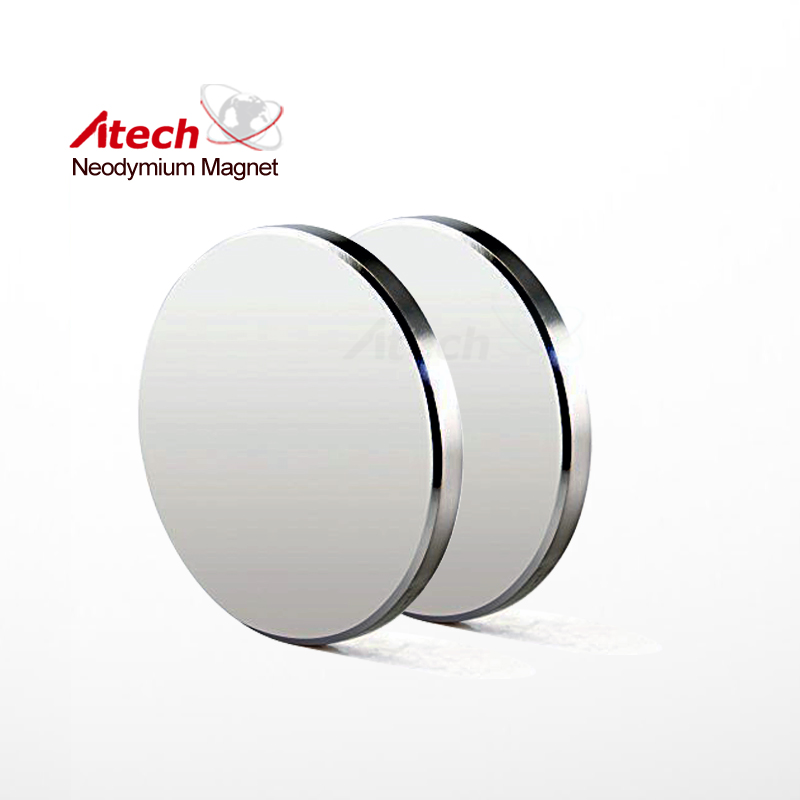

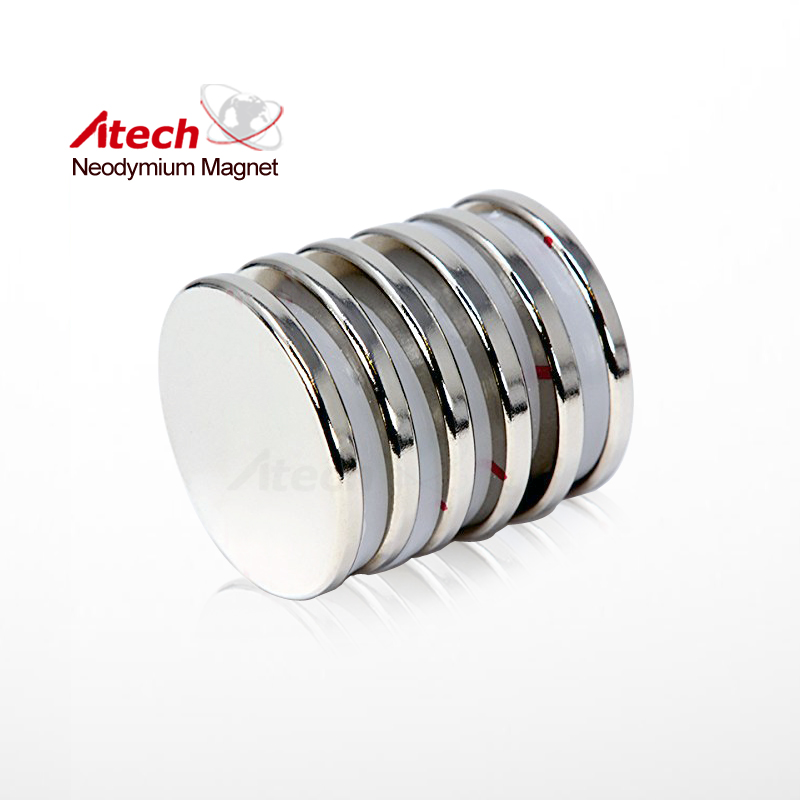

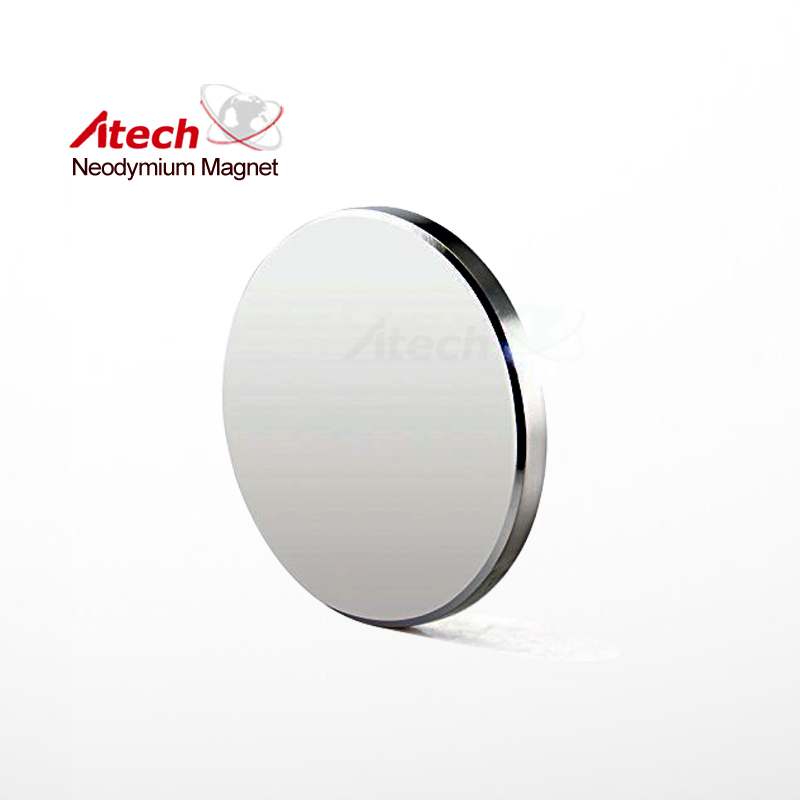

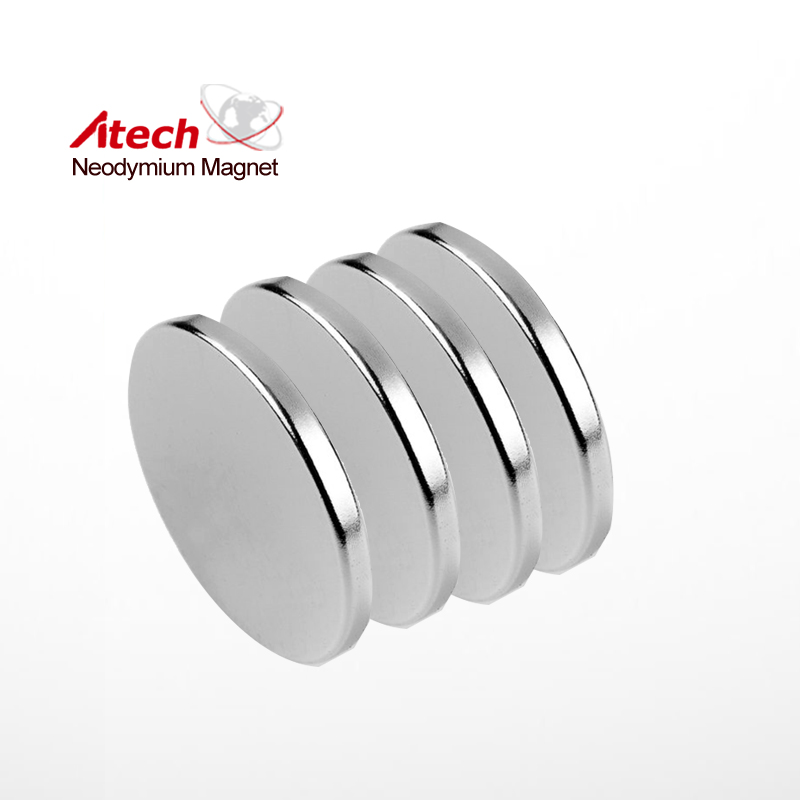

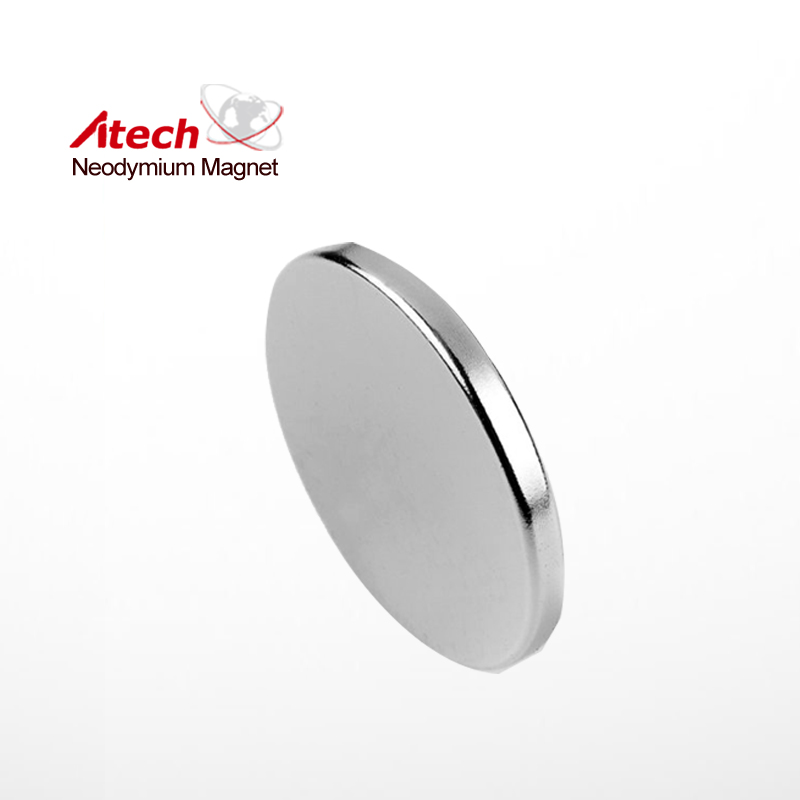

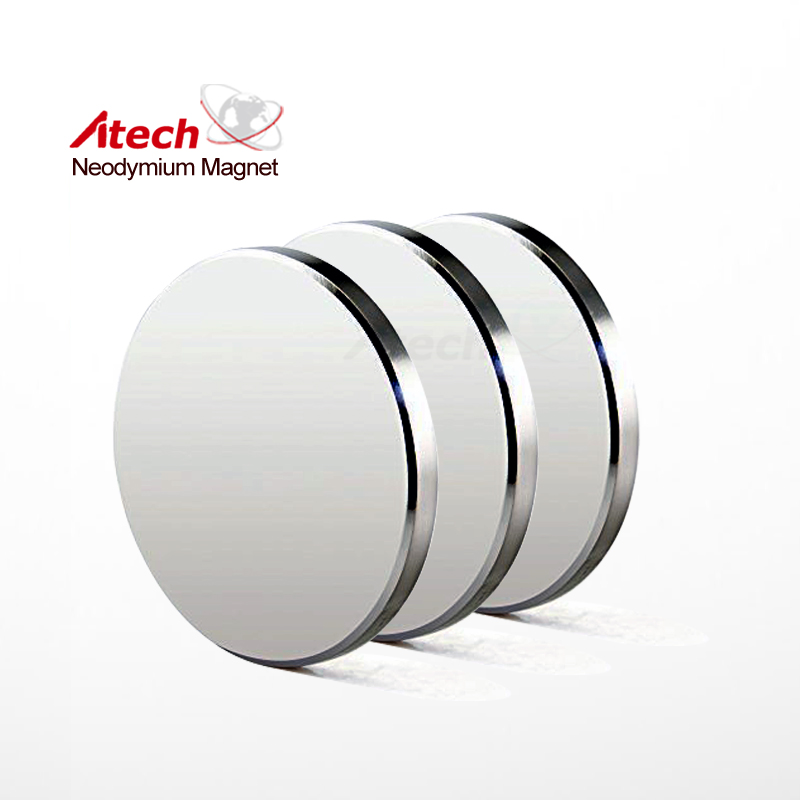

Nickel Coated N33M Neodymium Magnet Disc

Similar Products

Nickel Coated N45 Neodymium Magnet Cylinder MaterialNdFeBGradeN45Remanence Br（kGs）Max:13.8Min:13.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.6Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:46Min:43Max Temp (℃)8...
Cylinder Magnet N52 3/8” SKU Code: ATECHDI005 Dimensions: D3/8""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 7.7 gBr Max/Gauss rating: 14800 GSMax ...
Custom Circle Magnets 3/4 inch x 3/4 inch N42 Strong Round Magnets Disc SKU Code:ATECHDI019 Dimensions: D3/4""x 3/4""Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 25 gBr Max/Gauss rating: 13200 GSMax Ope...

Nickel Coated N33M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N33M Neodymium Magnet Disc is up to 100 degrees C.

Material	NdFeB
Grade	N33M
Remanence Br（kGs）	Max:11.7 Min:11.3
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10.5
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:33 Min:31
Max Temp (℃)	100
