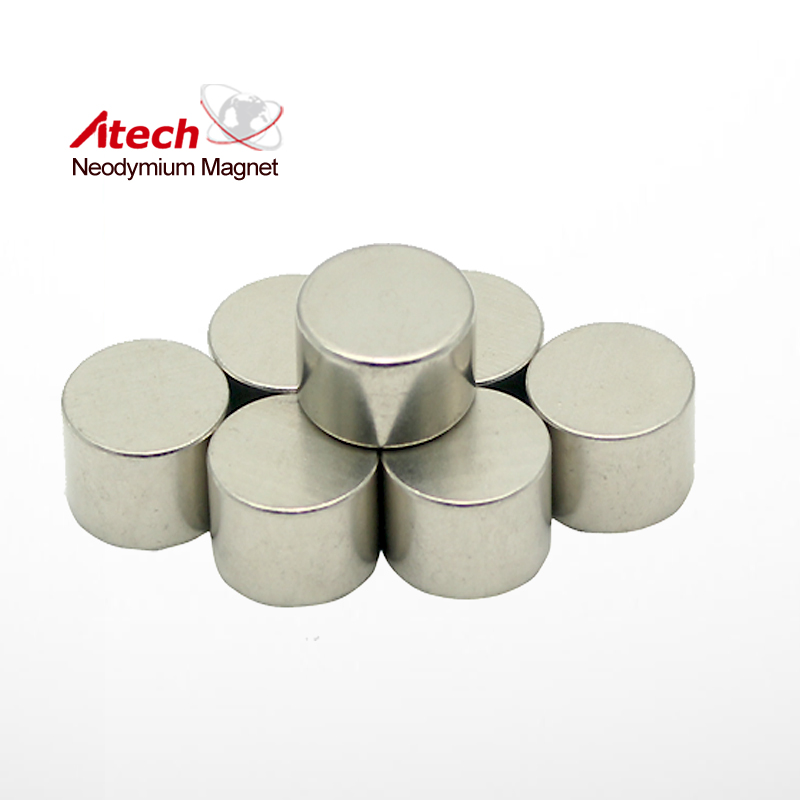

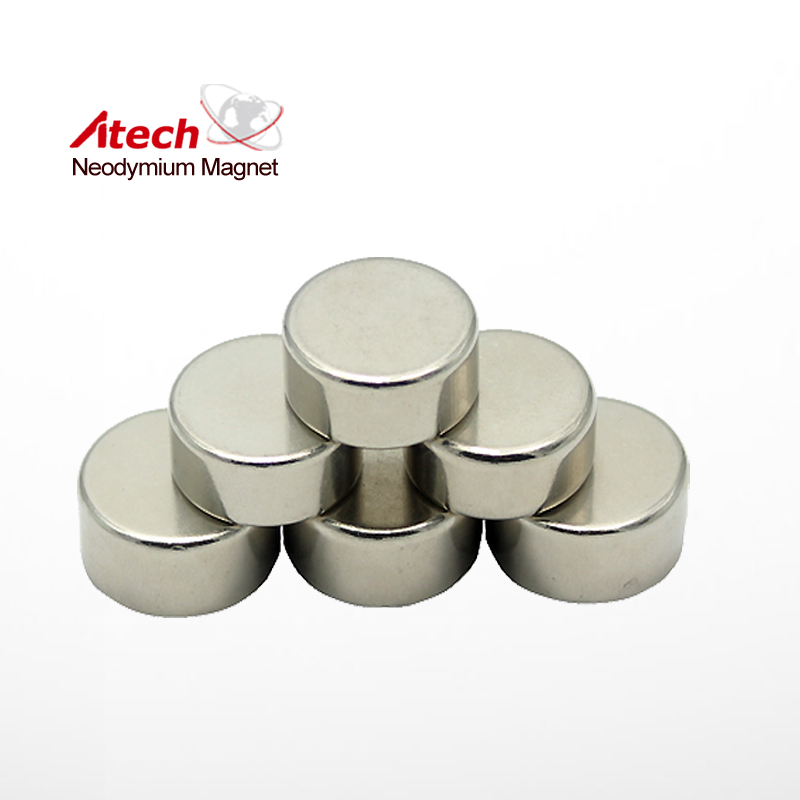

Nickel Coated N30H Neodymium Magnet Disc

Similar Products

Nickel Coated N35M Neodymium Magnet Cylinder MaterialNdFeBGradeN35MRemanence Br（kGs）Max:12.2Min:11.7PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.10.9Intrinsic Coercive force (kOe) Min.14Max energy product (MGOe)Max:36Min:33Max Temp (℃)...
Nickel Coated N38M Neodymium Magnet Cylinder MaterialNdFeBGradeN38MRemanence Br（kGs）Max:12.5Min:12.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.3Intrinsic Coercive force (kOe) Min.14Max energy product (MGOe)Max:39Min:36Max Temp (℃)...
Nickel Coated N48 Neodymium Magnet Cylinder MaterialNdFeBGradeN48Remanence Br（kGs）Max:14.2Min:13.8PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.6Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:49Min:46Max Temp (℃)8...

Nickel Coated N30H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N30H Neodymium Magnet Disc is up to 120 degrees C.

Material	NdFeB
Grade	N30H
Remanence Br（kGs）	Max:11.3 Min:10.8
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:31 Min:28
Max Temp (℃)	120

Application Area
