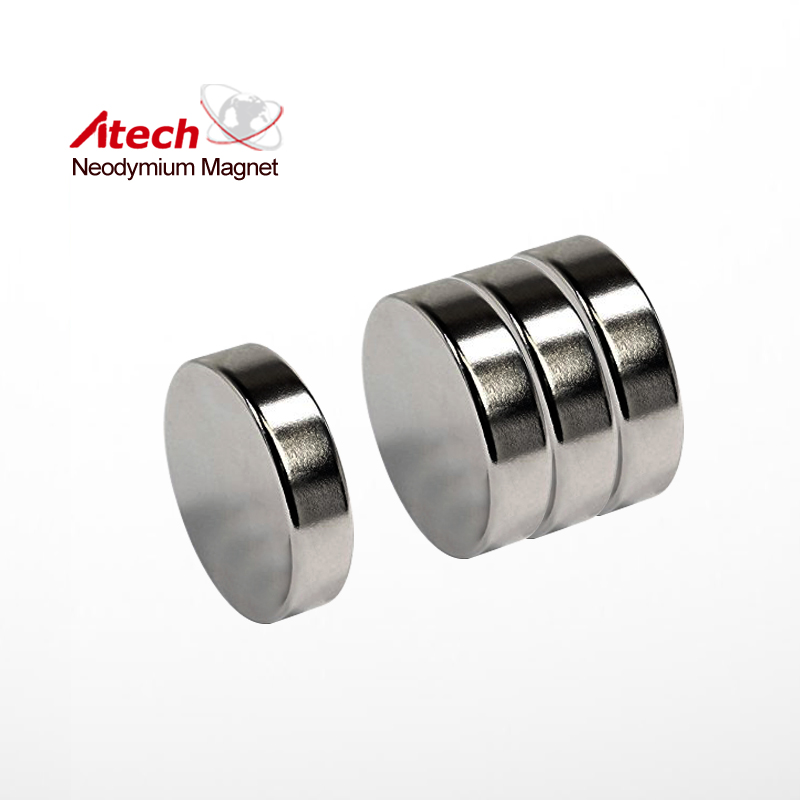

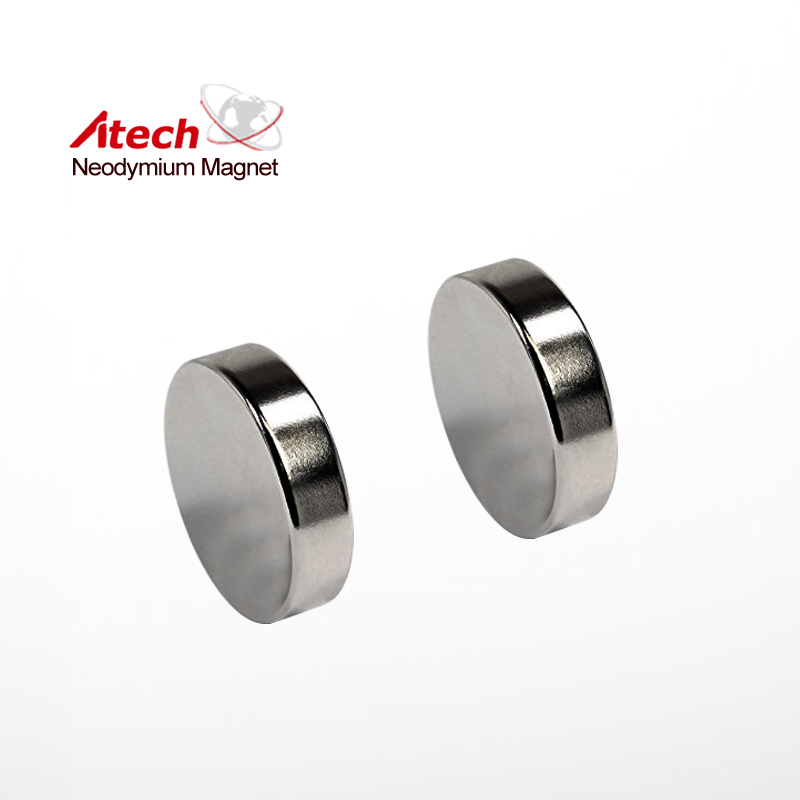

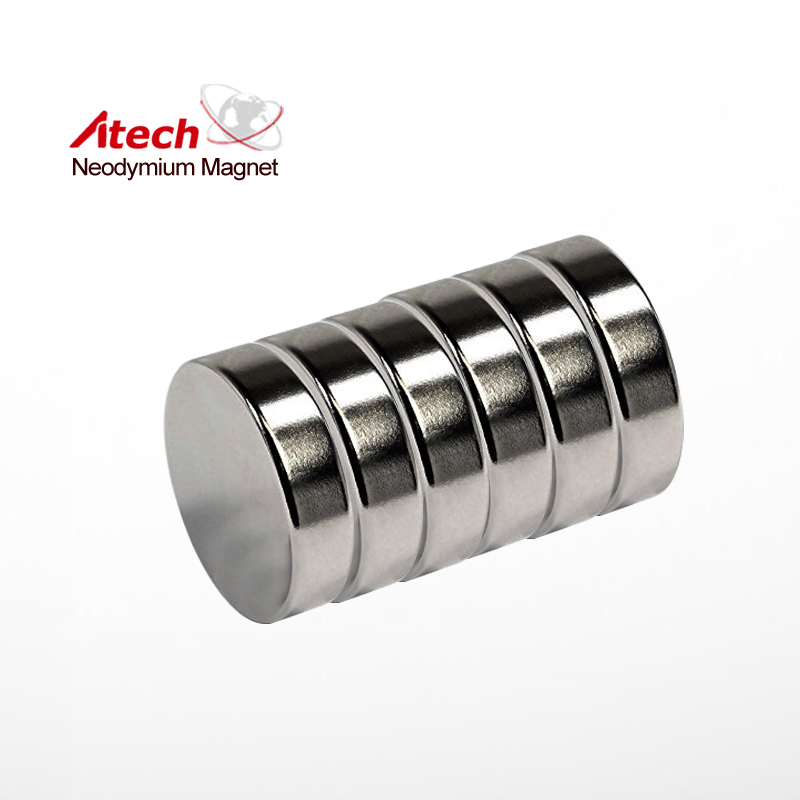

Nickel Coated N35H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N35H Neodymium Magnet Disc is up to 120 degrees C.

Material	NdFeB
Grade	N35H
Remanence Br（kGs）	Max:12.2 Min:11.7
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10.9
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:36 Min:33
Max Temp (℃)	120
