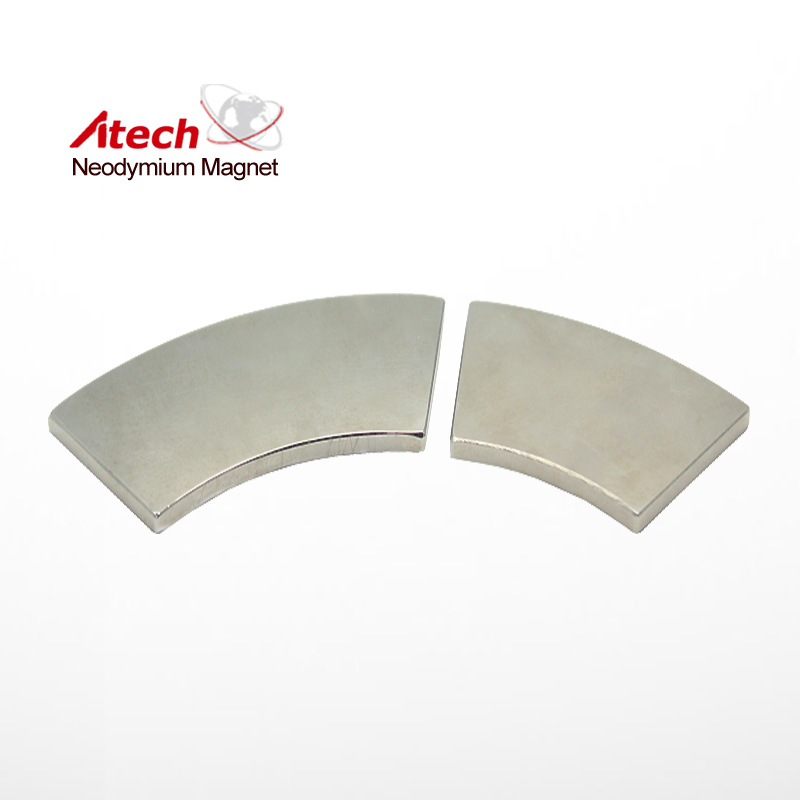

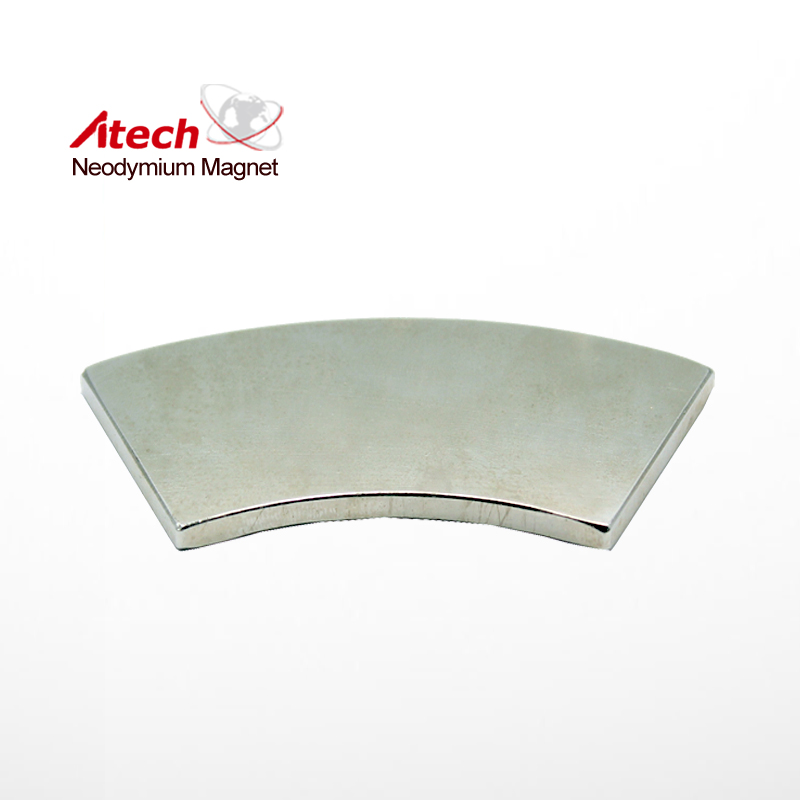

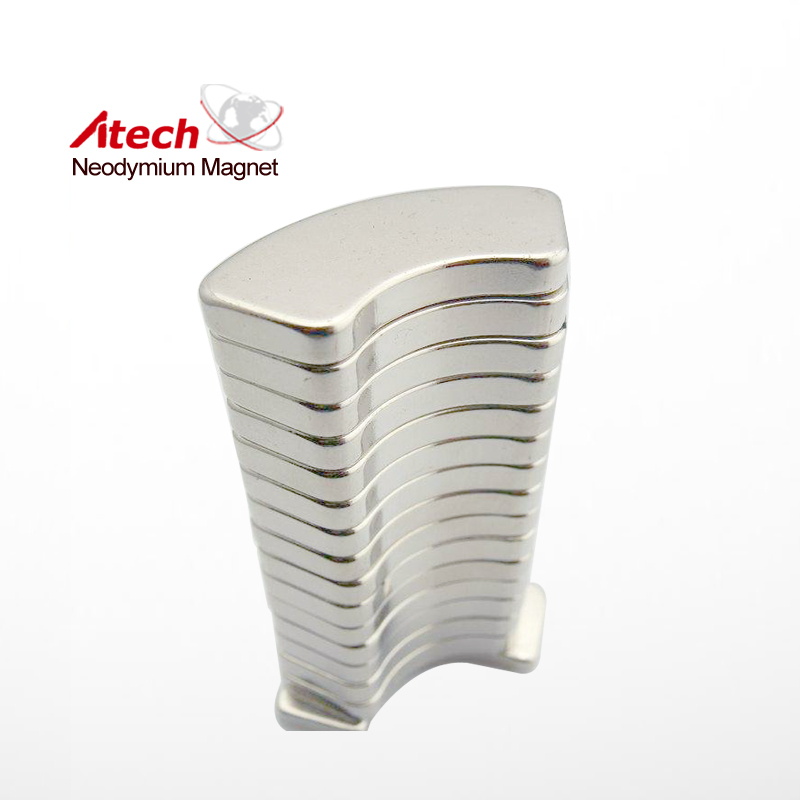

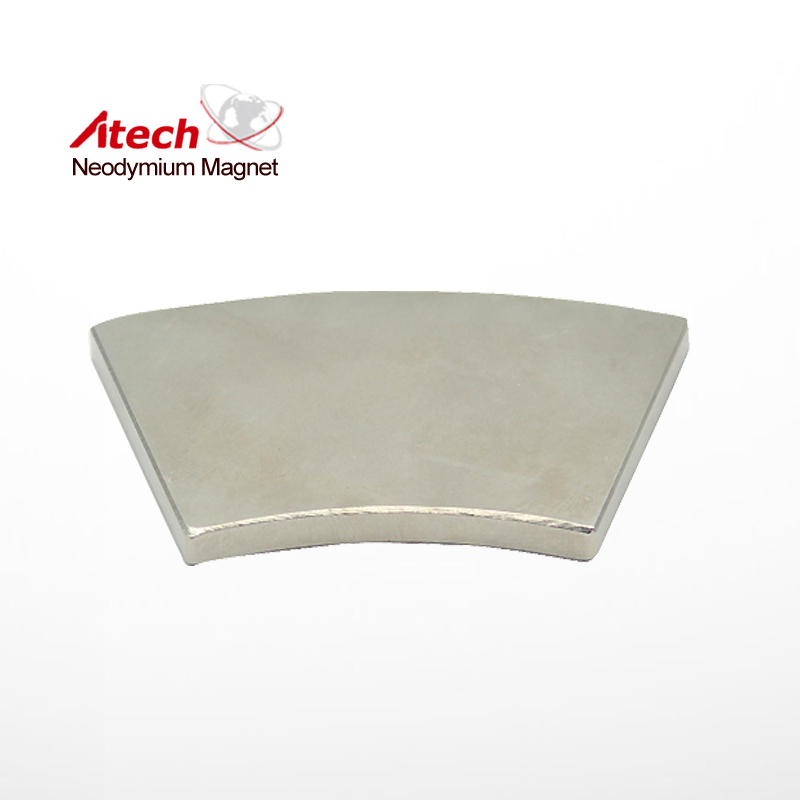

Nickel Coated N33M Neodymium Magnet Segment

Similar Products

N42 1/8 inch x1/8 inch x1/16 inch Neodymium Rare Earth Block Magnet SKU Code: ATECHBL001 Dimensions: 1/8""x1/8""x1/16"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 0.480 gBr Max/Gauss ra...
Magnetic Plate 1/2 inch x1/4 inch x1/16 inch Neodymium Block Magnet Oil Filter Magnet SKU Code: ATECHBL004 Dimensions: 1/2""x1/4""x1/16"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 50 gBr Max/Gauss ratin...
Nickel Coated N35M Neodymium Magnet Disc Nickel Coated N35M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...

Material	NdFeB
Grade	N33M
Remanence Br（kGs）	Max:11.7 Min:11.3
Plating	Ni-Cu-Ni (Copper)
Shape	Segment
Coercive force(kOe) Min.	10.5
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:33 Min:31
Max Temp (℃)	100

Application Area
