Nickel Coated N40M Neodymium Magnet Disc
Magnetic solution
provider & manufacturing expert,
25 years of professional experience
Innovative solutions for sustainable developments toward a better world
Striving for excellence and continuous improvements to support your success

Nickel Coated N40M Neodymium Magnet Disc

Nickel Coated N40M Neodymium Magnet Disc
Similar Products
  • Gold Coated N42H Neodymium Magnet Cylinder
    Gold Coated N42H Neodymium Magnet Cylinder MaterialNdFeBGradeN42HRemanence Br(kGs)Max:13.2Min:12.8PlatingAu-Cu-Au (Gold)ShapeCylinderCoercive force(kOe) Min.12Intrinsic Coercive force (kOe) Min.17Max energy product (MGOe)Max:43Min:40Max Temp (℃)120
  • Nickel Coated N45M Neodymium Magnet Cylinder
    Nickel Coated N45M Neodymium Magnet Cylinder MaterialNdFeBGradeN45MRemanence Br(kGs)Max:13.8Min:13.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.12.5Intrinsic Coercive force (kOe) Min.14Max energy product (MGOe)Max:46Min:43Max Temp (℃)...
  • Nickel Coated N48 Neodymium Magnet Cylinder
    Nickel Coated N48 Neodymium Magnet Cylinder MaterialNdFeBGradeN48Remanence Br(kGs)Max:14.2Min:13.8PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.6Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:49Min:46Max Temp (℃)8...

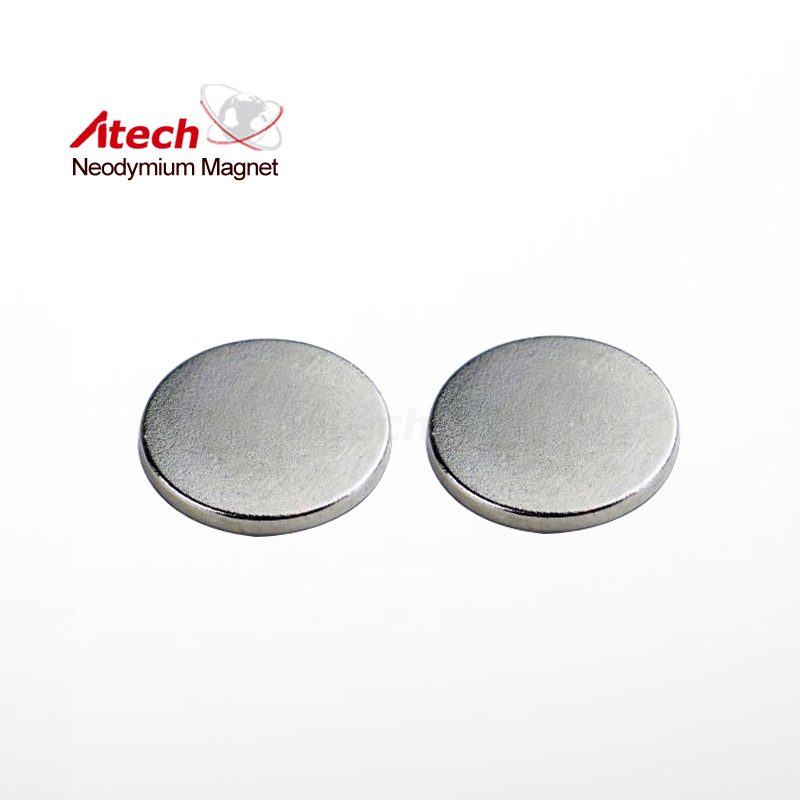

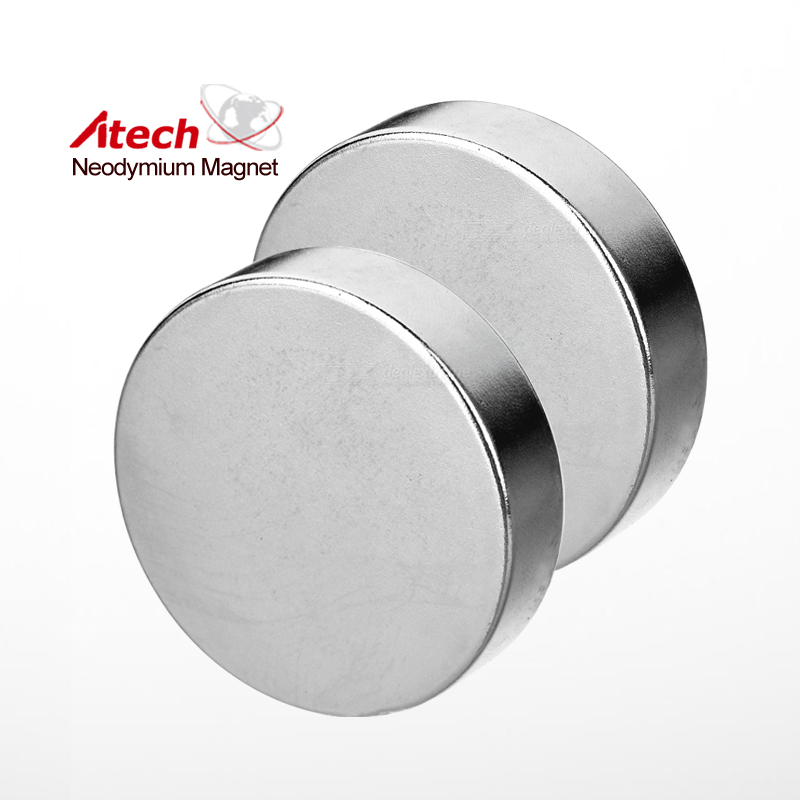

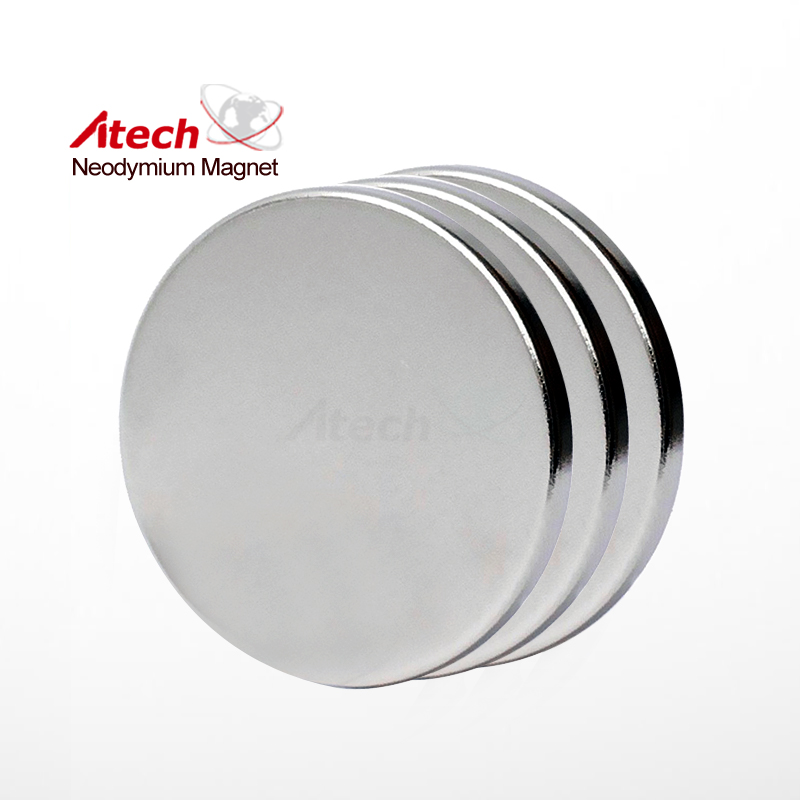

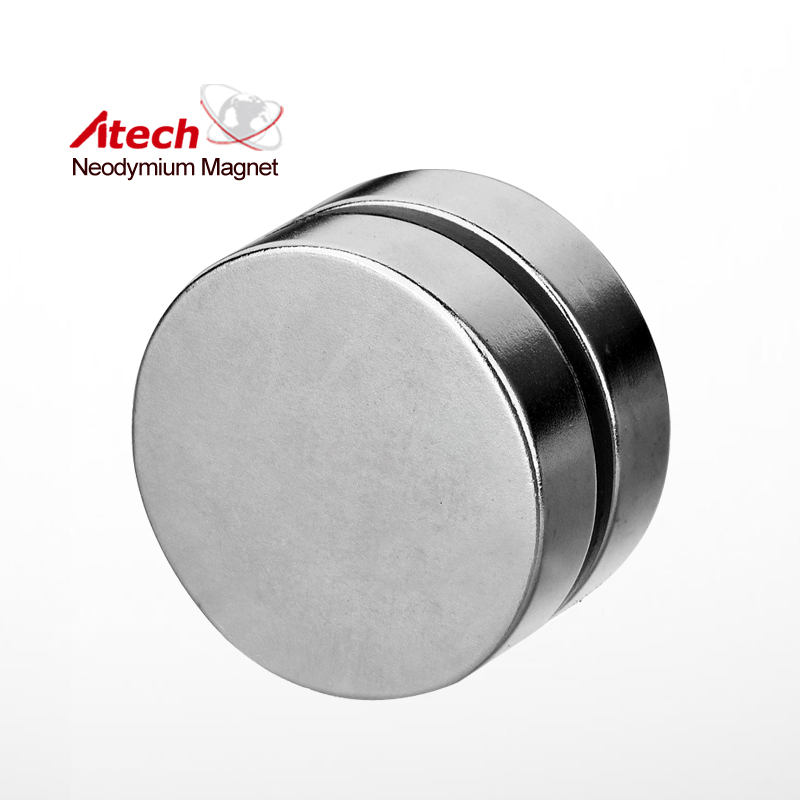

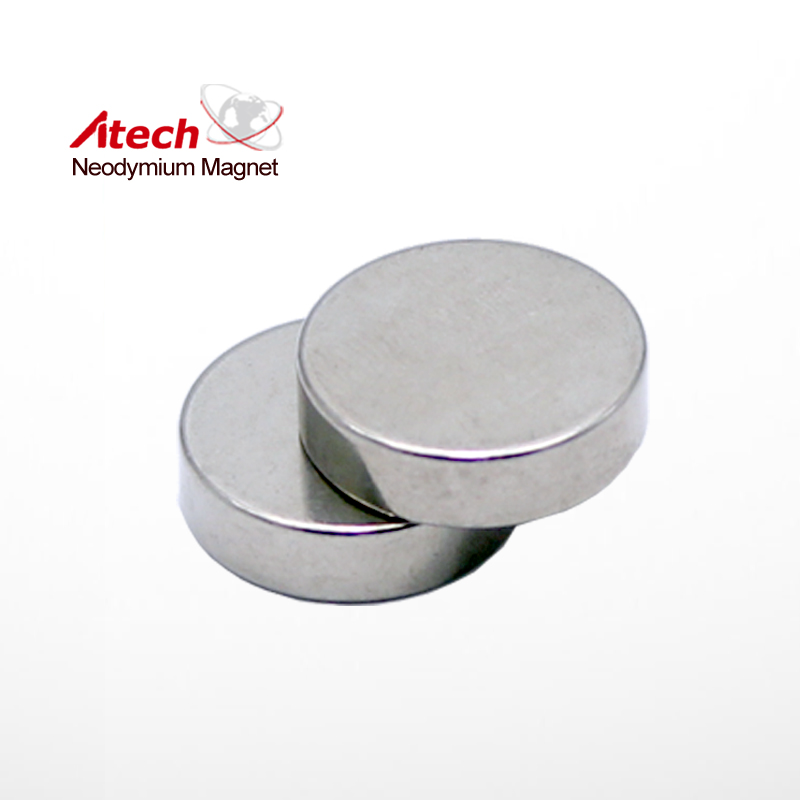

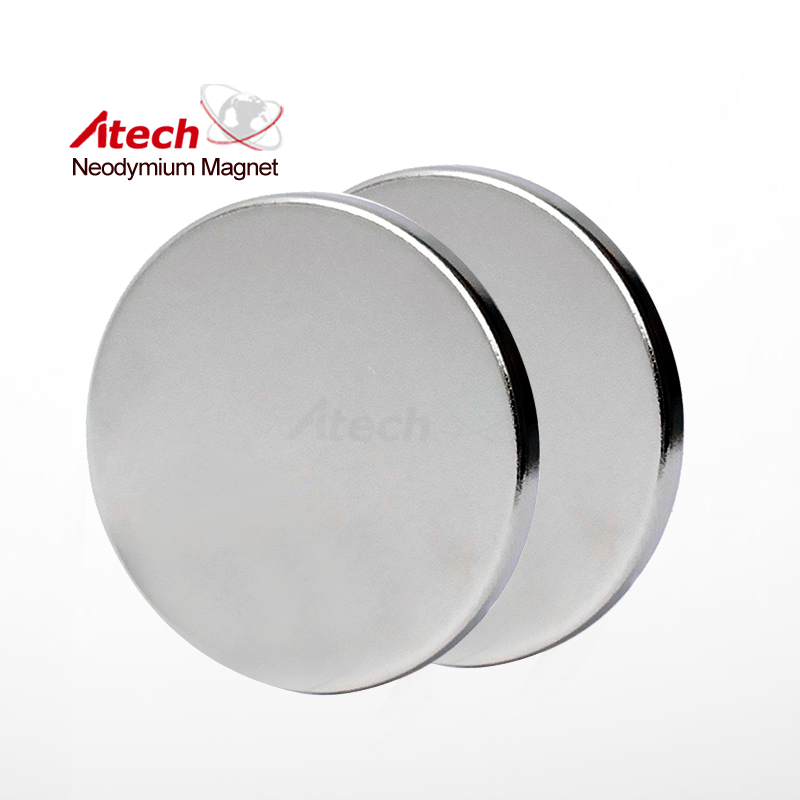

Nickel Coated N40M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N40M Neodymium Magnet Disc is up to 100 degrees C.

Material NdFeB
Grade N40M
Remanence Br(kGs) Max:12.8
Min:12.5
Plating Ni-Cu-Ni (Nickel)
Shape Disc
Coercive force(kOe) Min. 11.6
Intrinsic Coercive force (kOe) Min. 14
Max energy product (MGOe) Max:41
Min:38
Max Temp  (℃) 100
