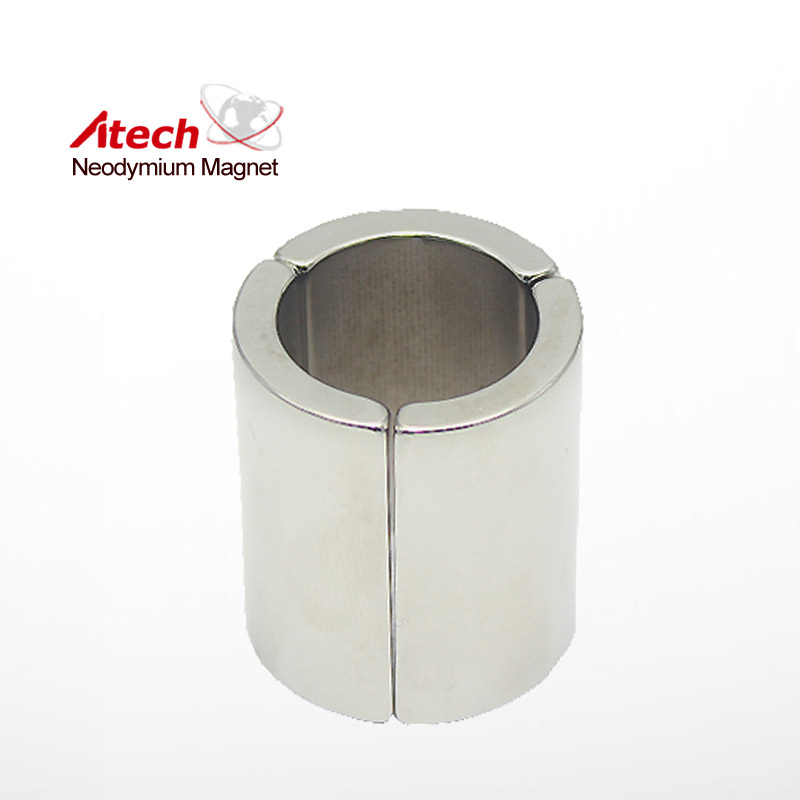

Nickel Coated N42 Neodymium Magnet Arc

Similar Products
  • Industrial Magnet N52 3/8”
    Industrial Magnet N52 3/8” SKU Code: ATECHDI004 Dimensions: D3/8""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.6 gBr Max/Gauss rating: 14800 GSMax ...
  • Nickel Coated N40 Neodymium Magnet Cylinder
    Nickel Coated N40 Neodymium Magnet Cylinder MaterialNdFeBGradeN40Remanence Br(kGs)Max:12.8Min:12.5PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.4Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:41Min:38Max Temp (℃)8...
  • Epoxy Coated N28AH Neodymium Magnet Segment
    Epoxy Coated N28AH Neodymium Magnet Segment MaterialNdFeBGradeN28AHRemanence Br(kGs)Max:10.9Min:10.4PlatingEpoxyShapeSegmentCoercive force(kOe) Min.9.9Intrinsic Coercive force (kOe) Min.35Max energy product (MGOe)Max:29Min:26Max Temp (℃)230

Nickel Coated N42 Neodymium Magnet Arc is made from high performance Neodymium Iron Boron. The maximum operating temperature is up to 80 degrees.

37.5 O.R x 33.5 I.R x 25 wide x 4mm thick N42 Neodymium Arc Magnet (South). The NORTH pole is on the outer radius and the SOUTH is on the inner radius. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni).

Material NdFeB
Grade N42
Plating Ni-Cu-Ni (Copper)
Shape Arc
Dimension 37.5 O.R x 33.5 I.R x 25 wide x 4mm
Magnetic Face 37.5 O.R x 33.5 I.R x 25
Max Temp 80

The maximum operating temperature of Nickel Coated N42 Neodymium Magnet Arc is up to 80 degrees C.
