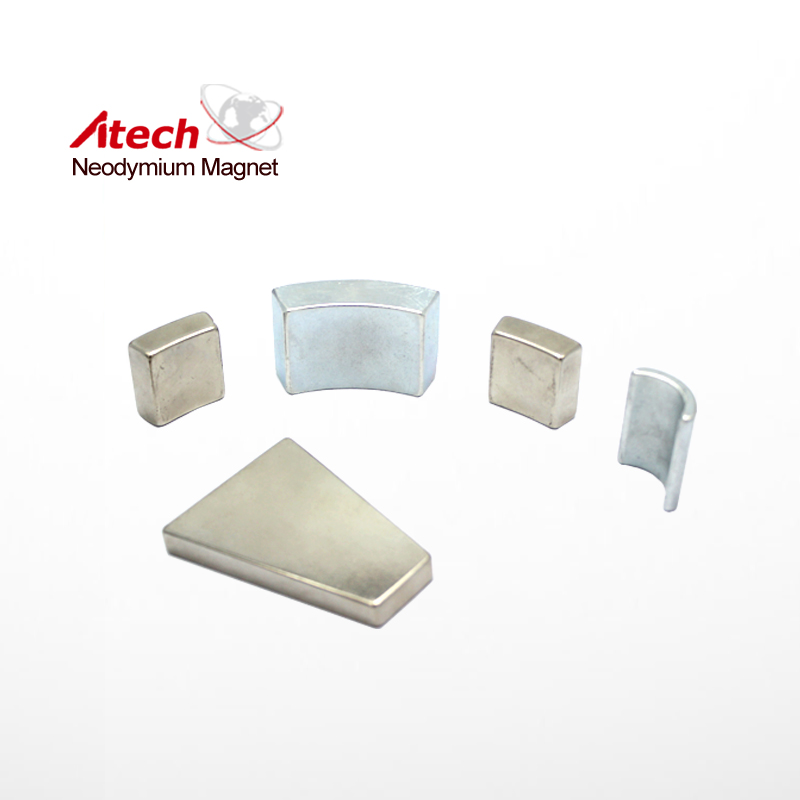

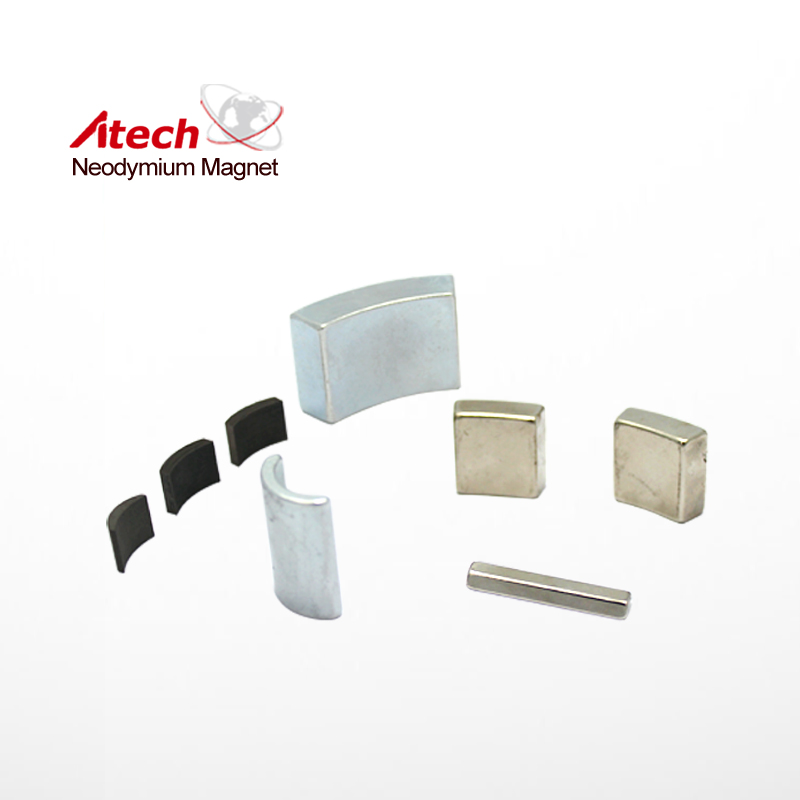

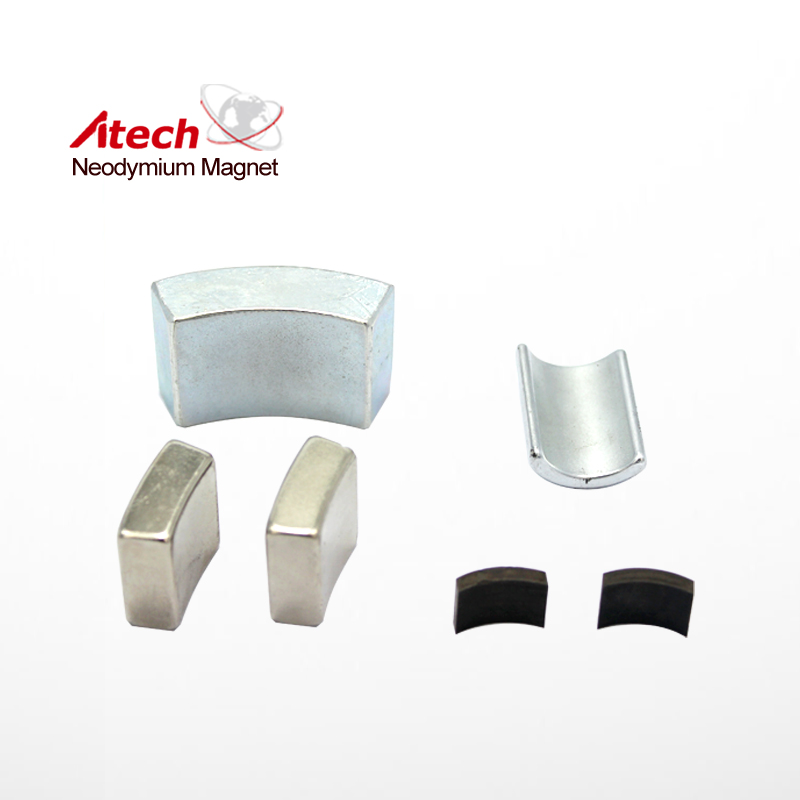

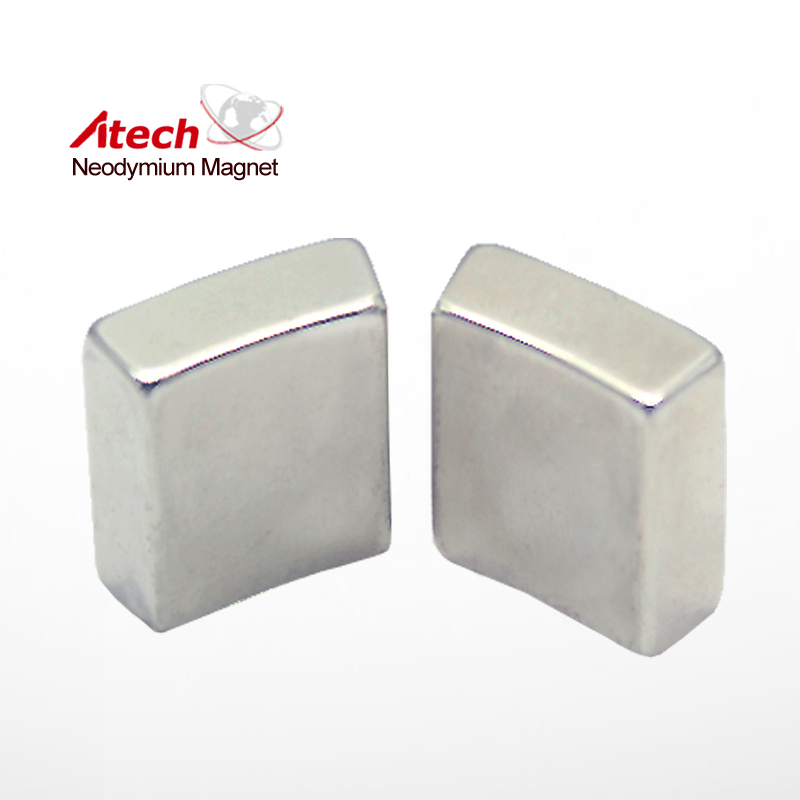

Nickel Coated N33AH Neodymium Magnet Segment

Similar Products

N52 1/2 inch OD x 1/4 inch ID x 1/8 inch Neodymium Rare Earth Ring Magnet SKU Code: ATECHRI001 Dimensions: 1/2"" OD x 1/4"" ID x 1/8"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxiallyWeight: 0.480 gBr Max/Gauss rating:...
Sphere magnet 1/8 inch Neodymium Magnet Grade N42 SKU Code: ATECHSP001 Dimensions: 1/8"Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: DiamatricallyWeight: 0.480 gBr Max/Gauss rating: 13200 GSMax Opera...
Circle Magnet 1/2 SKU Code: ATECHDI010 Dimensions: D1/2""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Ope...

Material	NdFeB
Grade	N33AH
Remanence Br（kGs）	Max:11.7 Min:11.3
Plating	Ni-Cu-Ni (Copper)
Shape	Segment
Coercive force(kOe) Min.	10.6
Intrinsic Coercive force (kOe) Min.	35
Max energy product (MGOe)	Max:34 Min:31
Max Temp (℃)	230

Application Area
