Nickel Coated N52 Neodymium Magnet Disc

Similar Products

Gold Coated N42H Neodymium Magnet Cylinder MaterialNdFeBGradeN42HRemanence Br（kGs）Max:13.2Min:12.8PlatingAu-Cu-Au (Gold)ShapeCylinderCoercive force(kOe) Min.12Intrinsic Coercive force (kOe) Min.17Max energy product (MGOe)Max:43Min:40Max Temp (℃)120
Zinc Coated N45H Neodymium Magnet Disc Zinc Coated N45H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated w...
Imanes De Neodimio 1 inch x 1 inch N52 Large Magnet Round SKU Code: ATECHDI025Dimensions: D1""x 1""Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 50 gBr Max/Gauss rating: 14800 GSMax Operati...

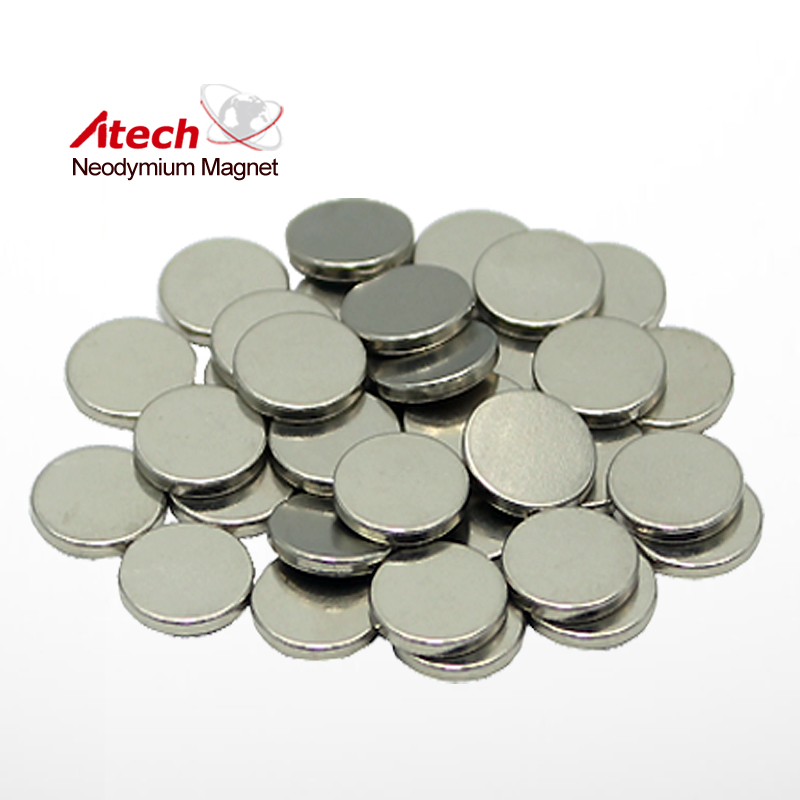

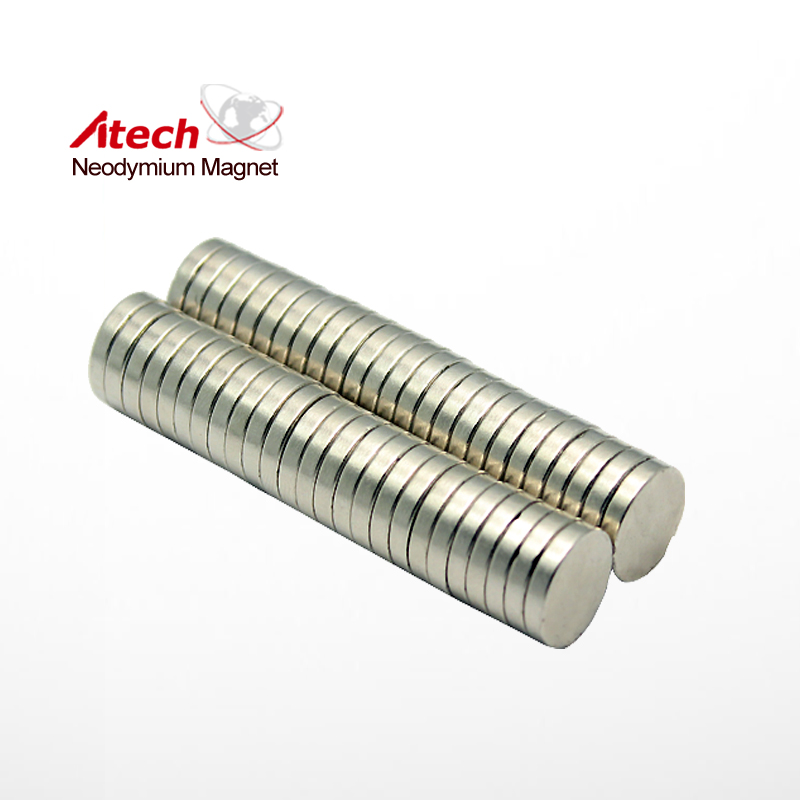

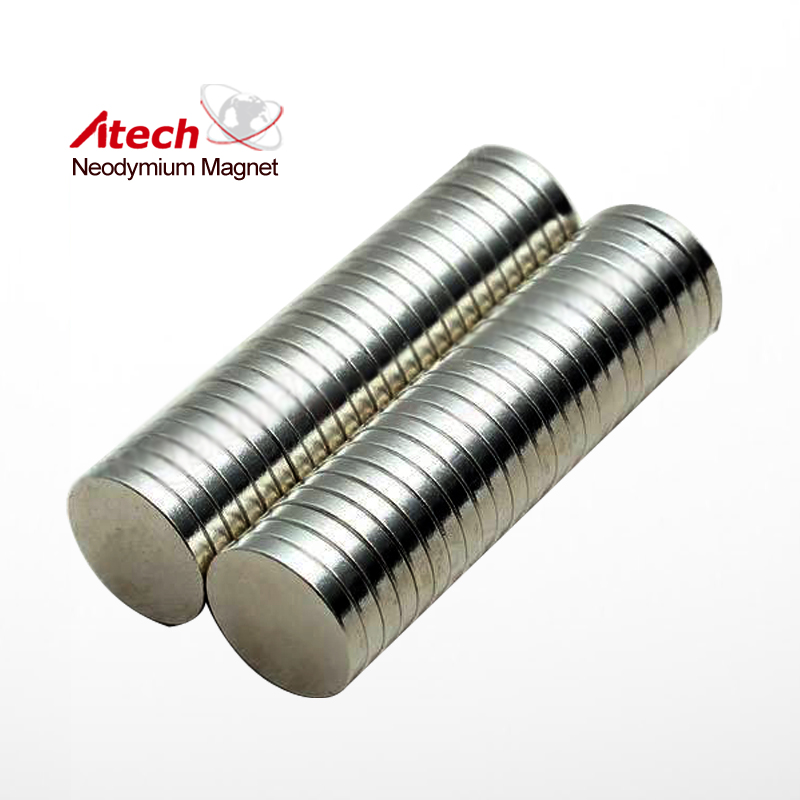

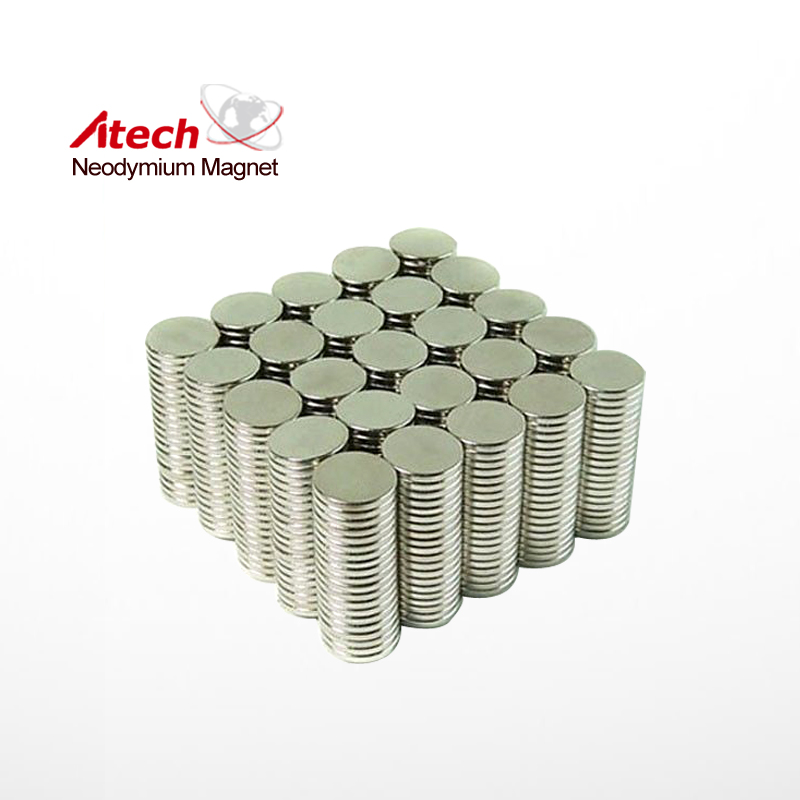

Nickel Coated N52 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N52 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N52
Remanence Br（kGs）	Max:14.8 Min:14.3
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10
Intrinsic Coercive force (kOe) Min.	11
Max energy product (MGOe)	Max:53 Min:50
Max Temp (℃)	80

Application Area
